Sony STR-K790 - Page 6

6
STR-K790
US, Canadian models

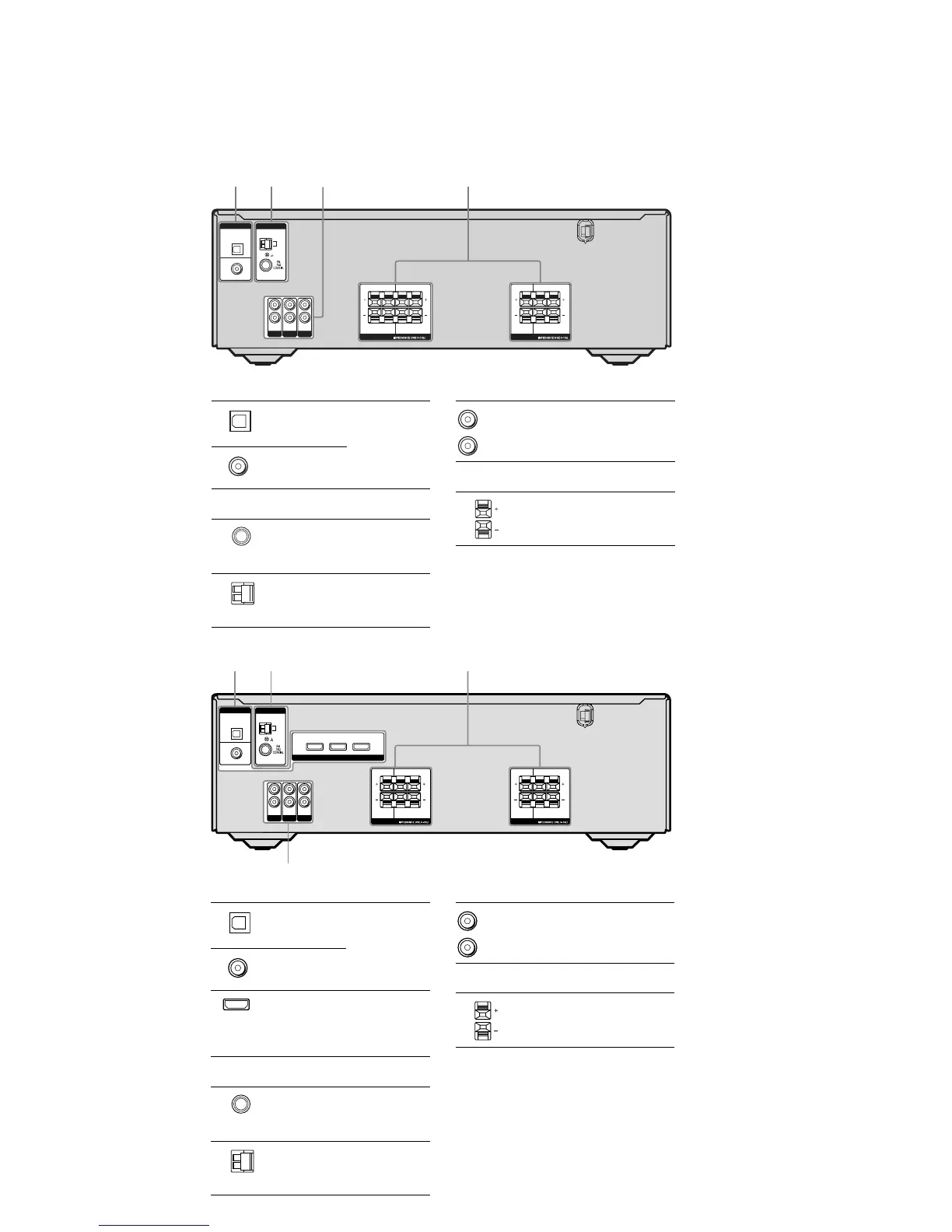

Rear panel
*The numbers of the SUB WOOFER terminals
varies depending on the models.
1 2
43
SUB
WOOFER
SURROUND
DVD
IN
DIGITAL
OPTICAL
VIDEO 2/
BD IN
COAXIAL
ANTENNA
LR
LR
AM
SA-CD / CD
L
R
AUDIO IN
TV
AUDIO IN
SAT
AUDIO IN
SPEAKERS
FRONTCENTER
LR
LR
SPEAKERS
A DIGITAL INPUT section
OPTICAL
IN jack
Connects to a DVD
player, etc. The
COAXIAL jack
provides a better
quality of loud
sound.
COAXIAL IN
jack
B ANTENNA section
FM
ANTENNA
jack
Connects to the
FM wire antenna
supplied with this
receiver.
AM
ANTENNA
terminals
Connects to the
AM loop antenna
supplied with this
receiver.
C AUDIO INPUT section
AUDIO IN
jacks
Connects to a CD
player, etc.
D SPEAKER section
Connects to the
speakers and sub
woofer*.
White (L)
Red (R)
AEP, UK models
*You can watch the selected input image when you
connect the HDMI OUT jack to a TV or projector.
VIDEO 2 /BD INDVD IN OUT
HDMI
1 2
3
4
DVD
IN
DIGITAL
OPTICAL
VIDEO 2/
BD IN
COAXIAL
ANTENNA
AM
SA-CD
/
CD
L
R
AUDIO IN
TV
AUDIO IN
SAT
AUDIO IN
FRONTCENTER
LR
LR
SPEAKERS
SURROUND
SUB
WOOFER
LR
LR
SPEAKERS
A DIGITAL INPUT section
OPTICAL
IN jack
Connects to a DVD
player, etc. The
COAXIAL jack
provides a better
quality of loud
sound.
COAXIAL IN
jack
HDMI IN/
OUT jacks*
Connects to a DVD
player, etc. The
image and the
sound are output to
a TV or a projector.
B ANTENNA section
FM
ANTENNA
jack
Connects to the
FM wire antenna
supplied with this
receiver.
AM
ANTENNA
terminals
Connects to the
AM loop antenna
supplied with this
receiver.
C AUDIO INPUT section
AUDIO IN
jacks
Connects to a CD
player, etc..
D SPEAKER section
Connects to the
speakers and sub
woofer.
White (L)
Red (R)
