STR-KM2/KM3
5

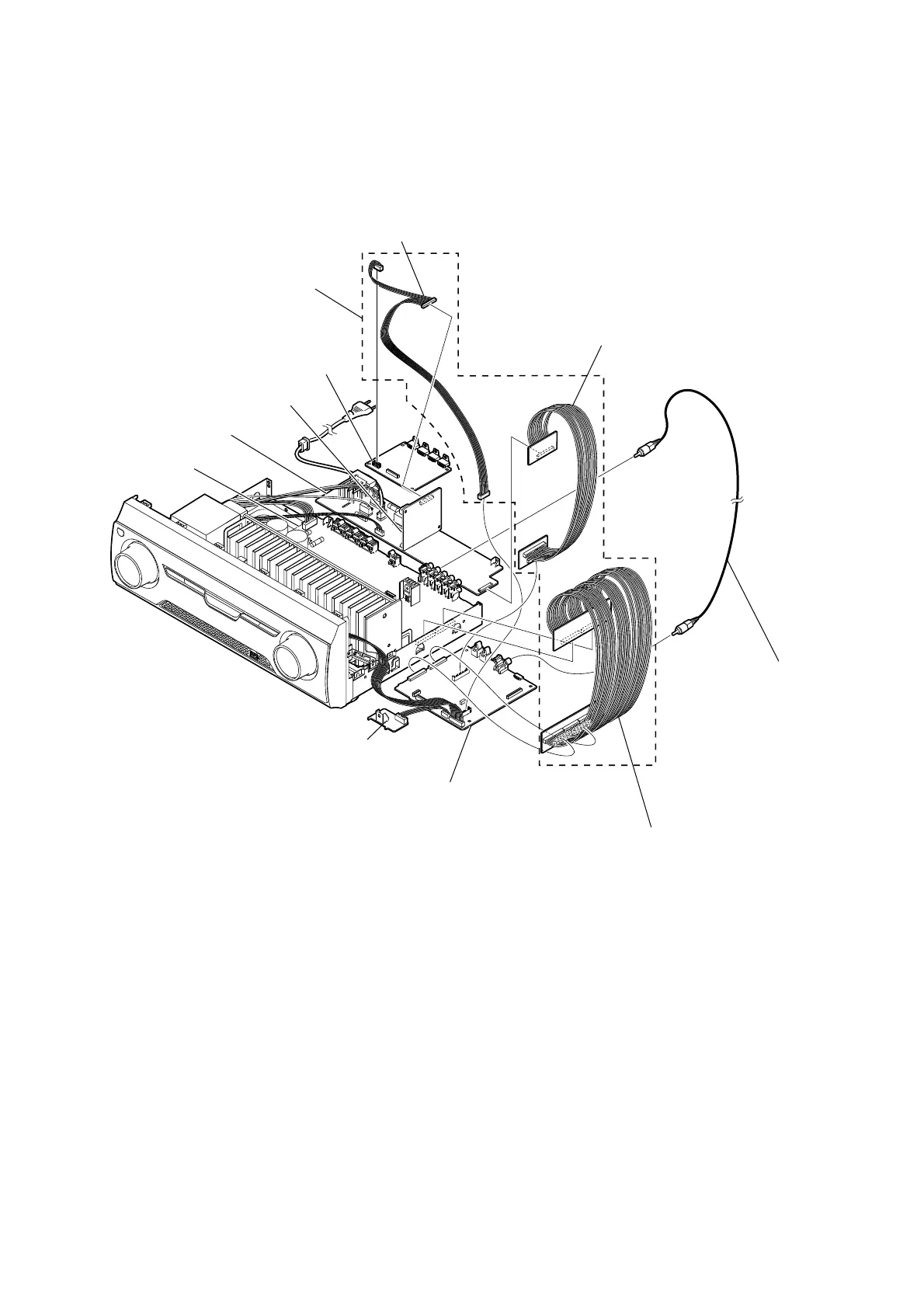

MICOM (IC2105) ON DIGITAL AUDIO BOARD SERVICE POSITION
• In checking the MICOM (IC2105) on the DIGITAL AUDIO board, prepare a set of extension jigs (A-1870-129-A) which consists of
three extension cables and one RCA cord / audio cord (for grounding purpose).
HDMI RE board (KM3)
Extension jigs
(A-1870-129-A)
DCDC board
DIGITAL AUDIO board
THERMAL board
Connect jig to the HDMI RE board (CN3510 (5P)) (KM3),
DCDC board (CN1503 (13P)) and
DIGITAL AUDIO board (CN2502 (8P))
Connect jig to the POWER AVIDEO board (CN271 (12P)),
and DIGITAL AUDIO board (CN2103 (12P))
Connect jig to the MAIN board (CN300 (14P)), (CN301 (14P)) and
DIGITAL AUDIO board (CN2105 (14P)), (CN2104 (14P))
Connect RCA cord / audio cord to the
DIGITAL AUDIO board (J2301
(DIGITAL COAXIAL BD/DVD IN))
and MAIN board (J302
(VIDEO AUDIO OUT/IN))
MAIN board
POWER AVIDEO board
Ver. 1.1
