Sony STR-KM2 - Exploded View: Front Panel Section

59
STR-KM2/KM3

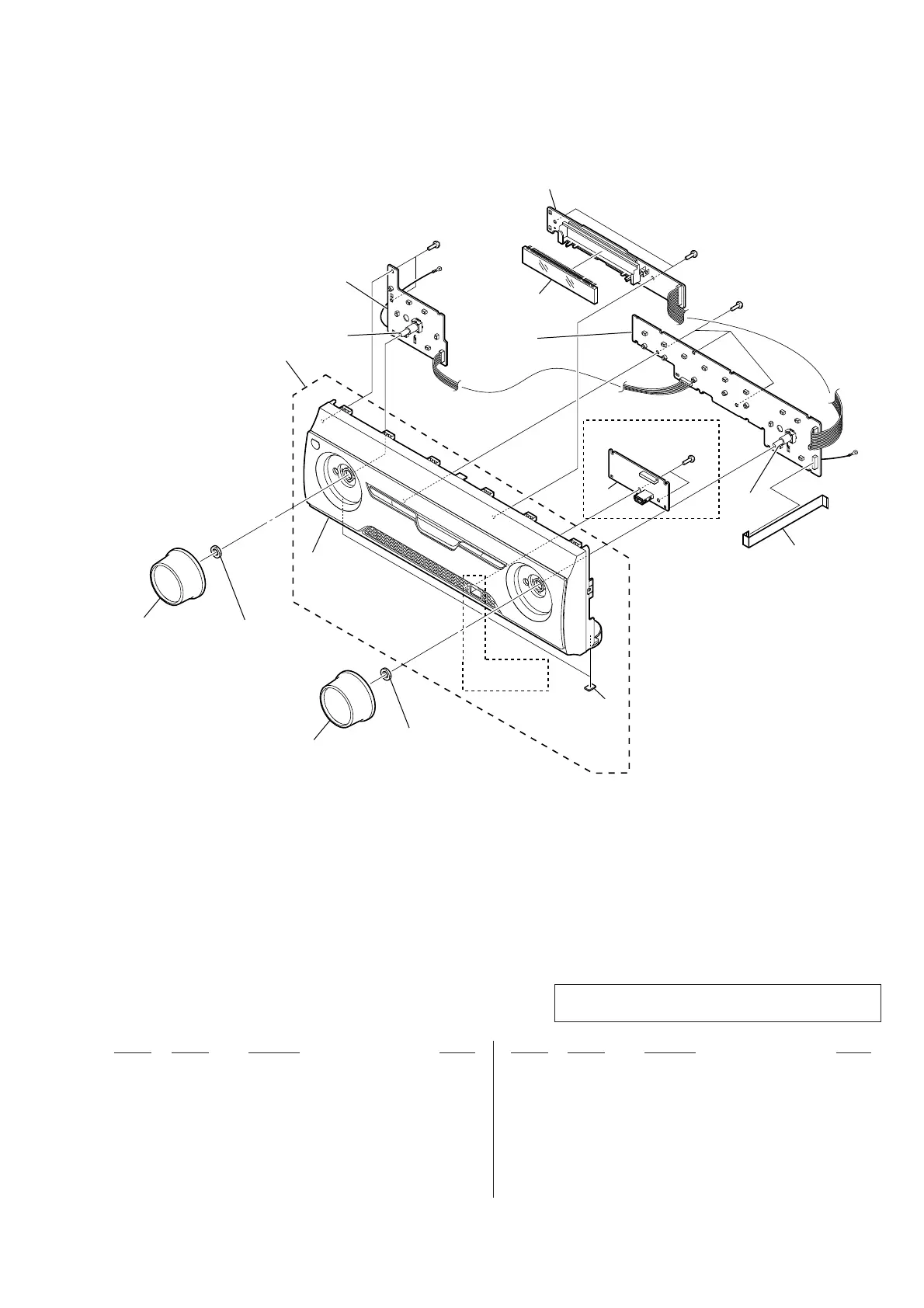

6-2. FRONT PANEL SECTION
51 4-299-199-01 KNOB, VOLUME
52 4-977-358-01 CUSHION
53 X-2583-084-3 FRONT PANEL ASSY (KM2: SAF, AR)
53 X-2583-098-3 FRONT PANEL ASSY (KM3: EXCEPT SAF, AR)
53 X-2583-103-3 FRONT PANEL ASSY (KM3: SAF, AR)
53 X-2583-126-3 FRONT PANEL ASSY (KM2: E51)
54 A-1851-779-A USB BOARD, COMPLETE (EXCEPT SAF, AR)
55 1-828-341-61 WIRE (FLAT TYPE) (15 CORE)
56 A-1851-750-A DISPLAY BOARD, COMPLETE
ND100 1-483-416-11 VACUUM FLUORESCENT DISPLAY
RV100 1-418-725-41 ENCODER, ROTARY (12 TYPE)
(INPUT SELECTOR)
RV101 1-418-725-41 ENCODER, ROTARY (12 TYPE)
(MASTER VOLUME)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
51
52
53
54
55
56
51
supplied with
RV101
supplied with
RV100
not supplied
#1
#1
#1
not supplied
(POWER KEY board)
not supplied
(LED BAR board)
ND100
RV100
RV101
(except SAF, AR)
(except SAF,
AR)
#1
Ver. 1.2
