STR-KM2/KM3

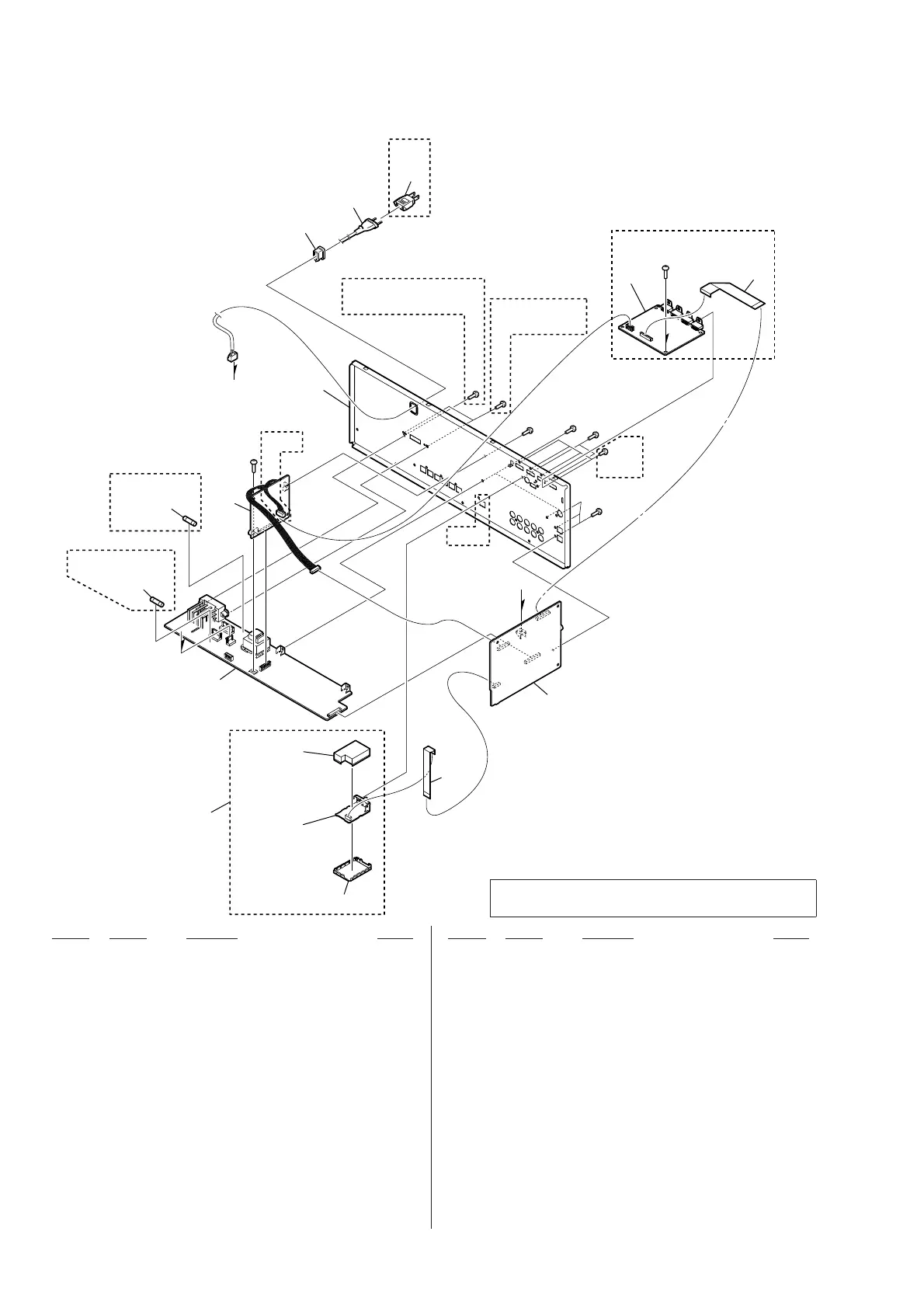

6-3. BACK PANEL SECTION
101 1-828-368-61 WIRE (FLAT TYPE) (21 CORE)
9
102 A-1846-040-A HDMI RE BOARD, COMPLETE (KM3)
103 A-2044-511-A DIGITAL AUDIO BOARD, COMPLETE (KM3)
103 A-2044-513-A DIGITAL AUDIO BOARD, COMPLETE (KM2)
104 1-828-310-61 WIRE (FLAT TYPE) (9 CORE)
105 A-1846-561-A TUNER1AMPR ASSY (EXCEPT MX)
105 A-1846-564-A TUNER1AMF ASSY (MX)
106 A-1852-373-A DCDC BOARD, COMPLETE
107 A-1852-100-A POWER AVIDEO BOARD, COMPLETE (KM3: SAF)
107 A-1852-109-A POWER AVIDEO BOARD, COMPLETE (TH, AUS)
107 A-1852-125-A POWER AVIDEO BOARD, COMPLETE (EA)
107 A-1852-233-A POWER AVIDEO BOARD, COMPLETE (KM3: E51)
107 A-1852-251-A POWER AVIDEO BOARD, COMPLETE (MX)
107 A-1852-264-A POWER AVIDEO BOARD, COMPLETE (KM3: AR)
107 A-1852-274-A POWER AVIDEO BOARD, COMPLETE (KM2: SAF)
107 A-1852-317-A POWER AVIDEO BOARD, COMPLETE (KM2: E51)
107 A-1852-339-A POWER AVIDEO BOARD, COMPLETE (KM2: AR)
107 A-1879-728-A POWER AVIDEO BOARD, COMPLETE (SP)
107 A-1887-724-A POWER AVIDEO BOARD, COMPLETE (RU)
0
108 4-966-267-12 BUSHING (FBS001), CORD
0
109 1-777-071-83 CORD, POWER (E51, SAF, RU, SP)
0
109 1-833-566-21 POWER-SUPPLY CORD (AUS)
0
109 1-834-288-21 POWER-SUPPLY CORD (TH)
0
109 1-835-078-31 CORD, POWER (EA)
0
109 1-837-312-11 CORD, POWER-SUPPLY (AR)
0
109 1-837-344-11 CORD, POWER-SUPPLY (MX)
0
110 1-785-504-21 ADAPTOR, CONVERSION (E51)
0
F901 1-532-465-32 FUSE (T3.15AL/250V) (EXCEPT RU, MX)
0
F902 1-532-505-32 FUSE (T5AL/250V) (E51, EA)
0
F902 1-532-506-32 FUSE (T6.3AL/250V) (MX)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-682-546-09 SCREW +B 3X5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
Ver. 1.3
