Sony STR-KM2 - Main Block Section Disassembly; Main and Thermal Board Disassembly

STR-KM2/KM3
8

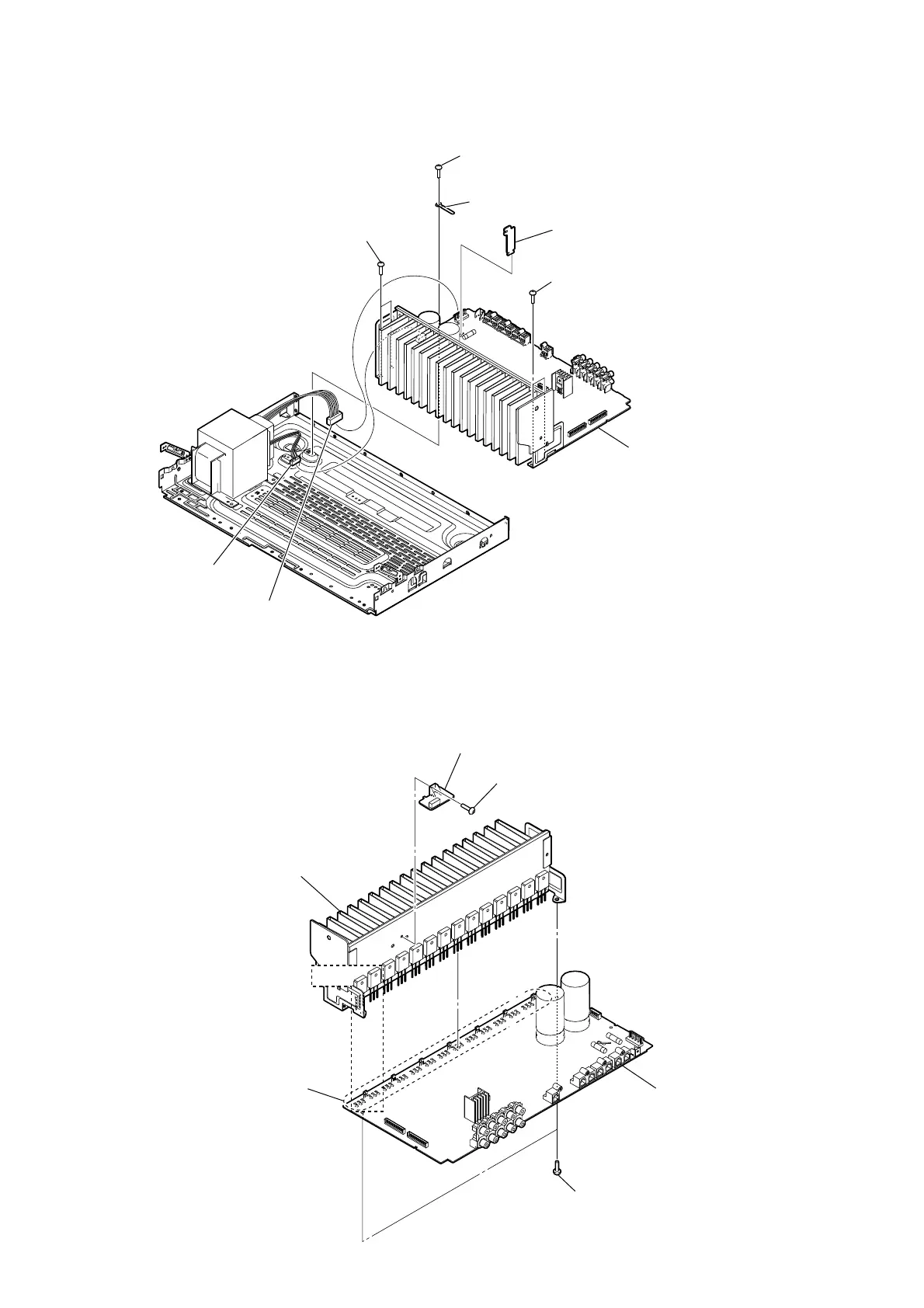

2-5. MAIN BLOCK SECTION
2-6. MAIN BOARD, THERMAL BOARD
4 one screw
(+BVTP 3 u 8)
6 two screws
(+BVTP 3 u 8)
1 LOCK board
8 MAIN block
2 CN951
(5P)
3 CN950
(5P)
7 two screws
(+BVTP 3 u 8)
5 clamp
6 heatsink block
4 two screws
(+BVTP 3 u 8)
5 MAIN board
3 Remove the thirty-six solders.
(KM2)
Remove the forty-two solders.
(KM3)
1 one screw
(+BVTP 3 u 8)
2 THERMAL board
(KM3)
