Sony STR-KM2 - Exploded View: Chassis Section

61
STR-KM2/KM3

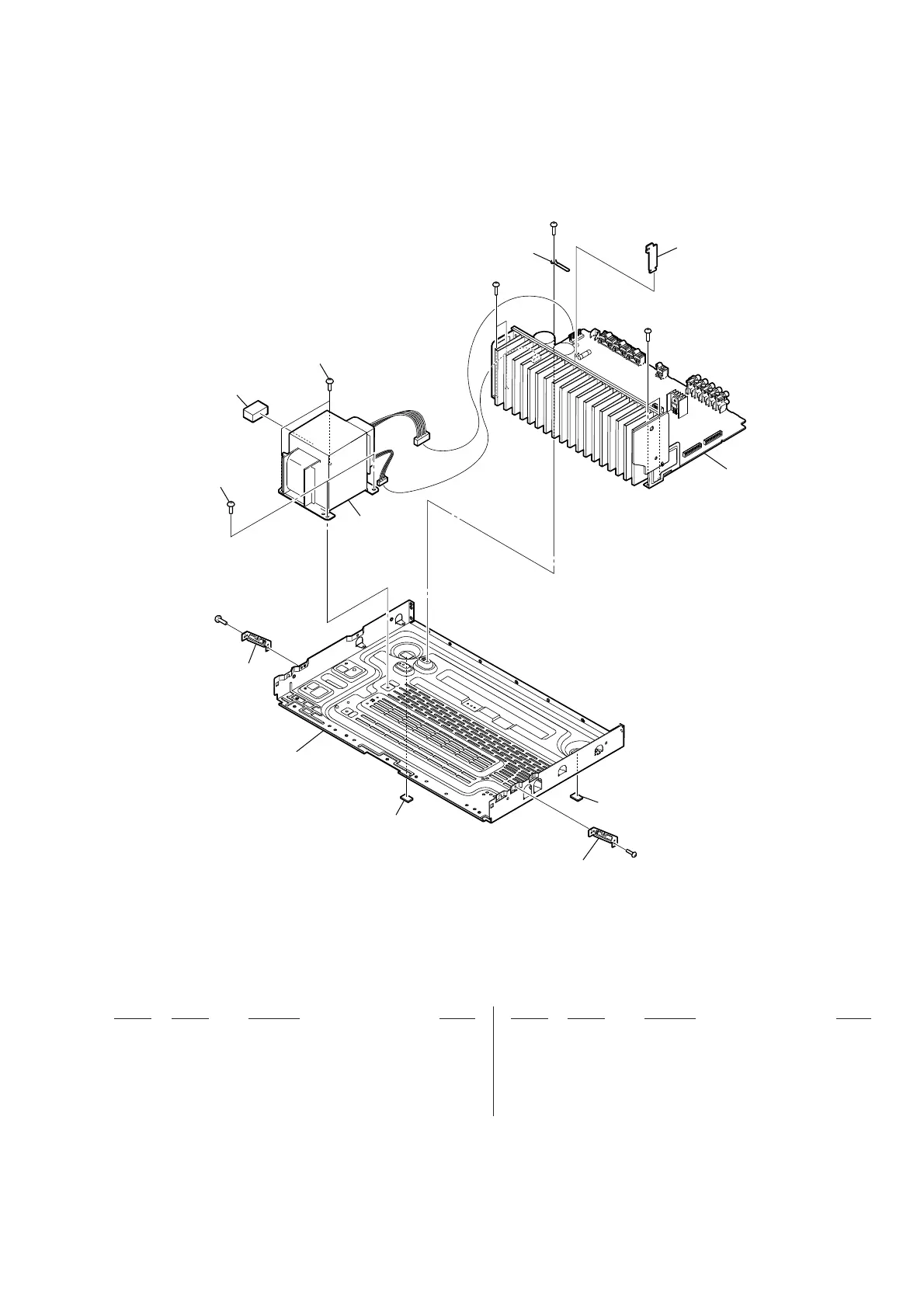

6-4. CHASSIS SECTION
*
151 3-703-150-11 CLAMP
152 4-249-675-01 +BV SUMITITE S 4X6 ROUND
153 4-977-358-01 CUSHION
0
T901 1-697-126-11 POWER TRANSFORMER (MAIN) (E51, EA)
0
T901 1-697-127-11 POWER TRANSFORMER (MAIN)
(EXCEPT E51, EA, MX)
0
T901 1-697-128-11 POWER TRANSFORMER (MAIN) (MX)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.1
not supplied
#1
#1
heatsink section
#1
not supplied
T901
151
152
152
153
153
#1
#1
not supplied
not supplied
not supplied
(LOCK board)
