Sony STR-KM2 - Front Panel Section Disassembly; Back Panel Section Disassembly

STR-KM2/KM3
7

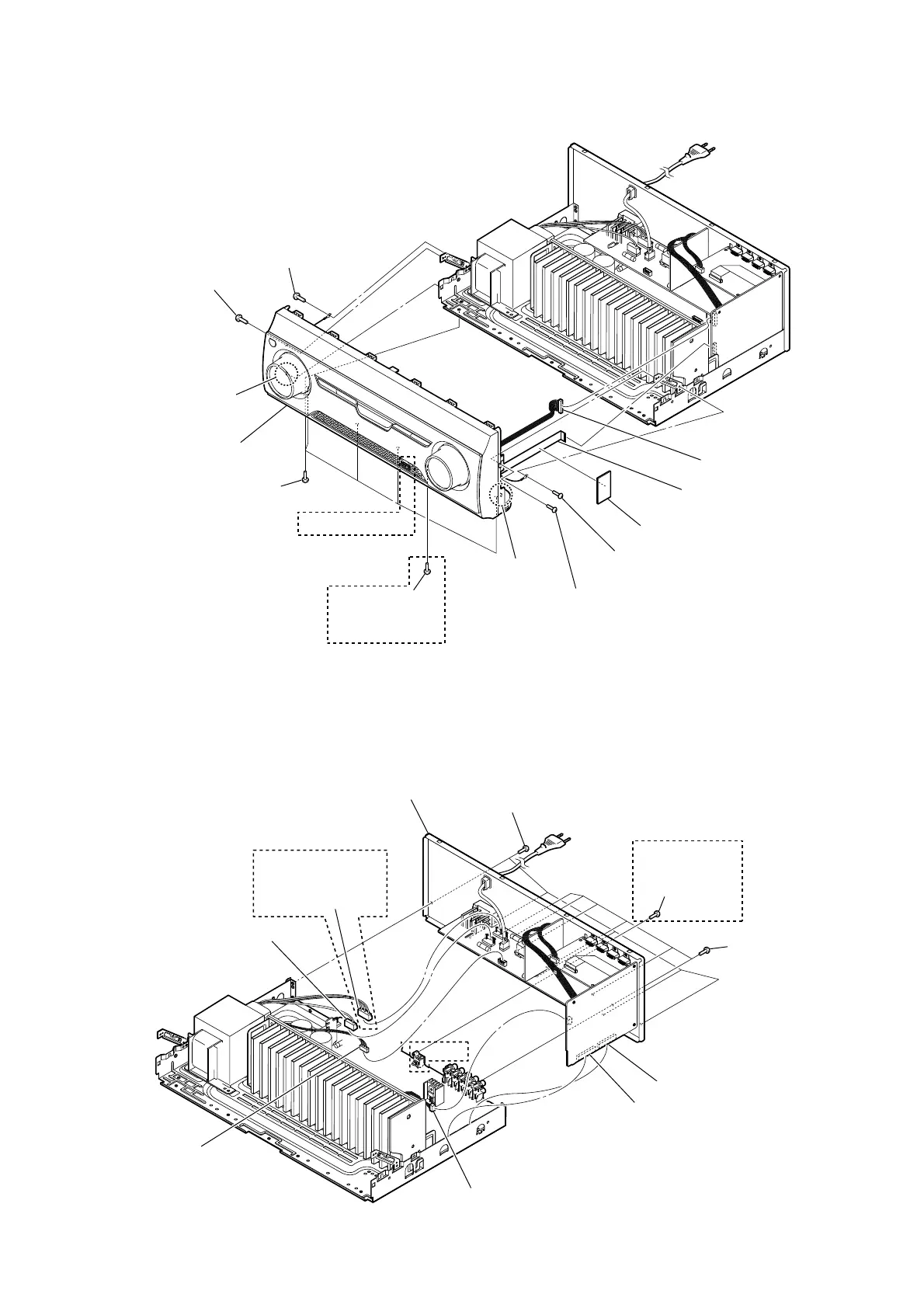

2-3. FRONT PANEL SECTION
2-4. BACK PANEL SECTION
1 CN2504 (13P)
3 wire (flat type)
(15 core) (CN2503)
2 saranet cushion
4 one screw
(+BVTP 3 u 8)
4 one screw
(+BVTP 3 u 8)
5 one screw
(+BVTP 3 u 8)
5 one screw
(+BVTP 3 u 8)
6 five screws
(+BVTP 3 u 8)
7 one screw
(+BVTP 3 u 8)
9 front panel block
8 claw
8 claw
(except SAF, AR)
(except SAF, AR)
• Abbreviation
AR : Argentina model
SAF : South African model
1 CN2501 (4P)
2 CN911 (4P)
3 CNP902 (4P)
4 CNP903 (3P)
5 five screws
(+BVTP 3 u 8)
6 six screws
(+BVTP 3 u 8)
7 one screw
(+BVTP 3 u 8)
(KM3)
(KM3)
(KM2: E51)
(KM3: E51, EA, MX)
0 back panel block
9 CN2104 (14P)
8 CN2105 (14P)
• Abbreviation
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
MX : Mexican model
