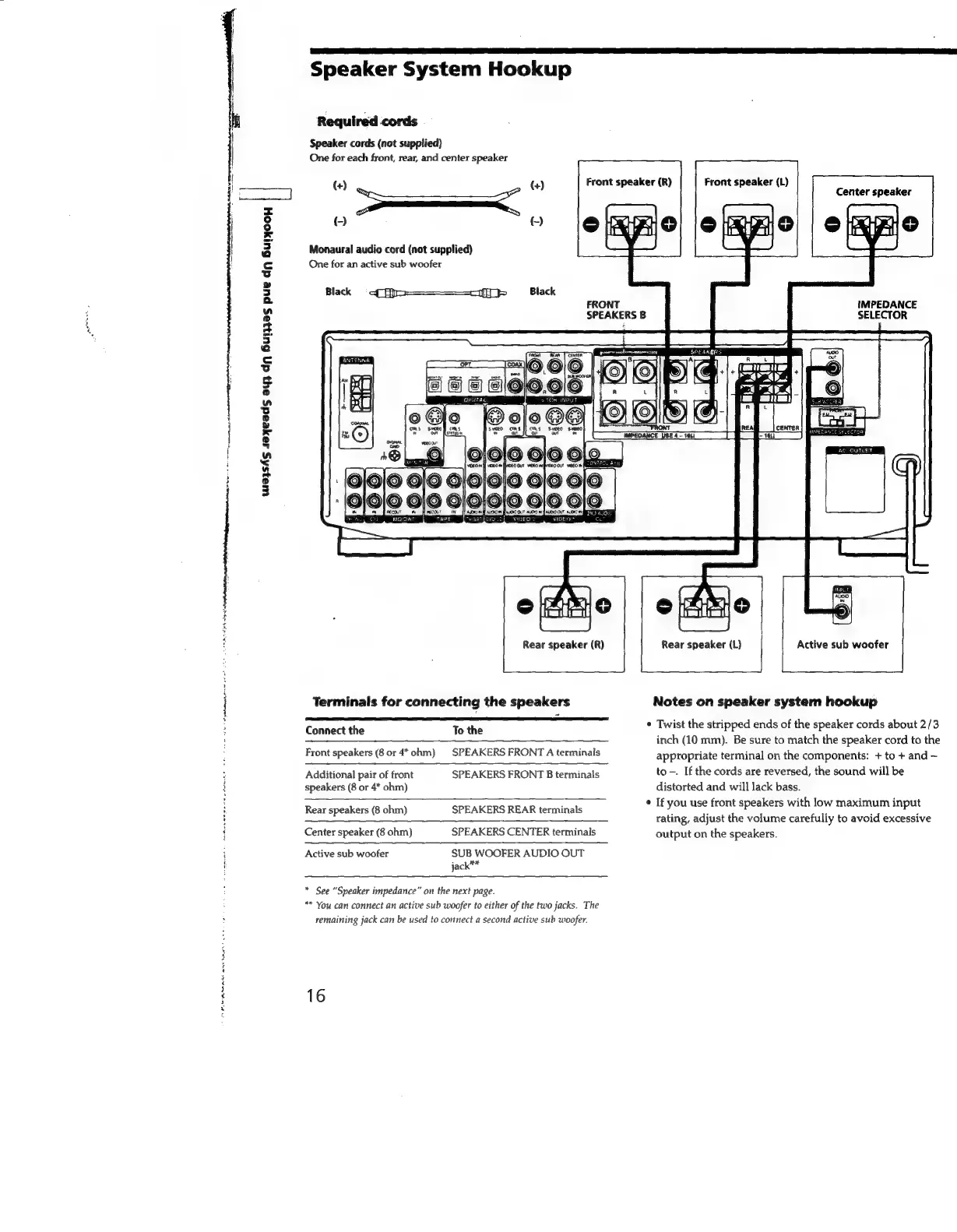

Speaker System Hookup
Required cords
Speaker cords (not supplied)
One for each front, rear, and center speaker
(+) ;
io) (-)
(+) Front speaker (R) Front speaker (L)
Center speaker
Monaural audio cord (not supplied)
One for an active sub woofer
Black = CR} HT Black
FRONT IMPEDANCE
SPEAKERS B SELECTOR
et
ss
Rear speaker (R) Rear speaker (L) Active sub woofer
Terminals for connecting the speakers Notes on speaker system hookup
* Twist the stripped ends of the speaker cords about 2/3
inch (10 mm). Be sure to match the speaker cord to the
Front speakers (8 or 4* ohm) SPEAKERS FRONT A terminals appropriate terminal on the components: + to + and ~
to -. If the cords are reversed, the sound will be
Connect the To the
Additional pair of front SPEAKERS FRONT B terminals
speakers (8 or 4* ohm) distorted and will lack bass.
Rear speakers (8 ohm) SPEAKERS REAR terminals ayit you use font speakers withlow maximuayineyt
rating, adjust the volume carefully to avoid excessive
Center speaker (8 ohm) SPEAKERS CENTER terminals output on the speakers.
Active sub woofer SUB WOOFER AUDIO OUT
jack**
* See “Speaker impedance” on the next page.
** You can connect an active sub woofer to either of the two jacks. The
remaining jack can be used to connect a second active sub woofer.
