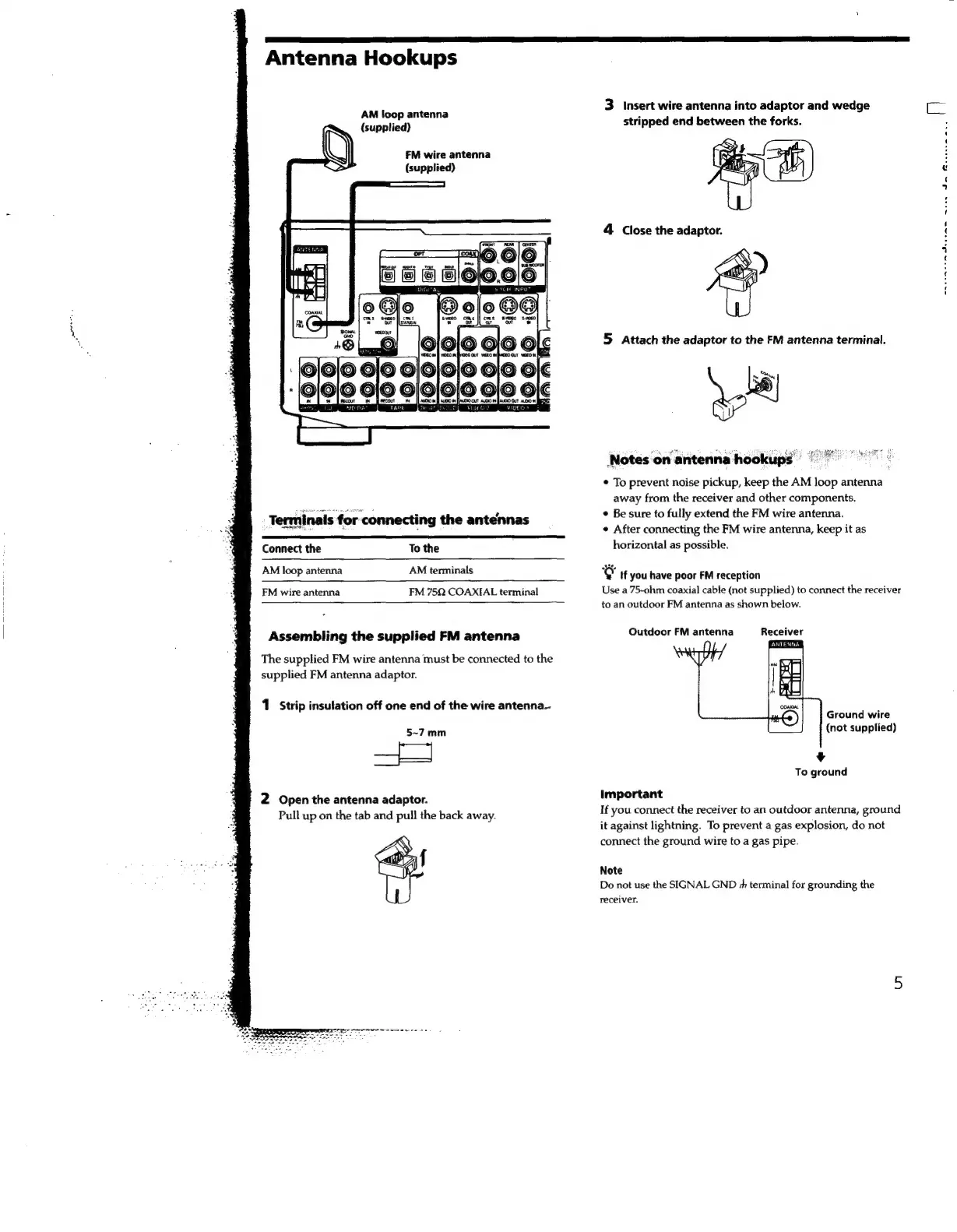

Sony STR-SE591 - Antenna Hookups

Antenna Hookups
AM loop antenna
(supplied)
FM wire antenna
(supplied)
Terminais for connecting the antennas
Connect the To the
AM loop antenna AM terminals
FM wire antenna FM 75Q COAXIAL terminal
Assembling the supplied FM antenna
The supplied FM wire antenna must be connected to the
supplied FM antenna adaptor.
1 Strip insulation off one end of the wire antenna_
5~7 mm
—E
2 Open the antenna adaptor.
Pull up on the tab and pull the back away.
f
3 Insert wire antenna into adaptor and wedge i
stripped end between the forks.
Prenesem
wme mee SAR
4 Close the adaptor.
5 Attach the adaptor to the FM antenna terminal.
a ew
¢ To prevent noise pickup, keep the AM loop antenna
away from the receiver and other components,
¢ Be sure to fully extend the FM wire antenna.
¢ After connecting the FM wire antenna, keep it as
horizontal as possible.
Cit you have poor FM reception
Use a 75-ohm coaxial cable (not supplied) to connect the receiver
to an outdoor FM antenna as shown below.
Outdoor FM antenna Receiver
ANTENNA
Ground wire
(not supplied)
+
To ground
Important
If you connect the receiver to an outdoor antenna, ground
it against lightning. To prevent a gas explosion, do not
connect the ground wire to a gas pipe.
Note
Do not use the SIGNAL GND + terminal for grounding the
receiver.
