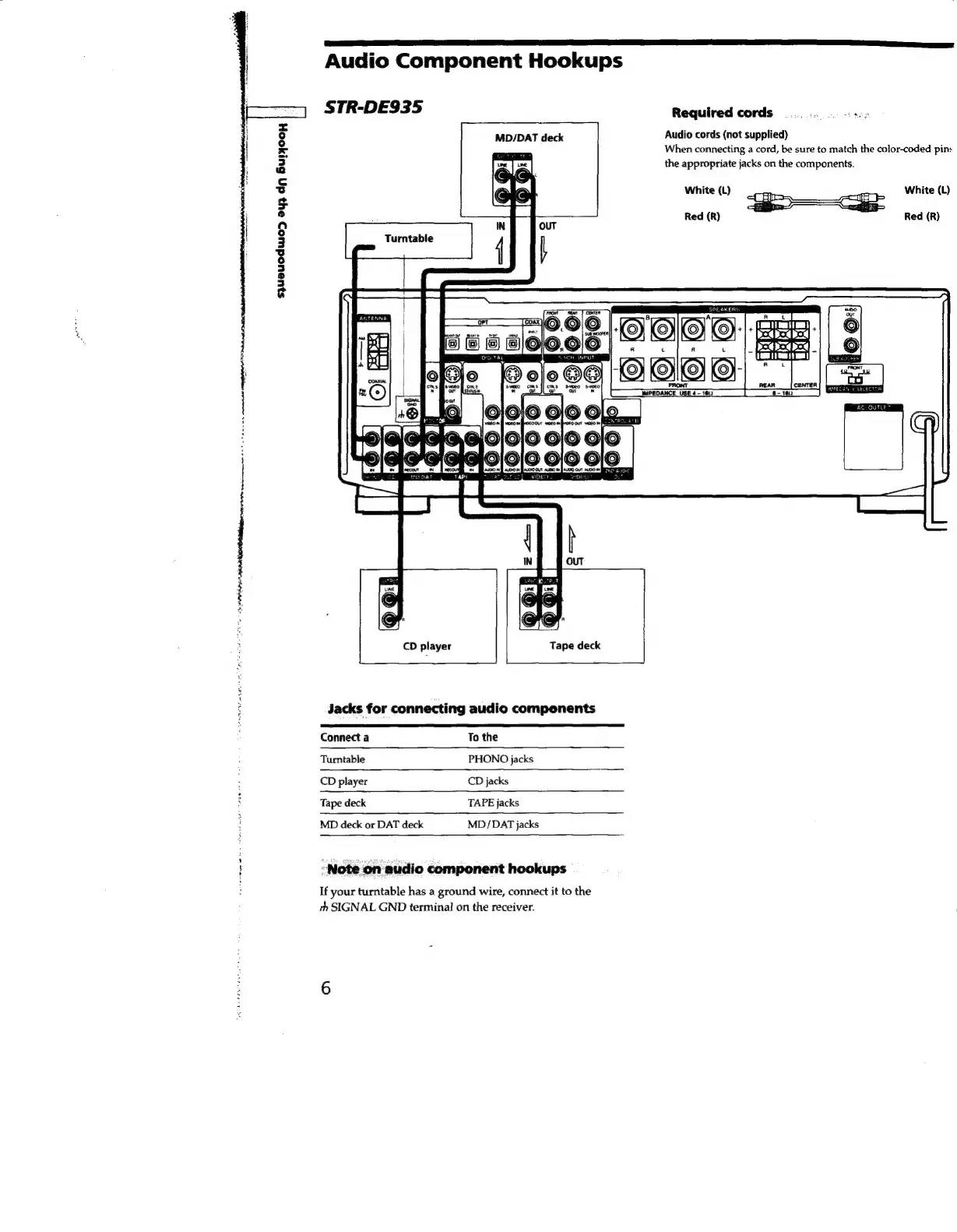

Audio Component Hookups
MD/DAT deck
ANTENNA
Ls
Coax,
CD player Tape deck
Jacks for connecting audio components
Required cords... >
Audio cords (not supplied)
When connecting a cord, be sure to match the color-coded pin:
the appropriate jacks on the components.
White (L) = White (L)
Red (R) Red (R)
SPEAKERS,
7
©:
Connect a To the
Turntable PHONO jacks
CD player CD jacks
Tape deck TAPE jacks
MD deck or DAT deck MD/DAT jacks
Note on audio component hookups
If your turntable has a ground wire, connect it to the
th SIGNAL GND terminal on the receiver.
