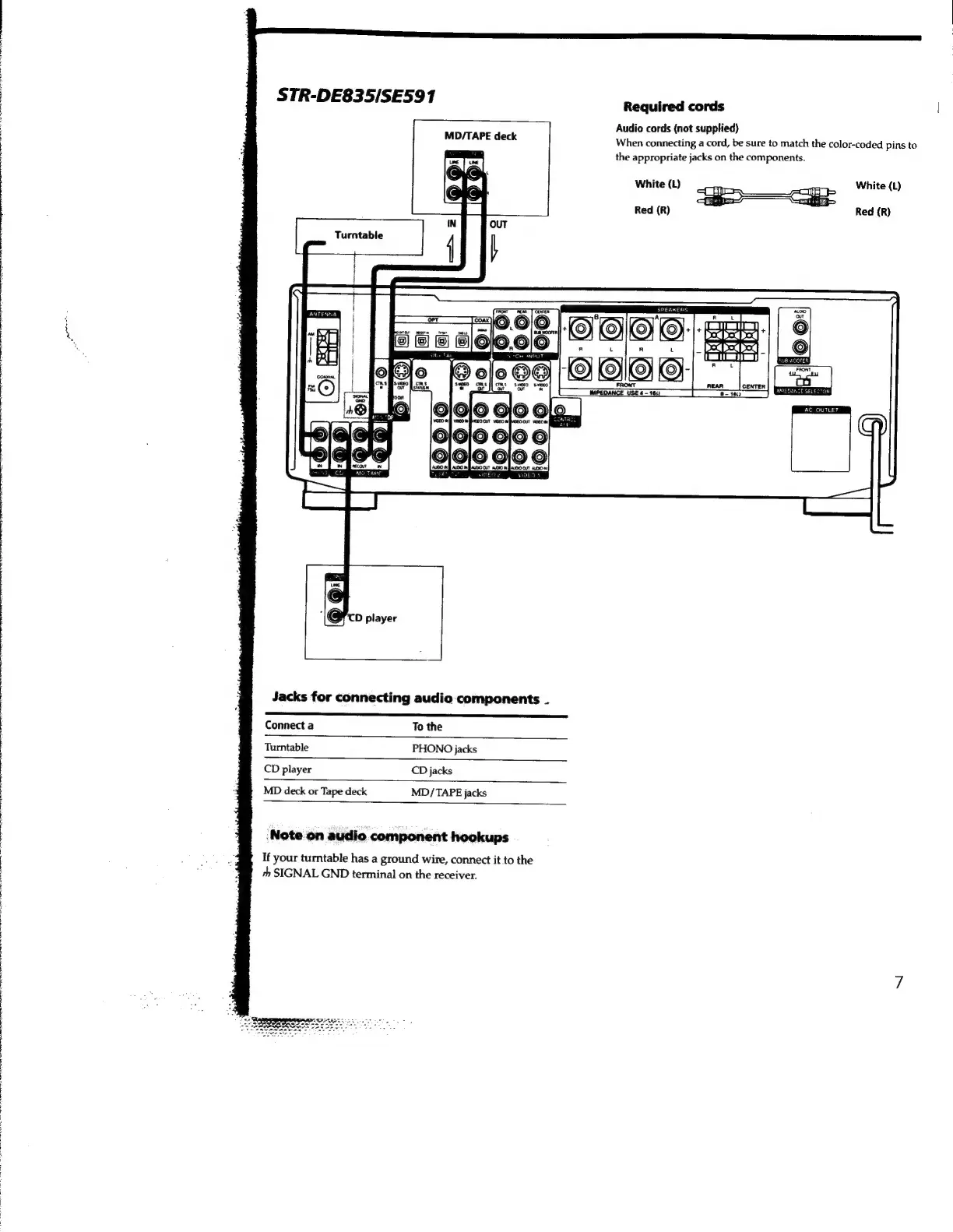

STR-DE835/SE591
MD/TAPE deck
Required cords
Audio cords (not suppfied)
When connecting a cord, be sure to match the color-coded pins to
the appropriate jacks on the components.
White (L) White (L)
Red(R) Red (R)
SPEAKERS
Jacks for connecting audio components .
SEU
EE
Connect a To the
Turntable PHONO jacks
CD player CD jacks
MD deck or Tape deck MD/TAPE jacks
Note on audio component hookups
If your turntable has a ground wire, connect it to the
th SIGNAL GND terminal on the receiver.
AC OUTLET
