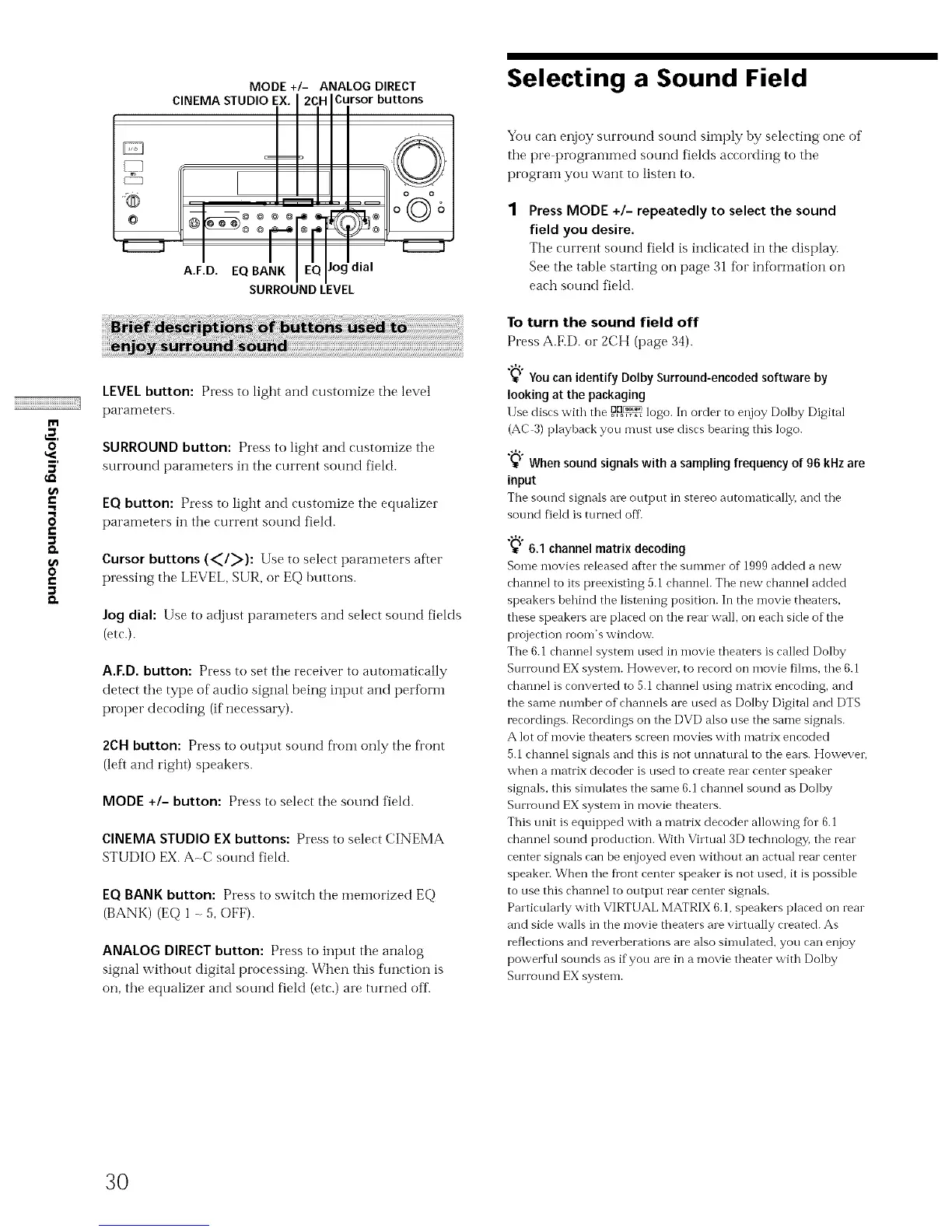

MODE +/- ANALOG DIRECT
CINEMA STUDIO EX. I 2CH ICursor buttons
A.F.D. EQ BANK J EQ]J°g ,a
SURROUND LEVEL
LEVEL button: Press to light and customize the level
parameters.
SURROUND button: Press to light and ctlstoiiL_ze tile
surround parameters in the current sound field.
EQ button: Press to light and customize tile equalizer
parameters in tile current souiKt field.
Cursor buttons (<I>): Use to select parameters after
pressing tile LEVEL, SUR, or EQ buttons.
Jog dial: Use to adjust parameters and select sound fields
(etc.).
A.F.D.button: Press to set tire receiver to automatically
detect tire type of audio signal being input and perform
proper decoding (if necessary).
2ell button: Press to output sormd fi'oi]l only the front
(left and right) speakers.
MODE +/- button: Press to select the sound field.
CINEMA STUDIO EX buttons: Press to select CINEMA
STUDIO EX. A-C sound fieM.
EQ BANKbutton: Press to switch the memorized EQ
(BANK) (EQ 1 - 5, OFF).
ANALOG DIRECT button: Press to input the analog
signal without digital processing. When this function is
oIL,tire equalizer and sound field (etc.) are turned off.
Selecting a Sound Field
You can enjoy surrormd sound simply by selecting one of
tire pre programmed sound fields according to the
program you want to listen to.
Press MODE +/- repeatedly to select the sound
field you desire.
Tire current sound fieM is indicated in the display.
See the table starting on page 31 fi)r information on
each sound field.
To turn the sound field off
Press A.F.D. or 2CH (page 34).
"_'°_You can identify Dolby Surround-encoded software by
looking at the packaging
Use discs with the IJ,Do_ logo. In order to enjoy Dolby Digital
(AC 3) playback you must use discs bearing this logo.
"_° When sound signals with a sampling frequency of 96 ktlz are
input
The sound signals are output in stereo automatically, and the
sound field is turned off\
"N'°;q6,1 channel matrix decoding
Some movies released after the summer of 1999 added a new
channel to its preexisting 5.1 channel. The new channel added
speakers behind the listening position. In the movie theaters,
these speakers are placed on the rear wall, on each side of the
projection room's window.
The 6.1 channel system used in movie theaters is called Dolby
Surrotmd EX system. However, to record on movie films, the 6.1
channel is converted to 5.1 channel using matrix encoding, and
the same number of channels are used as Dolby Digital and DTS
recordings. Recordings on the DVD also use the same signals.
A lot of movie theaters screen movies with matrix encoded
5.1 channel signals and this is not unnatural to the ears. However,
when a matrix decoder is used to create rear center speaker
signals, this simulates the same 6.1 channel sound as Dolby
Surrotmd EX system in movie theaters.
This trait is equipped with a matrix decoder allowing fur 6.1
channel sound production. With Virtual 3D technology, the rear
center signals can be enjoyed even without an actual rear center
speaken When the fi'ont center speaker is not used, it is possible
to use this channel to outi)ut rear center signals.
Particularly with VIRTUAL MATRIX 6.1, speakers placed on rear
and side walls in the movie theaters are virtually created. As
reflections and reverberations are also simulated, you can enjoy
powerfifl sounds as if you are in a movie theater with Dolby
Surrotmd EX system.
3O
