Sony STR-V919 - Exploded Views; Front Panel Section

NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and packing
materials are given in the last of this parts list.
•Abbreviation
CND : Canadian
CH : Chinese
EA : Saudi Arabia
MY : Malaysia
SP : Singapore
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE)
↑
Cabinet’s Color
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
SECTION 4
EXPLODED VIEWS
— 64 —
When indicating parts by reference number,
please include the board name.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.

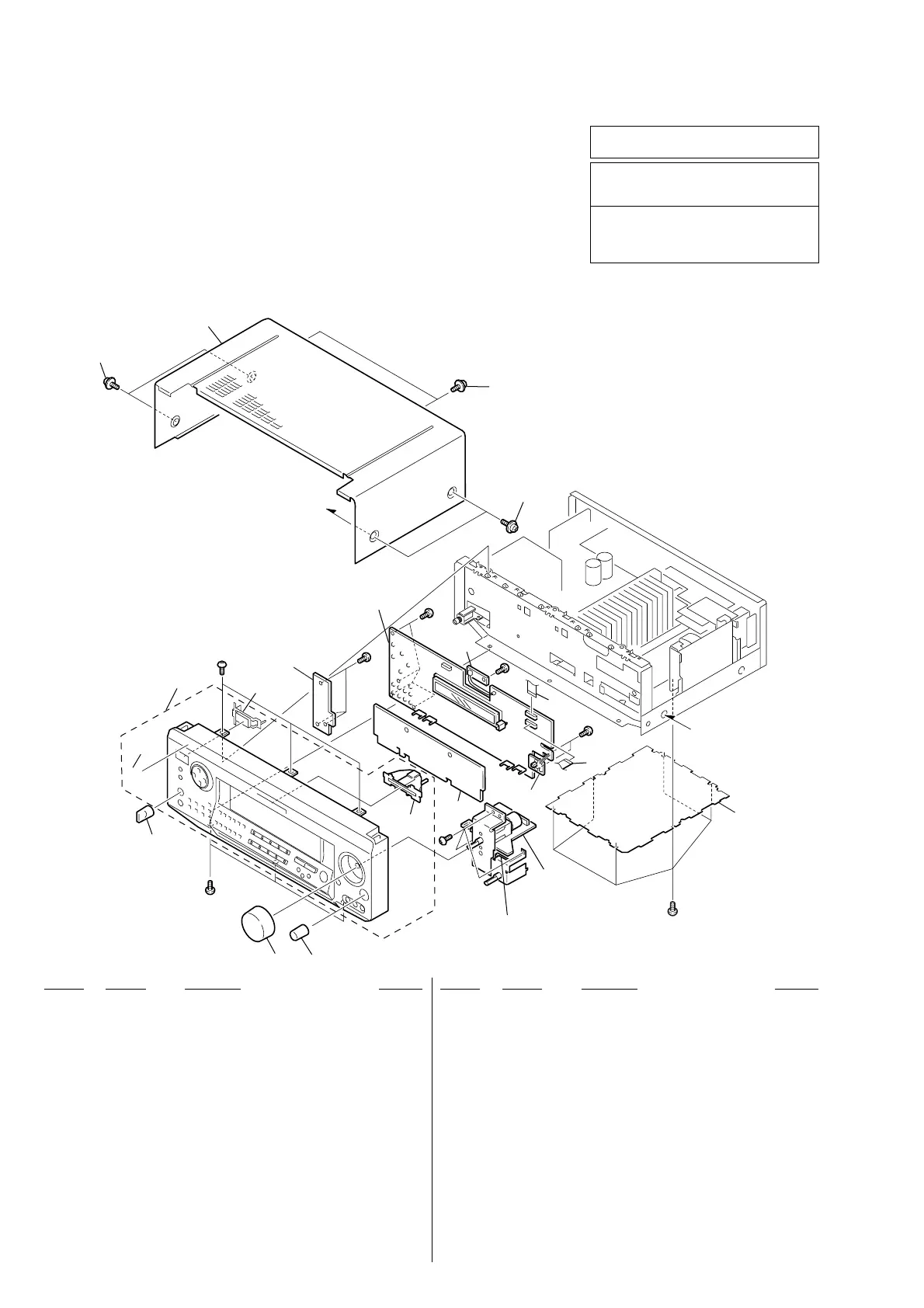

4-1. FRONT PANEL SECTION
rA : L.B board
rB : BALANCE board
1 4-957-383-01 KNOB (F14) (BLACK)
1 4-957-383-21 KNOB (F14) (GOLD)
2 X-4949-751-1 KNOB ASSY (U8) (BLACK)
2 X-4949-752-1 KNOB ASSY (C8) (GOLD)
3 4-998-717-01 KNOB (BAL) (BLACK)
3 4-998-717-11 KNOB (BAL) (GOLD)
4 4-996-698-01 EMBLEM, SONY (SILVER)
4 4-996-698-11 EMBLEM, SONY (GOLD)
5 X-4949-854-1 PANEL ASSY(U9),FRONT(BLACK)(US,CND)
5 X-4949-855-1 PANEL ASSY(C9),FRONT(GOLD) (CH)
5 X-4949-911-1 PANEL ASSY, FRONT (BLACK) (E,EA,MY,SP,PX)
6 4-989-843-31 BUTTON (BB) (BLACK)
6 4-989-843-41 BUTTON (BB) (GOLD)
* 7 1-670-010-11 SP SW BOARD
* 8 A-4414-064-A DISPLAY BOARD, COMPLETE (US,CND)
* 8 A-4414-082-A DISPLAY BOARD, COMPLETE (E,EA,PX)
* 8 A-4414-087-A DISPLAY BOARD, COMPLETE (MY,SP)
* 8 A-4414-130-A DISPLAY BOARD, COMPLETE (CH)
* 9 1-670-007-11 LED BOARD
* 10 4-982-682-01 CASE (414532) (BLACK) (US,CND,E,EA,PX)
10 X-4947-722-1 CASE ASSY (BLACK) (MY,SP)
10 X-4947-723-1 CASE ASSY (GOLD) (CH)
11 3-710-901-01 SCREW, TAPPING (GOLD)
11 3-710-901-11 SCREW, TAPPING (BLACK)
12 1-773-161-11 WIRE (FLAT TYPE) (21 CORE)
13 1-769-959-11 WIRE (FLAT TYPE) (11 CORE)
(E,EA,MY,SP,CH,PX)
13 1-773-025-11 WIRE (FLAT TYPE) (15 CORE)(US,CND)
* 14 A-4414-066-A VOLUME BOARD, COMPLETE
15 X-3375-588-1 ESCUTCHEON (WIN) ASSY
* 16 A-4414-065-A SW BOARD, COMPLETE
a
a
SONY
10
11
11
11
13
16
14
12
9
8
5
4
3
2
1
6
15
7
not supplied
#1
#1
#1
#1
#1
#1
#1
#1
(including r A)
r A
(including r B)
r B
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
Ver 1.1 2003.06
