— 65 —

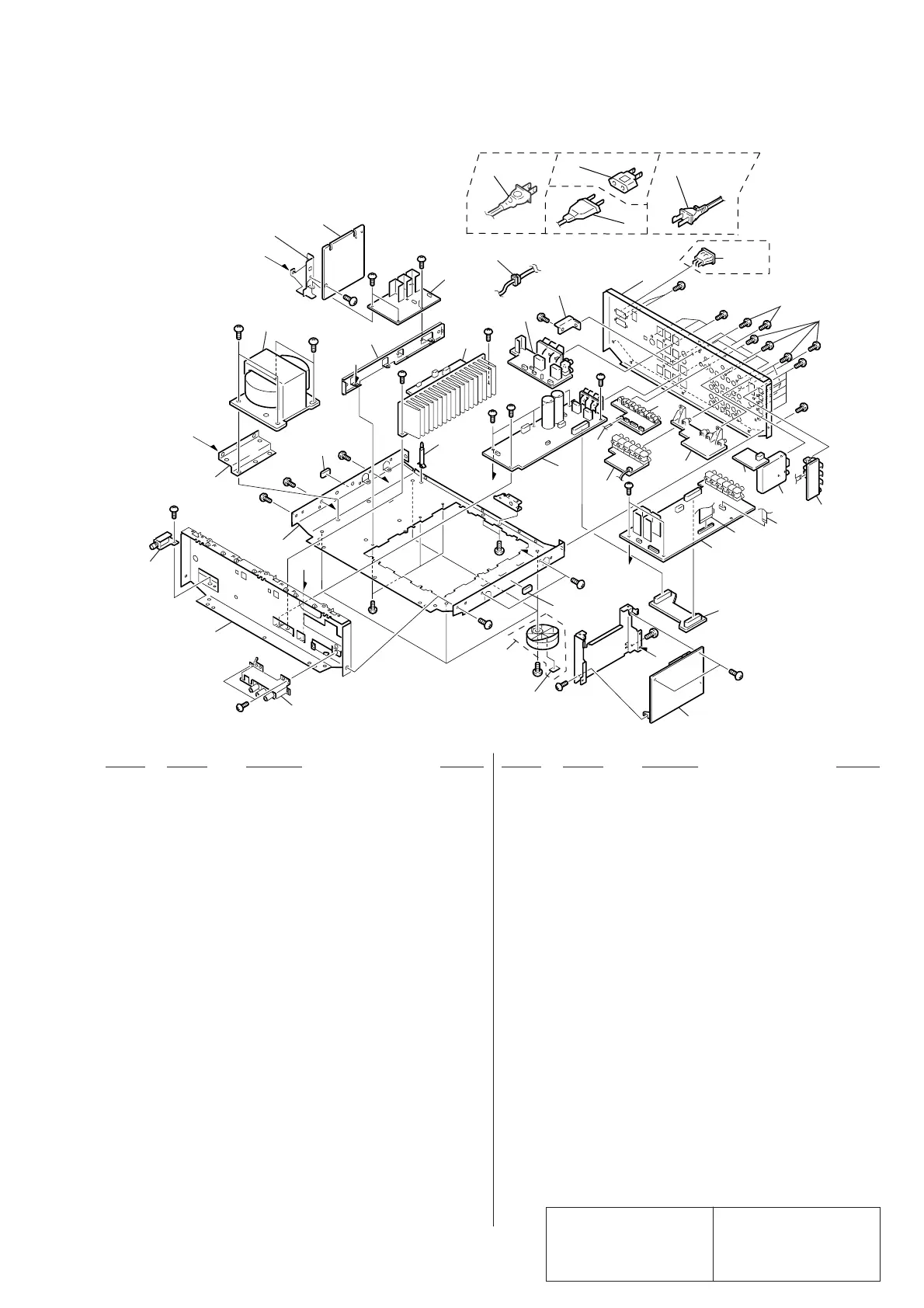

4-2. CHASSIS SECTION
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque ! sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
* 51 1-670-012-11 F-VIDEO BOARD
* 52 1-670-006-11 H.P BOARD
* 53 4-924-098-31 HOLDER, PC BOARD
54 4-985-642-01 CUSHION
* 55 1-669-998-11 AC BOARD
* 56 A-4414-109-A REG BOARD, COMPLETE
* 57 A-4414-076-A SP BOARD, COMPLETE (US,CND,E,EA,PX)
* 57 A-4414-090-A SP BOARD, COMPLETE (MY,SP,CH)
* 58 A-4414-061-A AMPLIFIER BOARD, COMPLETE
(US,CND,E,EA,PX)
* 58 A-4414-085-A AMPLIFIER BOARD, COMPLETE (MY,SP)
* 58 A-4414-128-A AMPLIFIER BOARD, COMPLETE (CH)
* 59 4-999-238-01 PANEL, BACK (US)
* 59 4-999-238-11 PANEL, BACK (CND)
* 59 4-999-238-21 PANEL, BACK (MY,SP)
* 59 4-999-238-31 PANEL, BACK (E,EA,PX)
* 59 4-999-238-41 PANEL, BACK (CH)
* 60 1-670-003-11 VIDEO BOARD
* 61 1-670-001-11 AUDIO BOARD
* 62 1-670-013-11 S-LINK BOARD (US,CND)
* 62 1-670-004-11 S-VIDEO BOARD (MY,SP,CH)
* 63 1-670-029-11 D.IN/OUT BOARD
64 1-693-407-11 TUNER (US,CND)
64 1-693-409-11 TUNER (E,EA,MY,SP,CH,PX)
* 65 A-4414-062-A INPUT BOARD, COMPLETE (US,CND,E,EA,PX)
* 65 A-4414-086-A INPUT BOARD, COMPLETE (MY,SP)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
* 65 A-4414-129-A INPUT BOARD, COMPLETE (CH)
66 1-773-285-11 WIRE (FLAT TYPE) (29 CORE)
* 67 1-670-000-11 TUNER BOARD
* 68 1-670-027-11 JOINT BOARD
* 69 A-4414-079-A DIGITAL BOARD, COMPLETE
70 4-977-358-11 CUSHION
71 X-4947-208-1 FOOT ASSY (F50150S) (BLACK)
71 X-4947-547-1 FOOT ASSY (F50150S) (GOLD)
* 72 3-703-244-00 BUSHING (2104), CORD
! 73 1-769-743-11 CORD, POWER (US,CND)
! 73 1-769-744-11 CORD, POWER (E,EA,MY,SP,PX)
! 73 1-782-464-21 CORD, POWER (CH)
! 74 1-569-008-31 ADAPTOR, CONVERSION (E,EA,PX)
75 1-769-904-11 WIRE (FLAT TYPE) (9 CORE) (MY,SP,CH)
76 1-769-876-11 WIRE (FLAT TYPE) (7 CORE)
* 77 A-4414-112-A REAR AMP BOARD, COMPLETE
! CNJ901 1-526-794-11 OUTLET, AC (MY,SP)
! T901 1-431-891-11 TRANSFORMER, POWER (US)
! T901 1-431-892-11 TRANSFORMER, POWER (CND)
! T901 1-431-893-11 TRANSFORMER, POWER (MY,SP,CH)
! T901 1-431-895-11 TRANSFORMER, POWER (E,EA,PX)
a
a
b
b
e
c
c
d
d
e
73
73
74
73
E, EA, PX MODEL
US, CND MODEL
CH MODEL
EXCEPT US,
CND, CH MODEL
MY, SP MODEL
60
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#2
#2
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
58
75
61
62
67
64
63
76
66
65
68
69
71
70
51
52
not supplied
54
55
56
T901
not supplied
not supplied
not supplied
not supplied
77
72
59
not supplied
57
53
54
CNJ901
To Next Page
