Sony STR-W555 - Printed Wiring Boards

– 25 –
STR-W555
Ref. No. Location
• Semiconductor
Location
D21 D-1
D41 D-2
D42 E-3
D1751 F-2
IC21 D-1
IC41 C-3
IC1751 E-1
IC1752 F-3
Q1 D-1
Q2 D-1
Q3 C-2
Q4 C-2
Q5 C-2
Q9 B-1
Q11 B-3
Q12 A-3
Q13 A-2
Q14 A-2

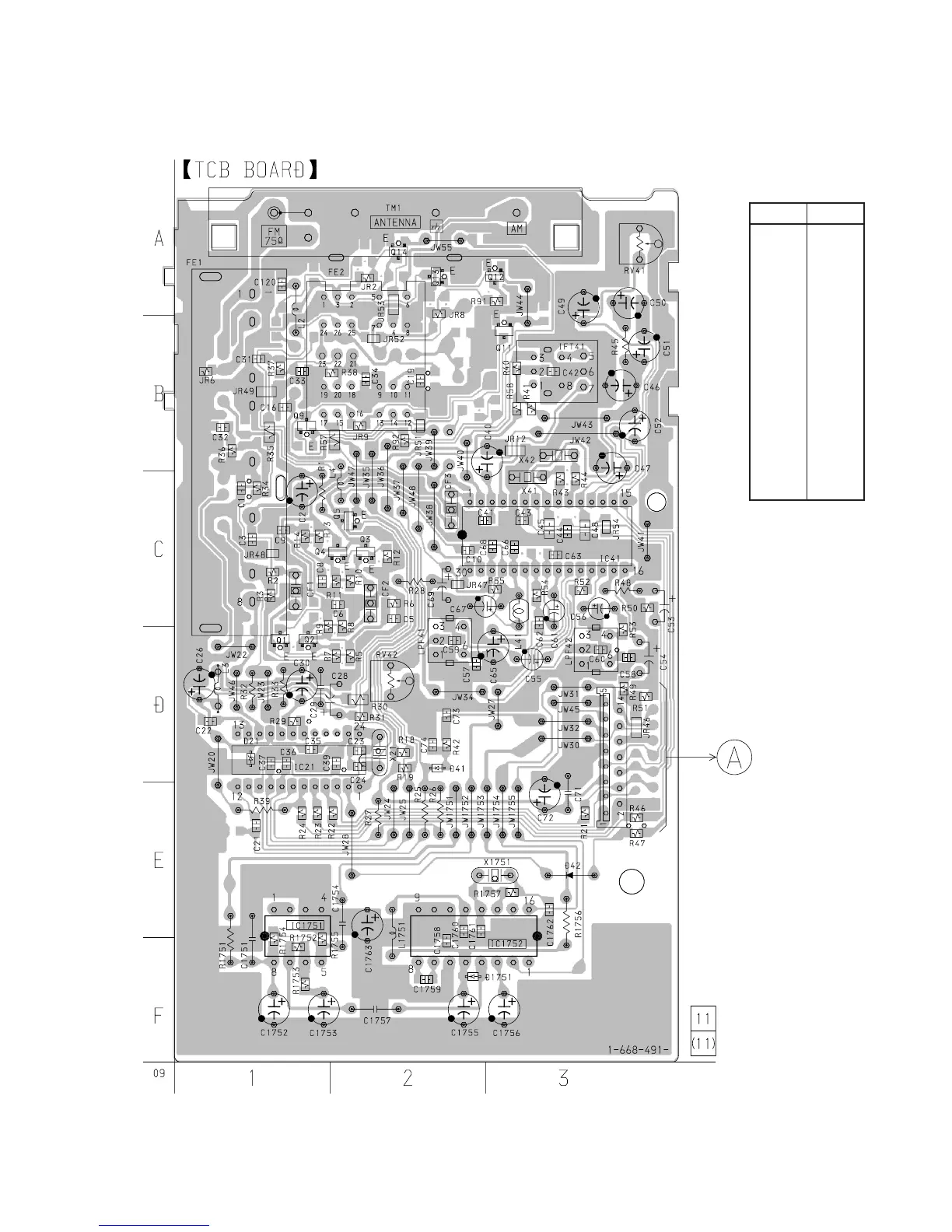

5-4. PRINTED WIRING BOARD – TUNER SECTION – (AEP, UK model)
• See page 12 for Circuit Boards Location.
(Page 30)
