– 36 –
STR-W555

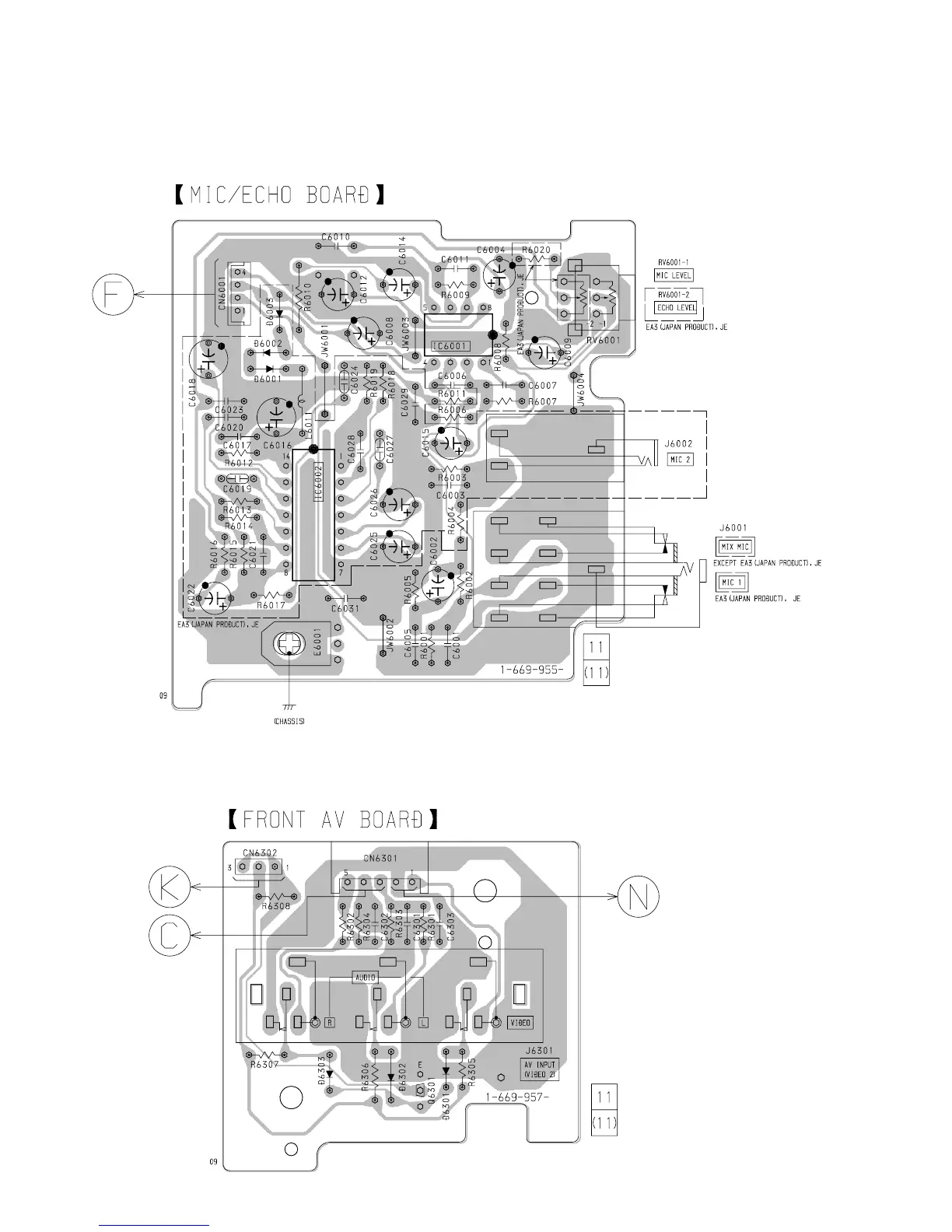

5-11. PRINTED WIRING BOARD – AV/MIC SECTION –
• See page 12 for Circuit Boards Location.
(Page 30)
(Page 30)
(Page 44)
(Page 39)
