STR-W555

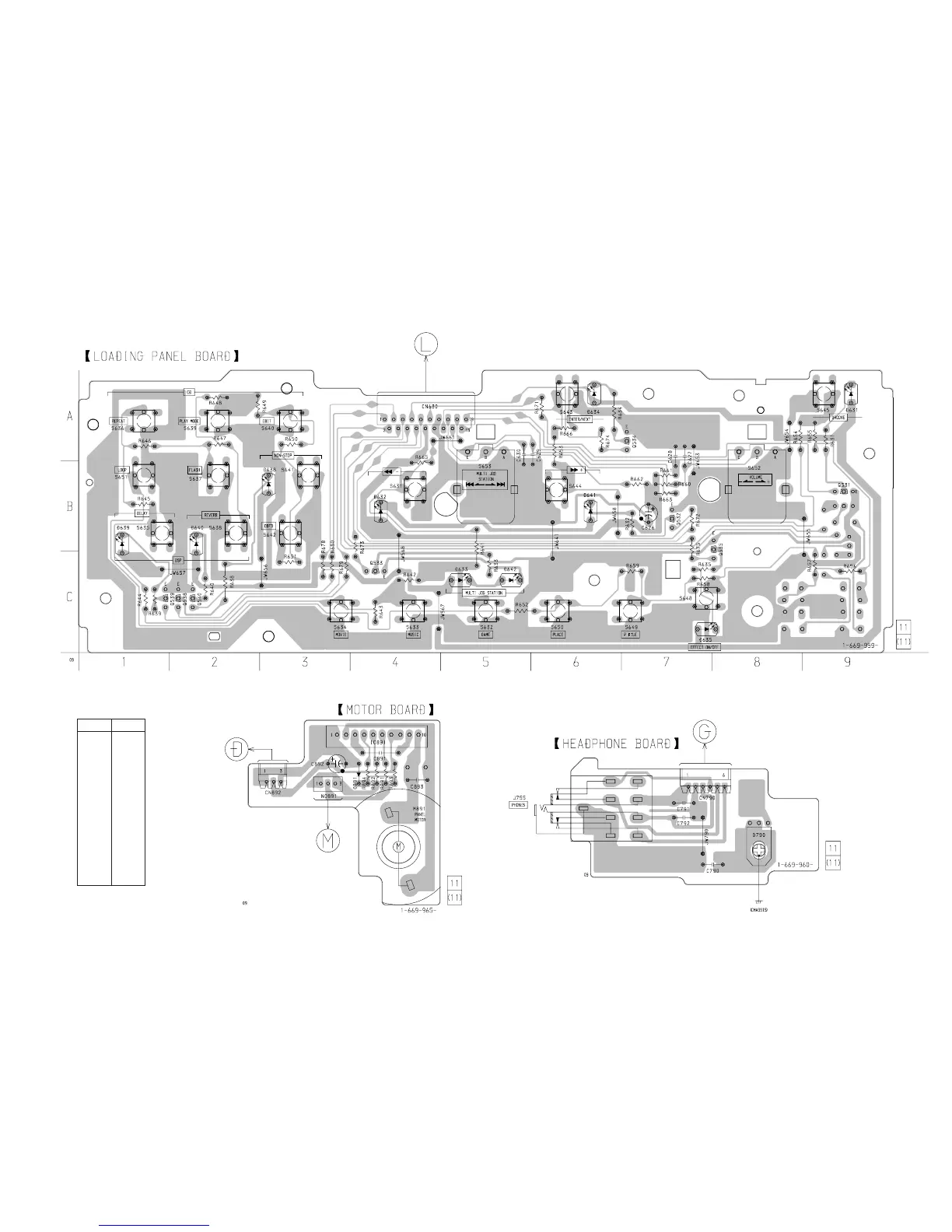

5-17. PRINTED WIRING BOARD – SLIDING PANEL SECTION –
• See page 12 for Circuit Boards Location.
(Page 29)
(Page 43)
(Page 29)
(Page 44)
Ref. No. Location
• Semiconductor
Location
D631 A-9
D632 B-4
D633 C-5
D634 A-6
D635 C-7
D638 B-3
D639 B-1
D640 B-2
D641 B-6
D642 C-5
Q531 B-9
Q532 B-7
Q533 C-4
Q534 A-7
Q535 B-8
Q538 C-2
Q539 C-1
Q540 C-2
