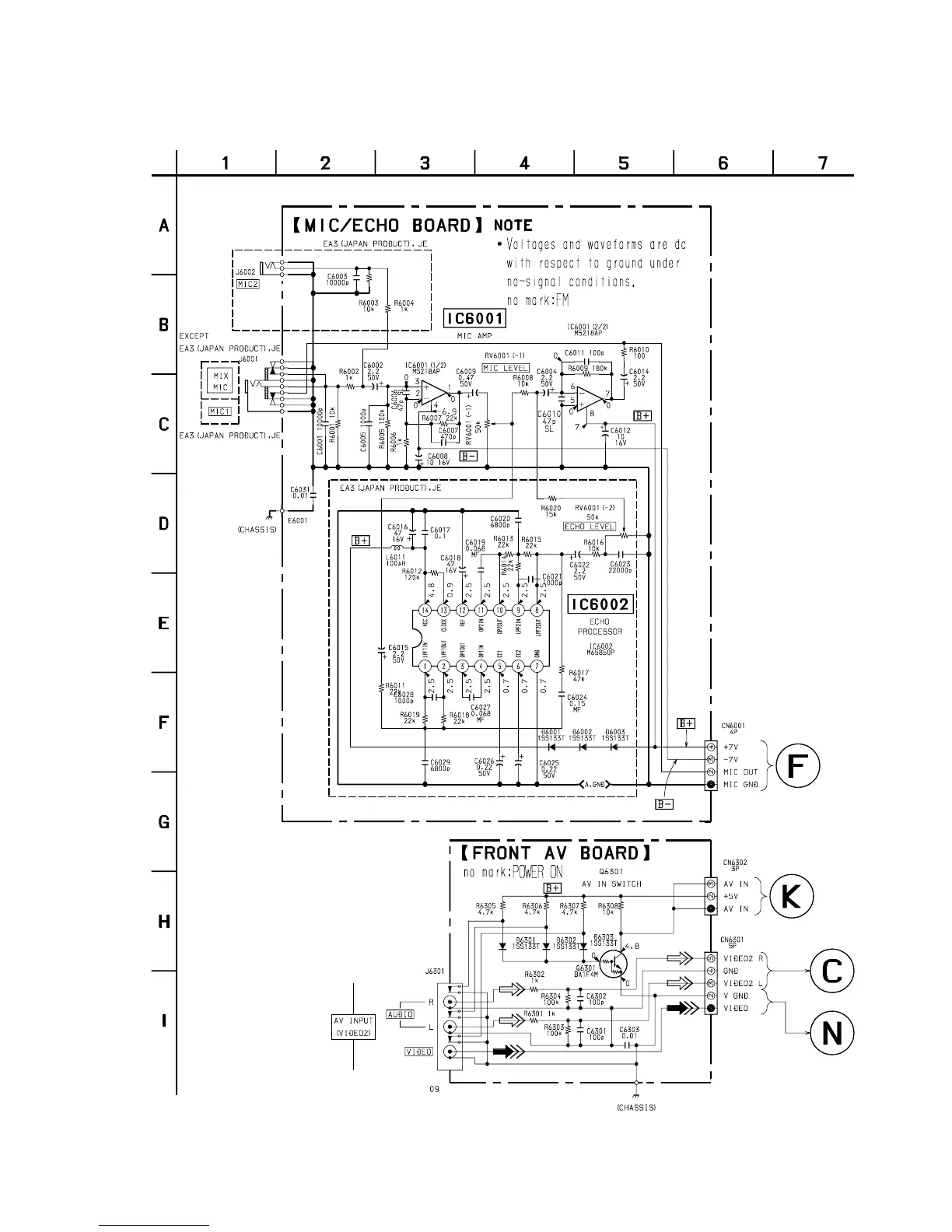

5-10. SCHEMATIC DIAGRAM – AV/MIC SECTION –
• See page 54 for IC Block Diagrams.
(Page 33)
(Page 41)
(Page 32)
(Page 38)
