Sony STR-W555 - General Front Panel Information; Front Panel Controls and Indicators

– 4 –

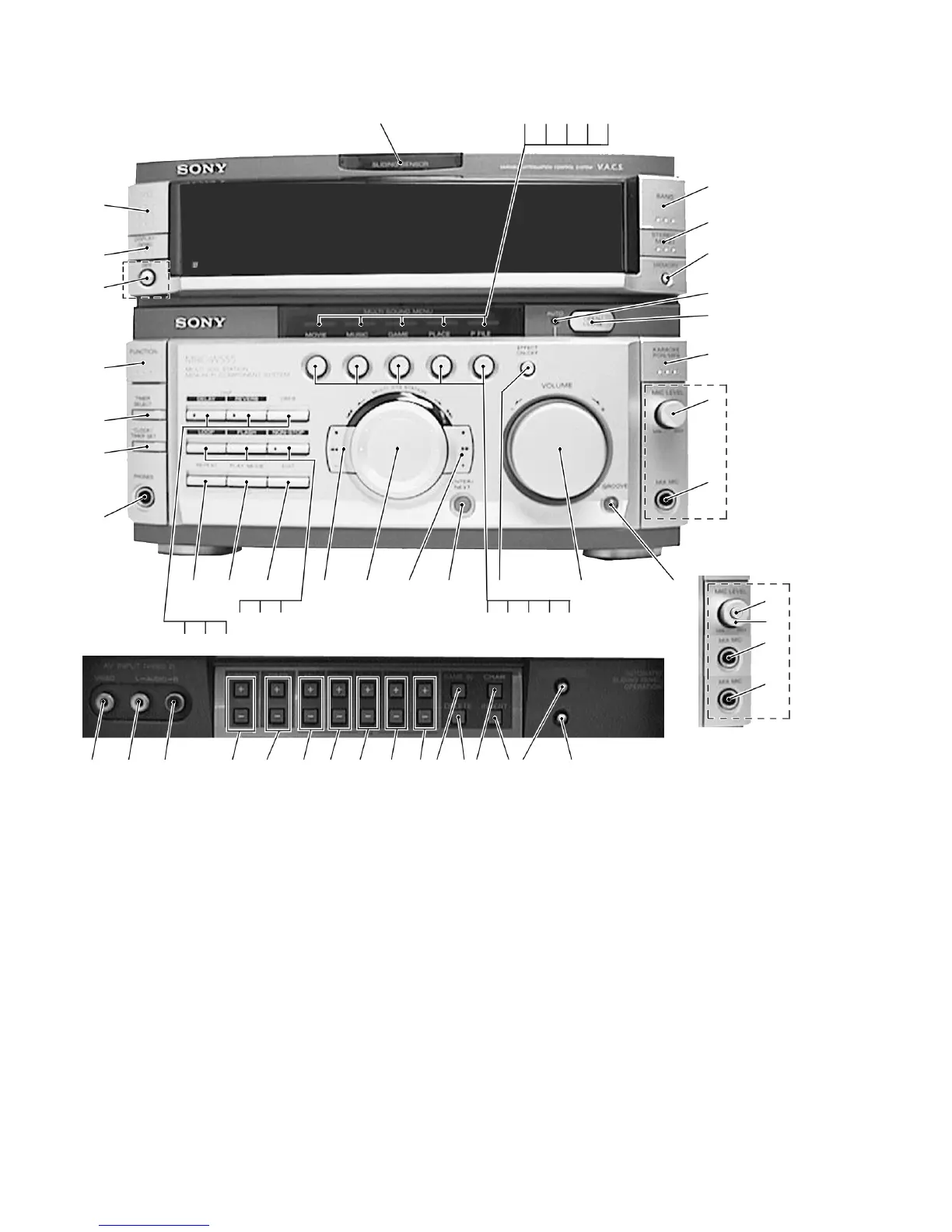

LOCATION OF PARTS AND CONTROLS
1 1/u (Power) button
2 SLIDING SENSOR window
3 MOVIE indicator
4 MUSIC indicator
5 GAME indicator
6 PLACE indicator
7 P FILE indicator
8 TUNER/BAND button
9 STEREO/MONO button
10 MEMORY button
11 AUTO indicator
12 OPEN/CLOSE button
13 KARAOKE PON/MPX button
14 MIC LEVEL knob
15 MIX MIC jack (EXCEPT EA3 (Japan
Product), JE model)
MIC 1 jack (EA3 (Japan Product), JE
model)
16 GROOVE button and indicator
17 VOLUME knob
18 EFFECT ON/OFF button and indicator
19 P FILE button
20 PLACE button
SECTION 1
GENERAL
Front Panel
45
46
47
48
49 50 51 52
53
54
55 5657
58 59
60
43 MIC 2 jack (EA3 (Japan Product), JE
model)
44 ECHO LEVEL knob
(EA3 (Japan Prooduct), JE model)
45 VIDEO (AV INPUT (VIDEO 2)) jack
46 AUDIO-L (AV INPUT (VIDEO 2)) jack
47 AUDIO-R (AV INPUT (VIDEO 2)) jack
48 SURROUND +/– buttons
49 DBFB +/– buttons
50 63Hz +/– buttons
51 250Hz +/– buttons
52 1kHz +/– buttons
53 4kHz +/– buttons
54 16kHz +/– buttons
55 NAME IN button
56 DELETE button
57 CHAR button
58 INSERT button
59 OPEN SENSOR ON/OFF button
60 EQ MEMORY button
• Abbreviation
EA3 : Saudi Arabia model.
JE : Tourist model.
21 GAME button
22 MUSIC button
23 MOVIE button
24 ENTER/NEXT button and indicator
25 ) + button and indicator
26 = C MULTI JOG STATION c
+ dial
27 0 – button and indicator
28 CD EDIT button
29 CD PLAY MODE button
30 CD REPEAT button
31 NON-STOP button and indicator
32 FLASH button
33 LOOP button
34 DBFB button
35 DSP REVERB button and indicator
36 DSP DELAY button and indicator
37 PHONES jack
38 CLOCK/TIMER SET button
39 TIMER SELECT button
40 FUNCTION button
41 PTY button (AEP, UK model)
42 DISPLAY/DEMO button
2
1920212223
161718
9
10
11
12
13
14
15
34567
8
24252627
1
37
38
39
41
42
40
343536
31
2930
32
33
28
EXCEPT
EA3 (Japan
Product), JE
EA3 (Japan
Product), JE
44
43
15
14
