Sony STR-W555 - Tuner (AEP, UK Model) Section; Tuner (East European, CIS Model) Section

– 22 –

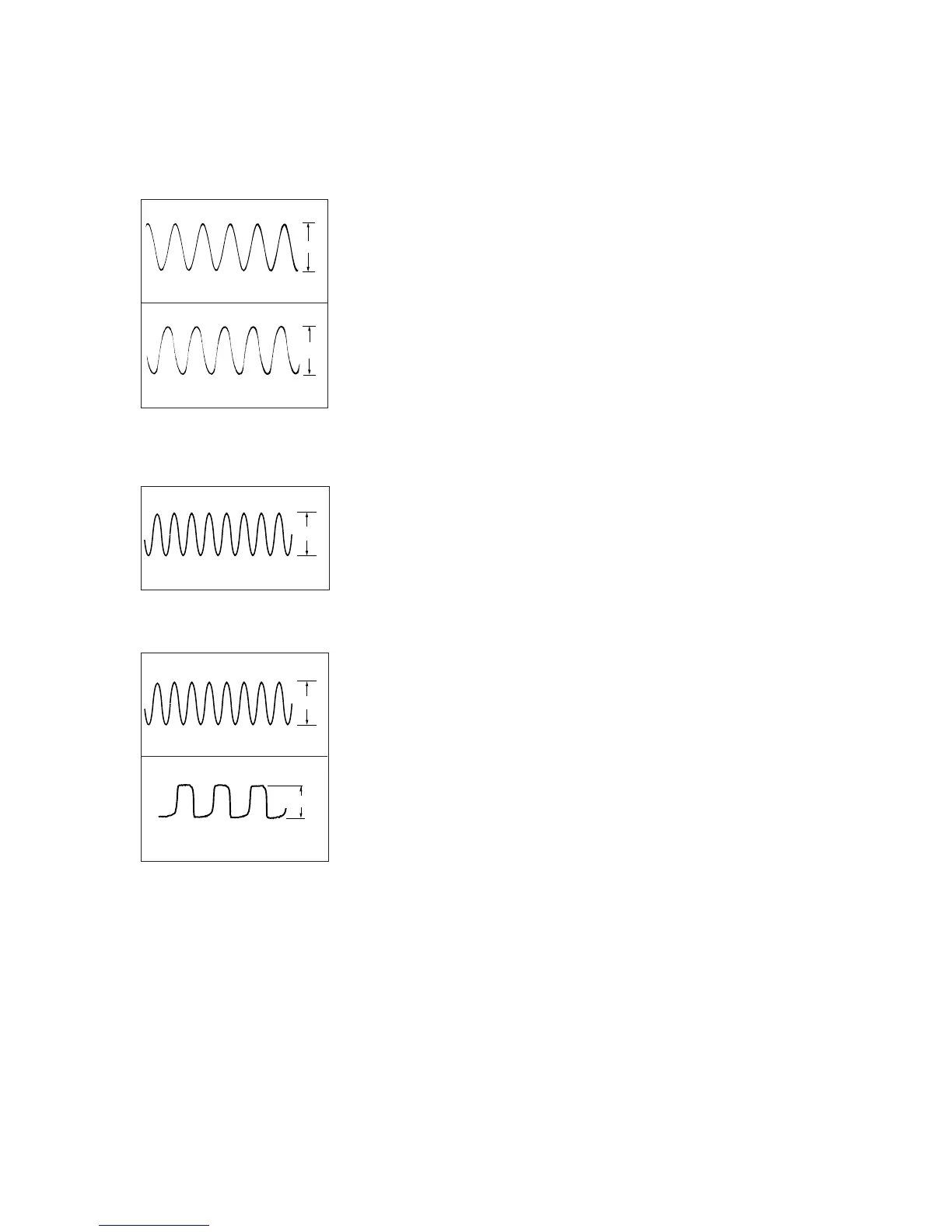

WAVEFORMS
1
2
IC1752 !¢ OEC O
IC21 @¢ XOUT
– TUNER SECTION –
(AEP, UK model)
4.332MHz
2Vp-p
1
IC21 @¢ XOUT
– TUNER SECTION –
(East European, CIS model)
4.5MHz
4.2Vp-p
1
2
IC501 !£ XT2
IC501 0 X2
– DISPLAY SECTION –
5MHz
5.5Vp-p
4.5MHz
4.2Vp-p
32.768kHz
5Vp-p
