Sony STR-W555 - Circuit Boards and Back Panel Section

– 62 –

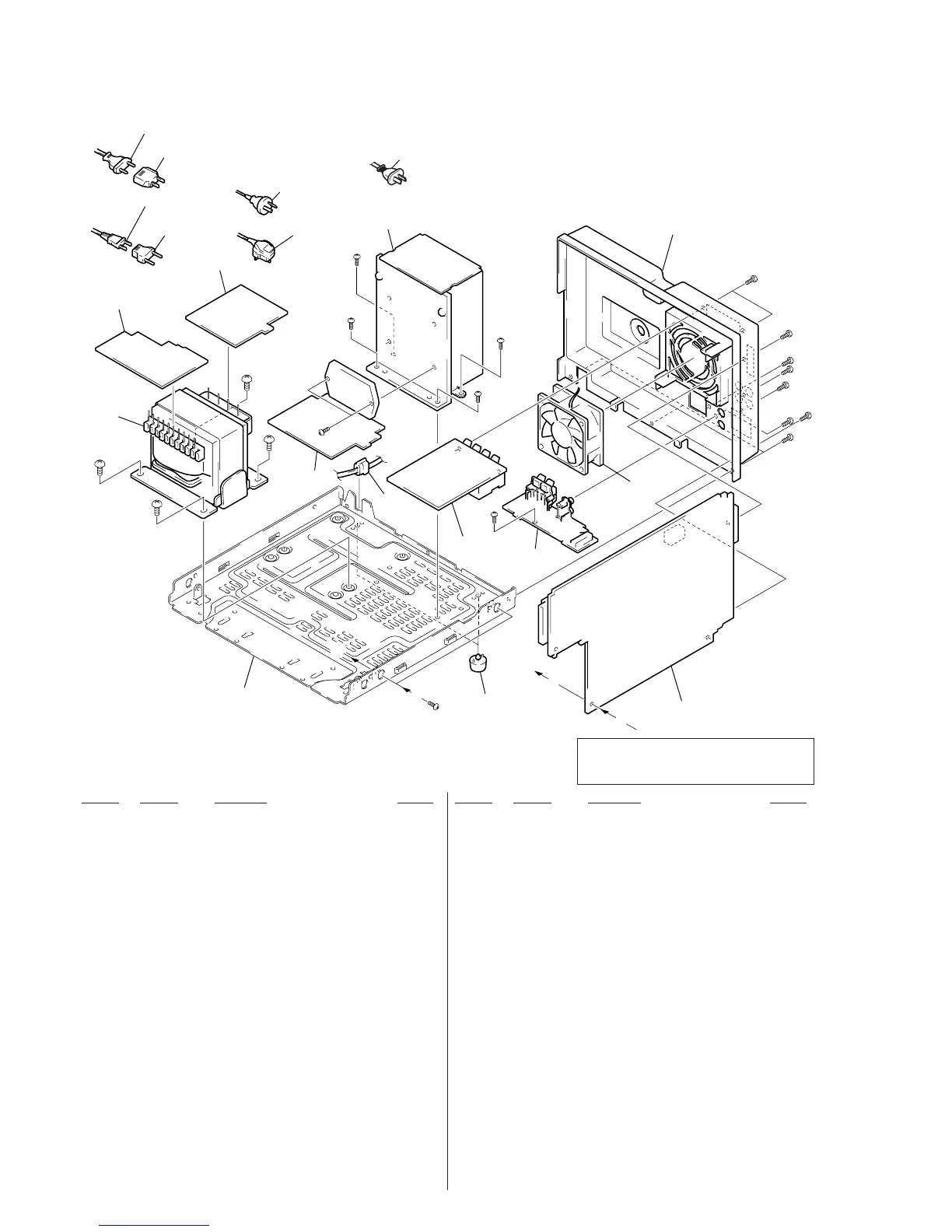

6-4. CIRCUIT BOARDS AND BACK PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 156 1-669-953-11 PRIMARY BOARD
* 157 4-900-848-01 BACK PANEL (E,EA3,SP,MY,AR,TW,JE)
* 157 4-900-848-11 BACK PANEL (AEP,UK,EE,CIS,EA4,TH,AUS,CH)
158 4-970-381-11 FOOT (REAR)
* 159 3-703-244-00 BUSHING (2104), CORD
(AEP,UK,EE,CIS,E,EA,SP,MY,AR,TW,AUS,CH,JE)
159 3-703-571-11 BUSHING (S) (4516), CORD (TH)
! 160 1-575-651-11 CORD, POWER (EA3(JAPAN PRODUCT))
! 160 1-575-653-11 CORD, POWER (TH,JE)
! 160 1-696-847-11 CORD, POWER (AUS)
! 160 1-751-520-11 CORD, POWER (UK)
! 160 1-777-071-21 CORD, POWER
(AEP,EE,CIS,EA3,EA4,SP,MY,TW)
! 160 1-783-940-11 CORD, POWER (AR)
! 160 1-782-315-11 CORD, POWER (E)
! 160 1-783-205-11 CORD, POWER (CH)
! 161 1-569-007-11 ADAPTOR, CONVERSION 2P (E,JE)
! 161 1-569-008-21 ADAPTOR, CONVERSION 2P (EA3,SP,MY,TW)
M901 1-763-117-11 FAN, DC
! T901 1-431-904-11 TRANSFORMER, POWER
(E,EA3,EA4,SP,MY,AR,TW,TH,AUS,CH,JE)
! T901 1-431-905-11 TRANSFORMER, POWER (AEP,UK,EE,CIS)
* 151 A-4414-190-A MAIN BOARD, COMPLETE (AEP,UK)
* 151 A-4414-198-A MAIN BOARD, COMPLETE
(E,EA3(Malaysia Product),SP,MY,AR,TW,AUS,CH)
* 151 A-4414-549-A MAIN BOARD, COMPLETE (EE,CIS)
* 151 A-4414-714-A MAIN BOARD, COMPLETE
(EA3(Japan Product),JE)
* 151 A-4414-765-A MAIN BOARD, COMPLETE (EA4,TH)
* 152 1-669-963-11 SURR SPK BOARD
153 1-233-545-31 ENCAPSULATED COMPONENT
(E,EA4,AR,TH,AUS)
153 1-233-546-31 ENCAPSULATED COMPONENT
(EA3,SP,MY,TW,CH)
153 1-693-385-31 TUNER (JE)
* 153 A-4303-597-A TCB BOARD (EE,CIS)
* 153 A-4303-596-A TCB BOARD (AEP,UK)
* 154 A-4414-195-A POWER AMP BOARD, COMPLETE (AEP,UK)
* 154 A-4414-209-A POWER AMP BOARD, COMPLETE
(EE,CIS,E,EA3(Malaysia Product),SP,MY,AR,TW,AUS,CH)
* 154 A-4414-743-A POWER AMP BOARD, COMPLETE
(EA3(Japan Product),JE)
* 154 A-4414-790-A POWER AMP BOARD, COMPLETE (EA4,TH)
* 155 1-669-954-11 SECONDARY BOARD
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
A
B
A
B
not supplied
M901
#1
#1
#4
#5
#5
#5
#5
#2
#2
#2
T901
151
152
158
153
154
159
155
156
not supplied
160 (UK)
160 (AUS)
160 (AR)
160 (E,TH,CH,JE)
161 (E,JE)
160 (AEP,EE,CIS,EA3,EA4,SP,MY,TW)
161 (EA3,SP,MY,TW)
157
#2
#1
#2
#2
#2
#2
#2
#
6
#2
