SECTION 6
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
— 33 —
1
2
4
4
2
20
18
19
17
16
15
21
7
8
9
10
11
12
11
13
14
13
14
13
14
22
23
24
25
26
27
6
28
#3
#1
#1
#5
#1
#4
#4
#4
#1
#3
#1
3
#1
31
5
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

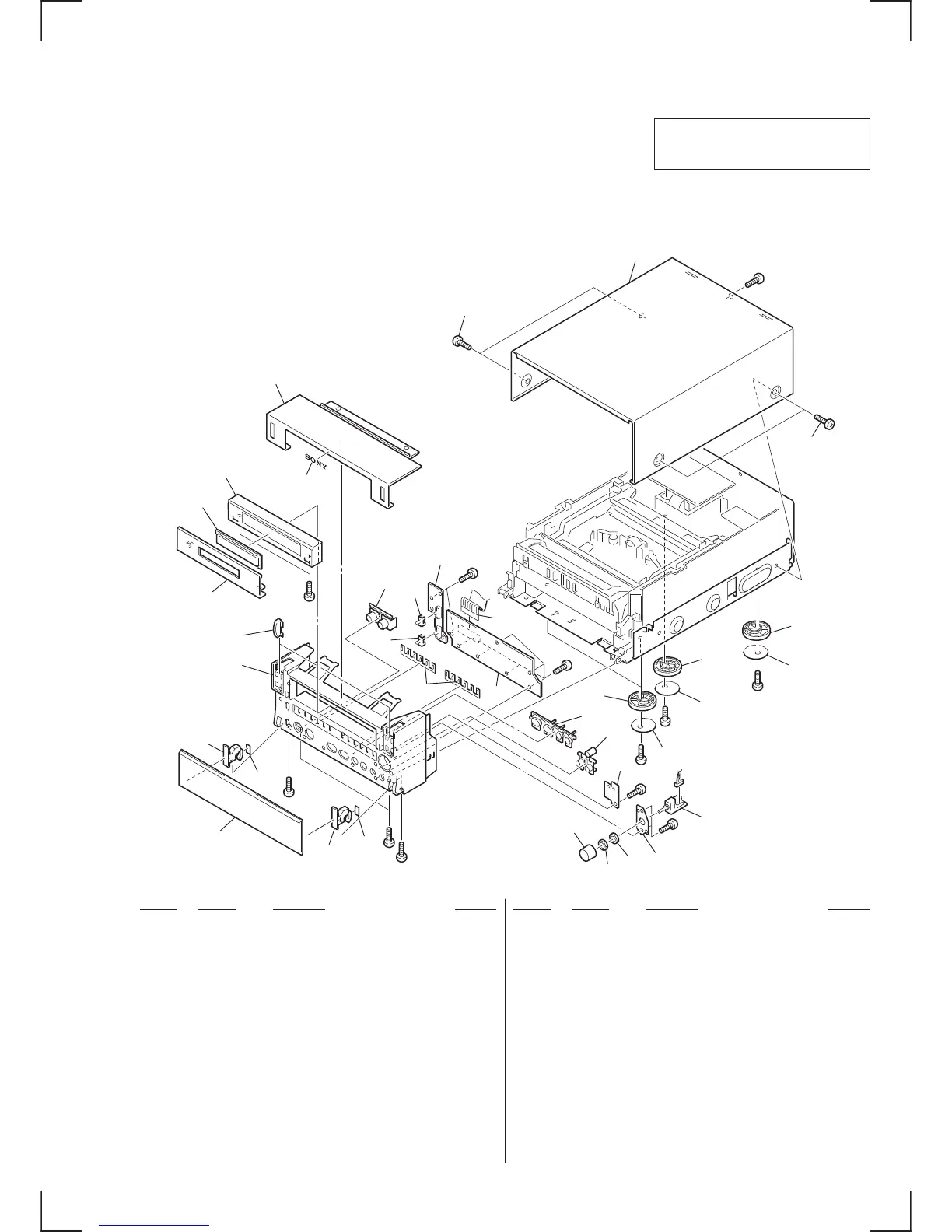

6-1. CASE, FRONT PANEL SECTION
1 3-033-056-01 WINDOW, GLASS
2 4-212-579-11 BRACKET (GLASS)
3 4-942-636-21 EMBLEM (NO.3.5), SONY
4 4-214-458-01 TAPE
5 3-033-074-01 CHASSIS, FRONT
6 3-033-079-01 REC LEVEL KNOB
7 3-028-756-01 PANEL (AL-TC), LOADING
8 3-033-054-01 PLATE, LOADING ORNAMENT
9 3-033-055-01 LID, LOADING
10 3-028-755-01 PANEL (AL-TC), FRONT
11 3-033-057-01 SCREW, CASE STOPPER
* 12 3-033-052-01 TOP COVER
* 13 3-033-053-01 FOOT
14 3-033-061-01 FOOT CUSHION
15 1-773-128-11 WIRE (FLAT TYPE) (19 CORE)
* 16 A-2007-825-A CONNECTION BOARD, COMPLETE
17 3-033-080-01 DOLBY KNOB
18 3-033-078-01 DIRECTION KNOB
19 4-212-557-01 BUTTON (REC)
20 3-033-075-01 LENS
* 21 A-2007-817-A FRONT BOARD, COMPLETE
22 3-033-076-01 BUTTON, PLAY
23 3-033-077-01 BUTTON, FF
* 24 A-2007-823-A O/C SW BOARD, COMPLETE
* 25 1-672-765-11 VR BOARD
26 3-033-081-01 REC LEBEL BRACKET
27 3-033-082-01 VR WASHER 9Q
28 3-033-083-01 NUT, VR
31 4-212-539-02 BUTTON (POWER)
