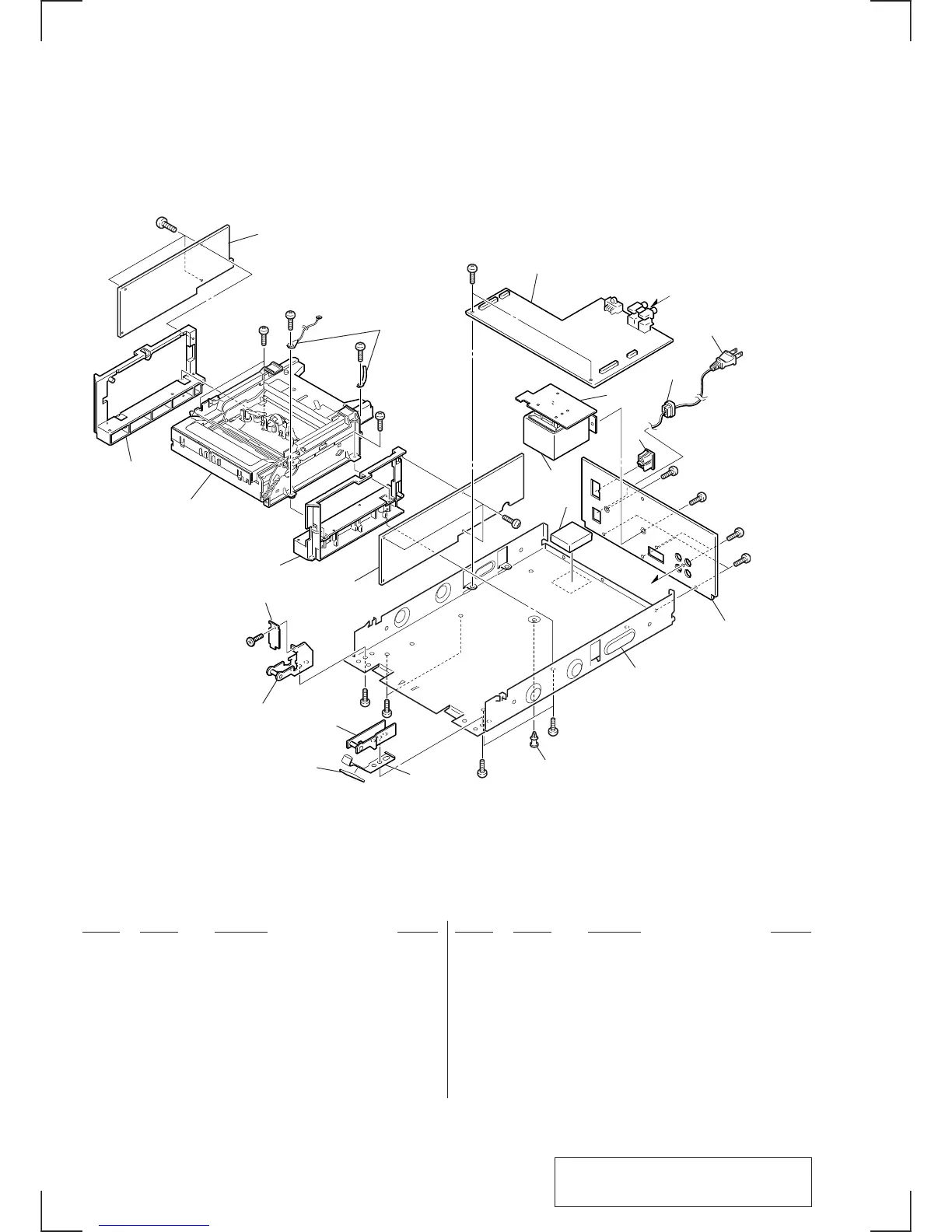

6-2. CHASSIS SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
51 3-033-060-01 SPRING, PLATE
52 4-213-692-02 TAPE (SPRING)
53 X-4950-381-1 BRACKET (R) ASSY
54 3-033-050-01 HINGE (L/C), DOOR
* 55 A-2007-818-A DOLBY BOARD, COMPLETE
* 56 3-033-063-01 CHASSIS (R), DECK
* 57 3-033-062-01 CHASSIS (L), DECK
* 58 A-2007-819-A CONTROL BOARD, COMPLETE
* 59 A-2007-820-A POWER BOARD, COMPLETE
* 60 1-672-764-11 POWER TRANS BOARD
* 61 3-035-607-01 REAR PANEL (AEP, UK)
* 61 3-035-608-01 REAR PANEL (E, HK, SP)
* 62 3-033-068-01 CUSHION
! 63 1-555-750-00 CORD, POWER
64 3-033-071-01 STOPPER, AC CORD
! 65 1-526-794-11 OUTLET, AC
* 66 A-2007-824-A PANEL SW BOARD, COMPLETE
! T01 1-433-657-11 TRANSFORMER, POWER
