Sony TC-SD1 - Power Trans Board, AC Select SW Board, Power Board; Tray Assembly

— 6 —

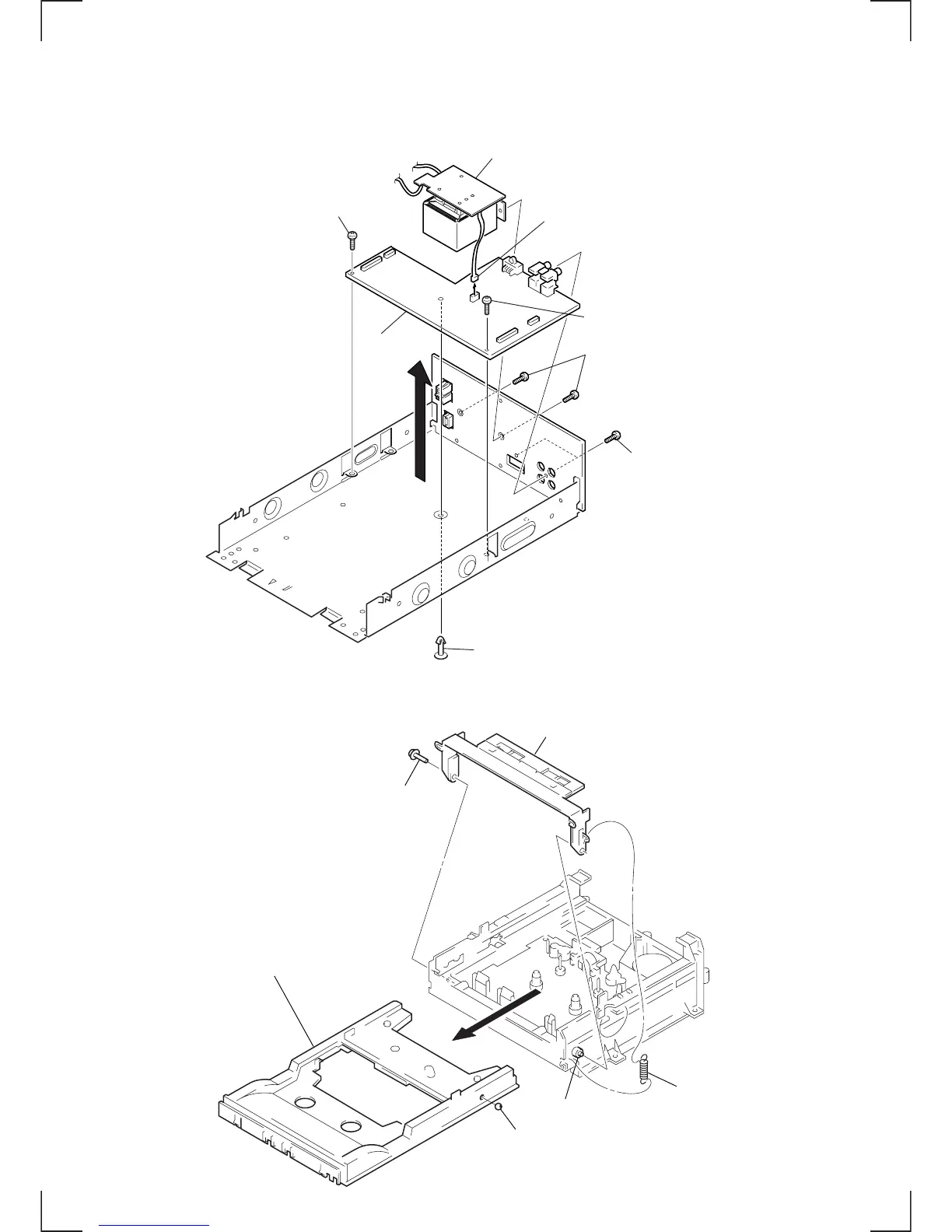

2-4. POWER TRANS BOARD, AC SELECT SW BOARD, POWER BOARD
2-5. TRAY ASSEMBLY
3 POWER TRANS board
8 POWER
board
1 Connector
6 Screw (+B2.6 × 8)
2 Two screws
(+PWH3
× 6)
4 Two screws
(+B3
× 10)
7 Suport
5 Screw (+B2.6 × 8)
1 Screw (1.7 × 8.2)
4 Arm (576)
2 Spring (B
)
3 Boss
Stainless ball (5 DIA)
5 Tray assembly
Note : Be careful not to drop
the stainless ball (5 DIA)
when removing the tray assembly.
