Sony TC-SD1 - Mechanism Deck Section-2 (TCM-ACLM572)

— 36 —
158
157
155
154
153
156
159
161
155
160
162
155
155
165
164
163
155
166
151
not supplied
not
supplied
not
supplied
M902
HRPE901
not supplied
A
A
167
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

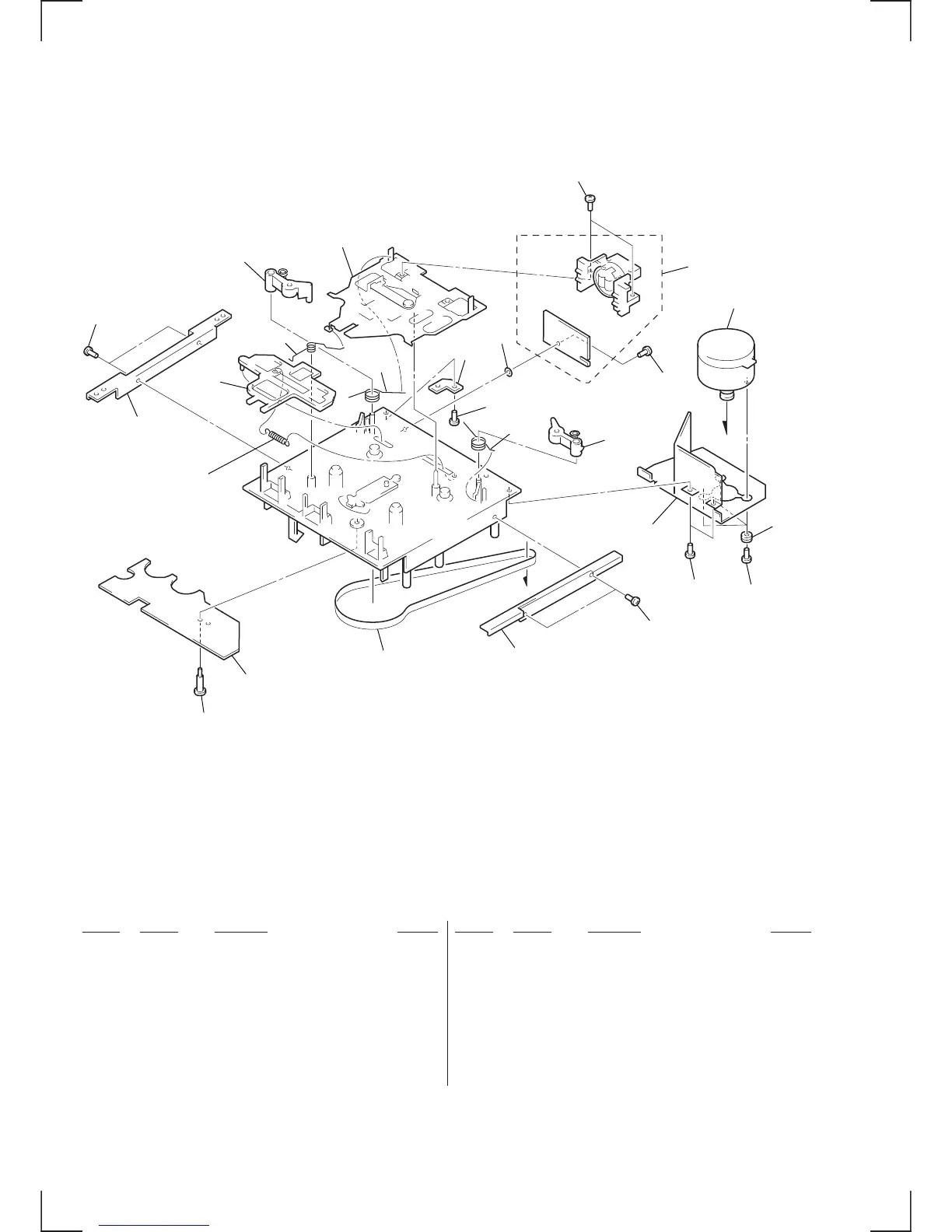

6-4. MECHANISM DECK SECTION-2 (TCM-ACLM572)
151 3-017-294-01 SCREW (S), SPECIAL
153 3-017-273-01 LEVER (AC), SPRING
154 3-017-270-01 AC, LEVER
155 3-017-279-01 SCREW (M2), SPECIAL
156 3-017-274-01 HEAD, SPRING BASE
157 3-017-254-01 PINCH ROLLER (F)
158 3-017-253-01 CHASSIS (HEAD)
159 3-017-277-01 PINCH (F), SPRING
160 3-017-278-01 PINCH (R), SPRING
161 3-017-300-01 WASHER, FLAT
162 3-017-255-01 PINCH ROLLER (R)
163 3-017-296-01 CUSHION (MOTOR)
164 3-017-297-01 SCREW (MOTOR)
165 3-017-280-01 SCREW (M2 TAPPING), SPECIAL
166 3-017-285-01 BELT (MAIN)
* 167 1-672-011-11 MODE CONTROL BOARD
HRPE9013-017-303-01 HEAD (REC/PLAY/ERASE)
M902 3-017-259-01 PULLEY (MOTOR) (CAPSTAN REEL)
