Sony TC-SD1 - Mechanism Deck (TCM-ACLM572); Control Board, Dolby Board

— 5 —

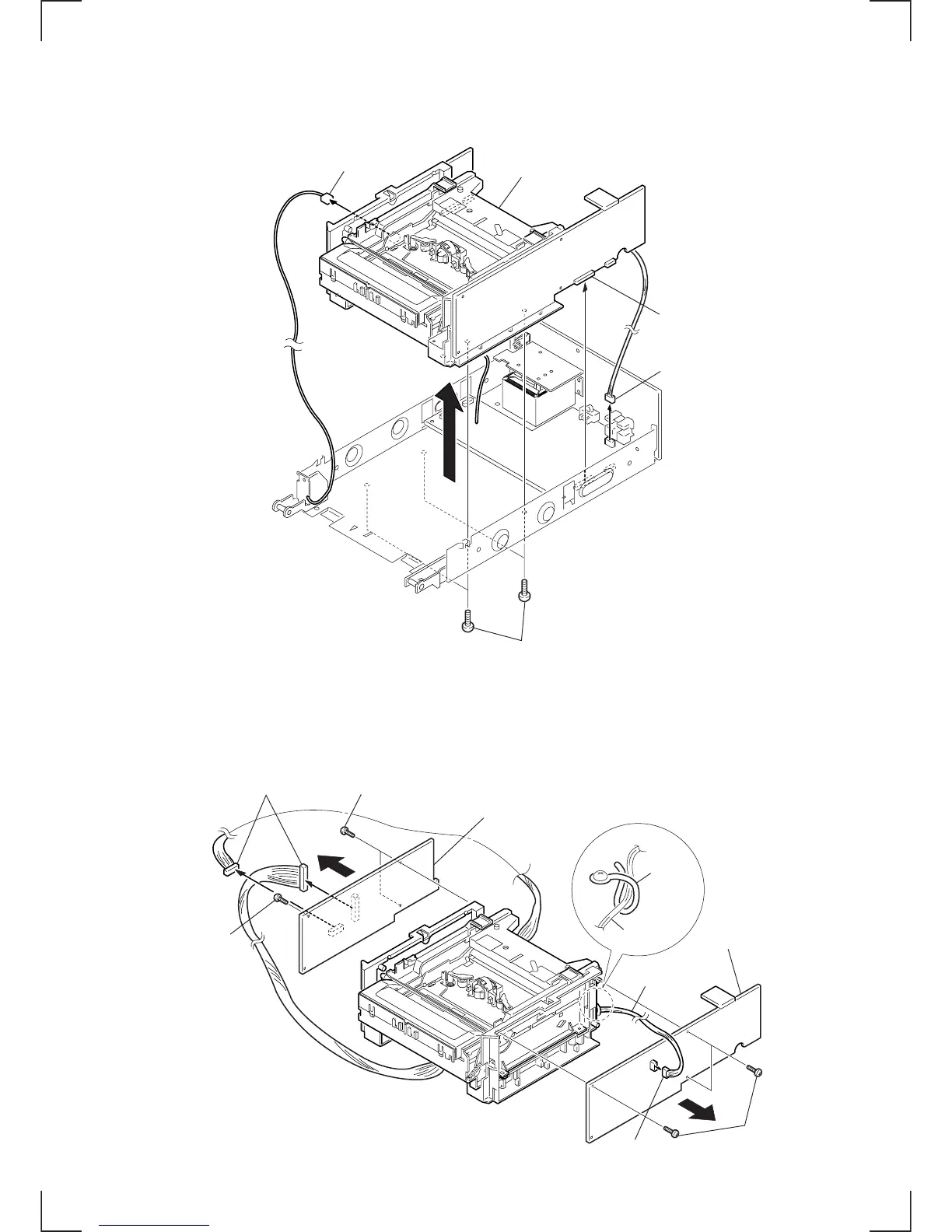

2-2. MECHANISM DECK (TCM-ACLM572)
2-3. CONTROL BOARD, DOLBY BOARD
2 Connecto
r
3 Connector
4 Connector
5 Mechanism deck (TCM-ACLM572)
1 Four screws
(+B 3
× 10)
2 Two screws
(+B 2.6
× 8)
1 Two connectors
4 CONTROL board
3 Two screws
(+B 2.6
× 8)
7 DOLBY board
6 Four screws
(+B 2.6
× 8)
5 Connector
Harness
Clamper
Harness
Precaution for assembling :
Fix the harness with the clamper.
