Sony TC-SD1 - 2 Disassembly; Case, Front Panel

— 4 —
SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

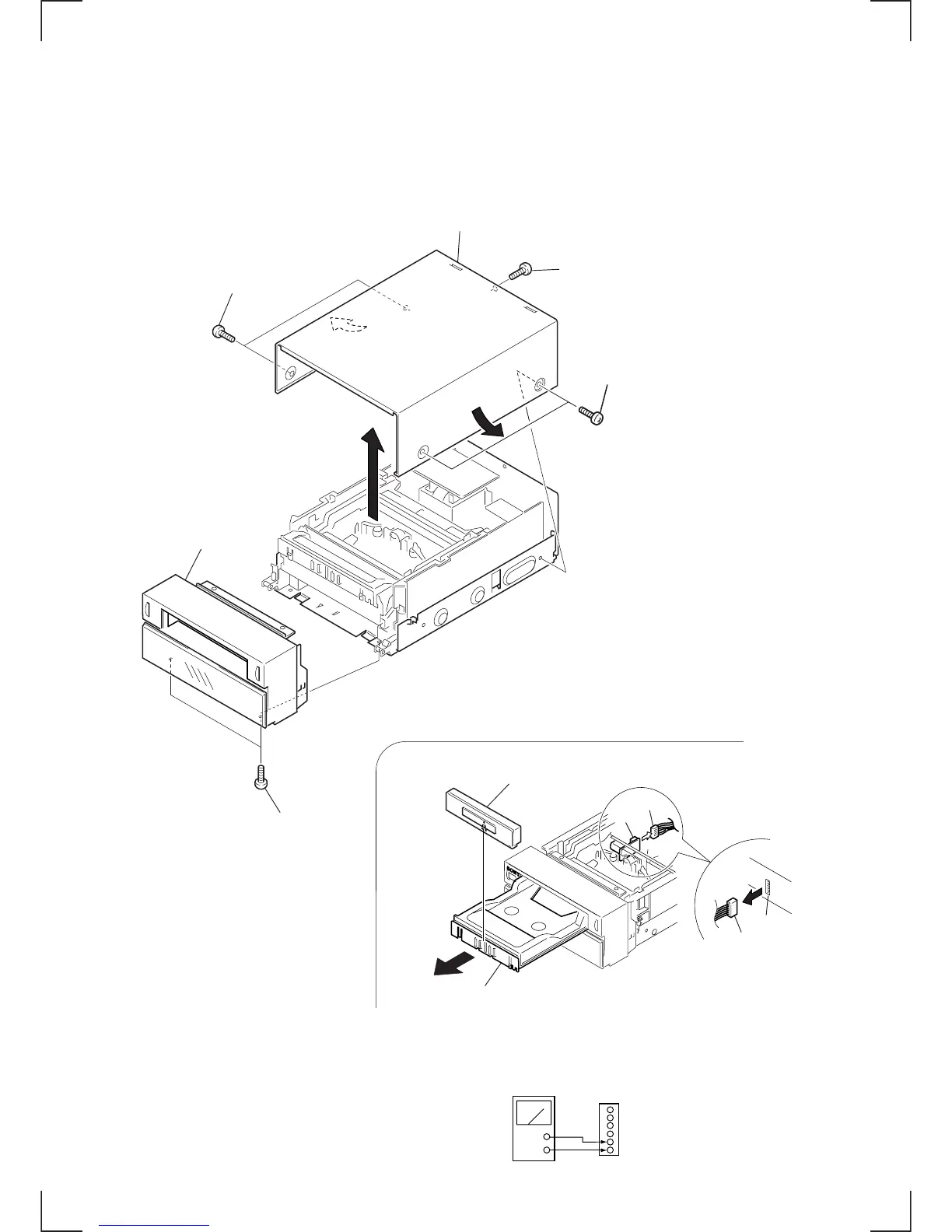

2-1. CASE, FRONT PANEL
2 Two screws,
case stopper
8 Front panel
1 Two screws,
case stopper
7 Two screws
(+B 2.6
× 8)
6 Loading panel
5 Slide the tray.
(Remove the connector from M901, supply the 6 V
power from an external regulated power supply to
pin-5 and pin-6 of CN05.)
4 Case
3 Screw (+B 2.6 × 8)
CN05
M901
Pin-5
‘
Pin-6
’
Regulated DC
power supply
Connector
Connector
Rear sid
e
Pin-1
Pin-6
CN05
1
6
+
–
