Sony TC-SD1 - Mechanism Deck Section-3 (TCM-ACLM572)

— 37 —
214
213
212
211
214
213
215
211
216
217
218
219
220
221
222
223
224
224
209
225
208
226
227
201
202
204
205
206
207
208
209
210
203
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

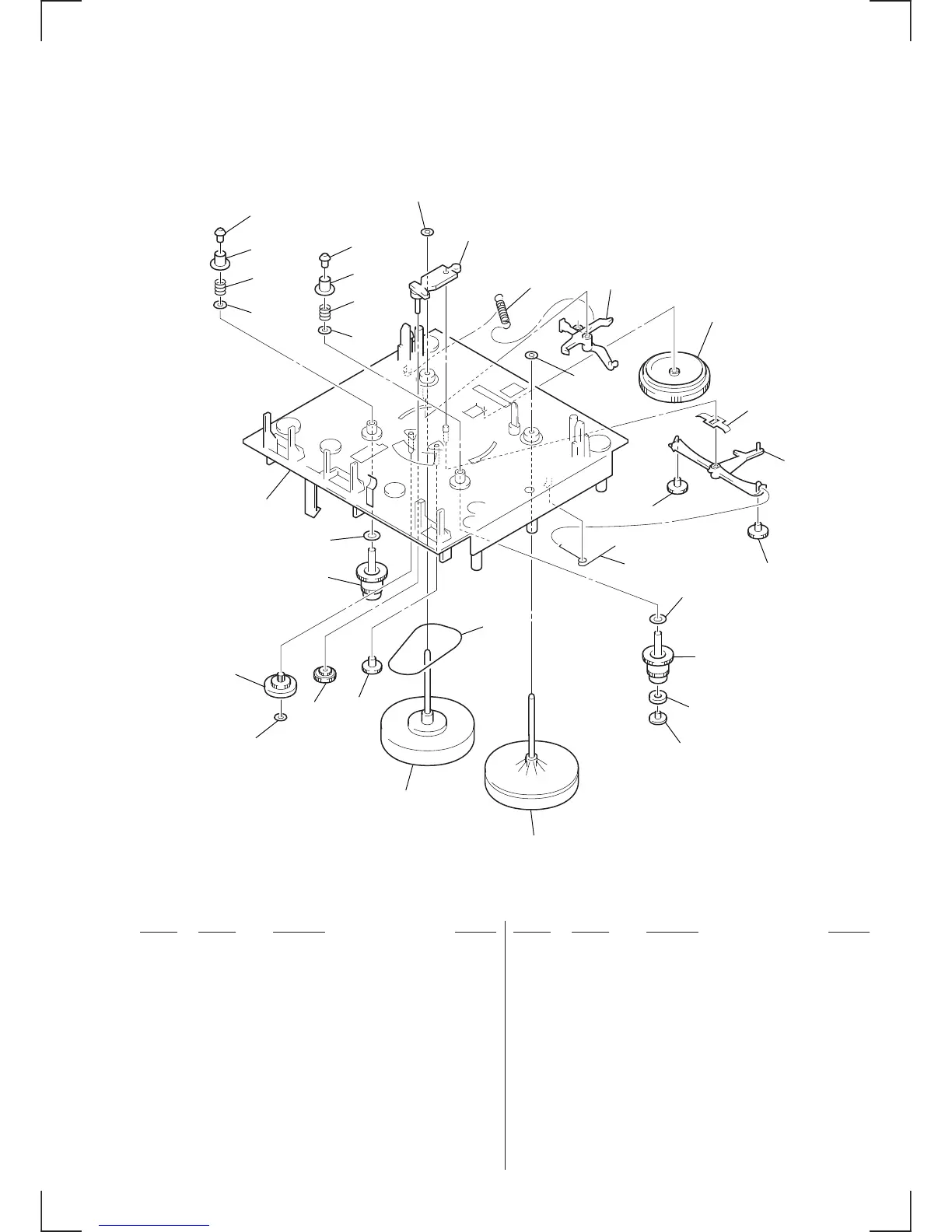

6-5. MECHANISM DECK SECTION-3 (TCM-ACLM572)
201 3-017-258-01 FLYWHEEL (R)
202 3-017-257-01 FLYWHEEL (F)
203 3-017-284-01 BELT (SUB)
204 3-017-265-01 IDLER, GEAR
205 3-017-305-01 GEAR (P)
206 3-017-283-01 WASHER, FLAT
207 3-017-304-01 CLUTCH
208 3-017-263-01 REEL, BASE
209 3-017-295-01 WASHER, FLAT
210 3-017-252-01 CHASSIS (OS)
211 3-017-298-01 WASHER (B/T)
212 3-017-299-01 SPRING (B/T) (F)
213 3-017-288-01 REEL, CAP
214 3-017-262-01 REEL, BUSHING
215 3-017-272-01 SPRING (BT)
216 3-017-281-01 WASHER, FLAT
217 3-017-256-01 ARM (PLAY)
218 3-017-275-01 LOCK, SPRING CAM
219 3-017-267-01 LOCK, ARM CAM
220 3-017-282-01 WASHER, FLAT
221 3-017-264-01 CAM, GEAR
222 3-017-266-01 BASE, LEVER
223 3-017-268-01 ARM (RF)
224 3-017-269-01 GEAR (RF)
225 3-017-276-01 ARM (RF), SPRING
226 3-017-293-01 MAGNET, PLATE
227 3-017-271-01 CAP (MG)
