21
Connections
Chapter 1 Overview

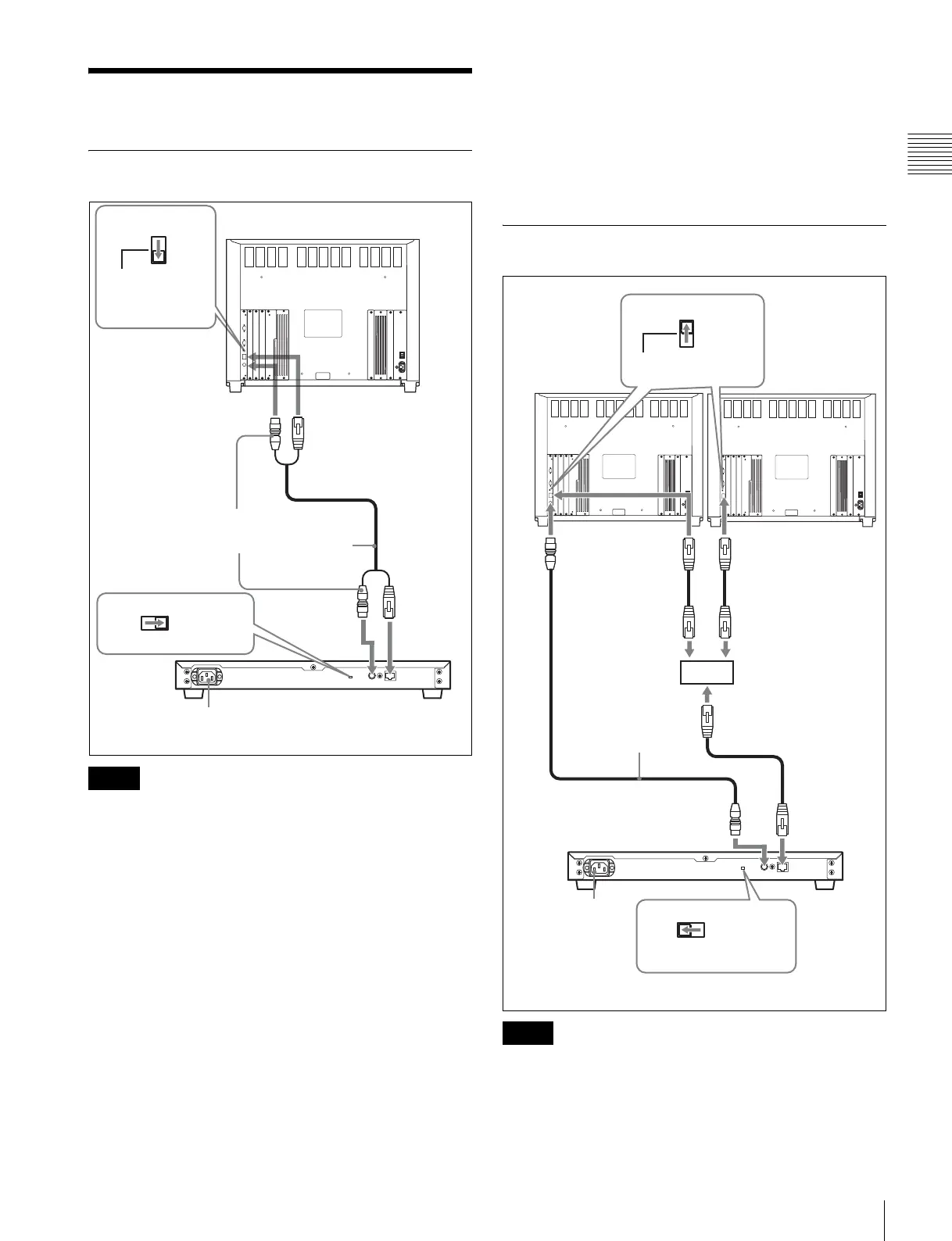

Connections
Connecting to the BKM-15R
Turn off the MAIN POWER switch of the monitor
before connecting the units.
Set the NETWORK switch of the monitor and the BKM-
15R to PEER TO PEER.
Connect the LAN (10/100) connector of the monitor and
the LAN (10/100) connector of the BKM-15R by using a
10BASE-T/100BASE-TX straight LAN cable (shield
type, optional) or the SMF-700.
When an optional LAN cable is connected, use a shield
type cable to prevent miss-operation due to noises.
Connect the DC 5V OUT connector of the monitor and
the DC 5V IN connector of the BKM-15R by using the
SMF-700.
The power is supplied from the monitor via this cable.
The connection to the AC IN socket is not necessary.
Using the BKM-15R with the AC power
Connect the AC power cord supplied with the BKM-15R
to the AC IN socket.
The AC IN connector takes precedence over the DC 5V IN
connector.
When the AC power is used, the connection to the DC 5V
IN connector is not necessary.
Connecting to the Network
Turn off the MAIN POWER switch of the monitor
before connecting the units.
Set the NETWORK switch of the monitors and the
BKM-15R to LAN.
Notes
LAN
NETWORK
PEER TO PEER
LAN
PEER TO PEER
NETWORK
BKM-15R
Monitor
LAN (10/100) connector
DC 5V OUT connector
DC 5V IN
connector
AC IN socket
LAN (10/100)
connector
When the AC power cord
is connected to the BKM-
15R, do not connect this
cable.
Set to PEER TO
PEER.
SMF-700, etc.
Set to PEER TO PEER.
Notes
LAN
NETWORK
PEER TO PEER
LAN
PEER TO PEER
NETWORK
BKM-15R
Monitor
LAN (10/100) connector
DC 5V OUT
connector
DC 5V IN connector
AC IN socket
LAN (10/100)
connector
Set to LAN.
Switching hub (with
AUTO MDI/MDI-X
function)
When the AC power
cord is connected to
the BKM-15R, do not
connect this cable.
Monitor
Set to LAN
LAN (10/100)
connector
