Sony Trinitron CPD-E530 - Bezel Assembly, H1 Board Removal

CPD-E530 (E) 1-4

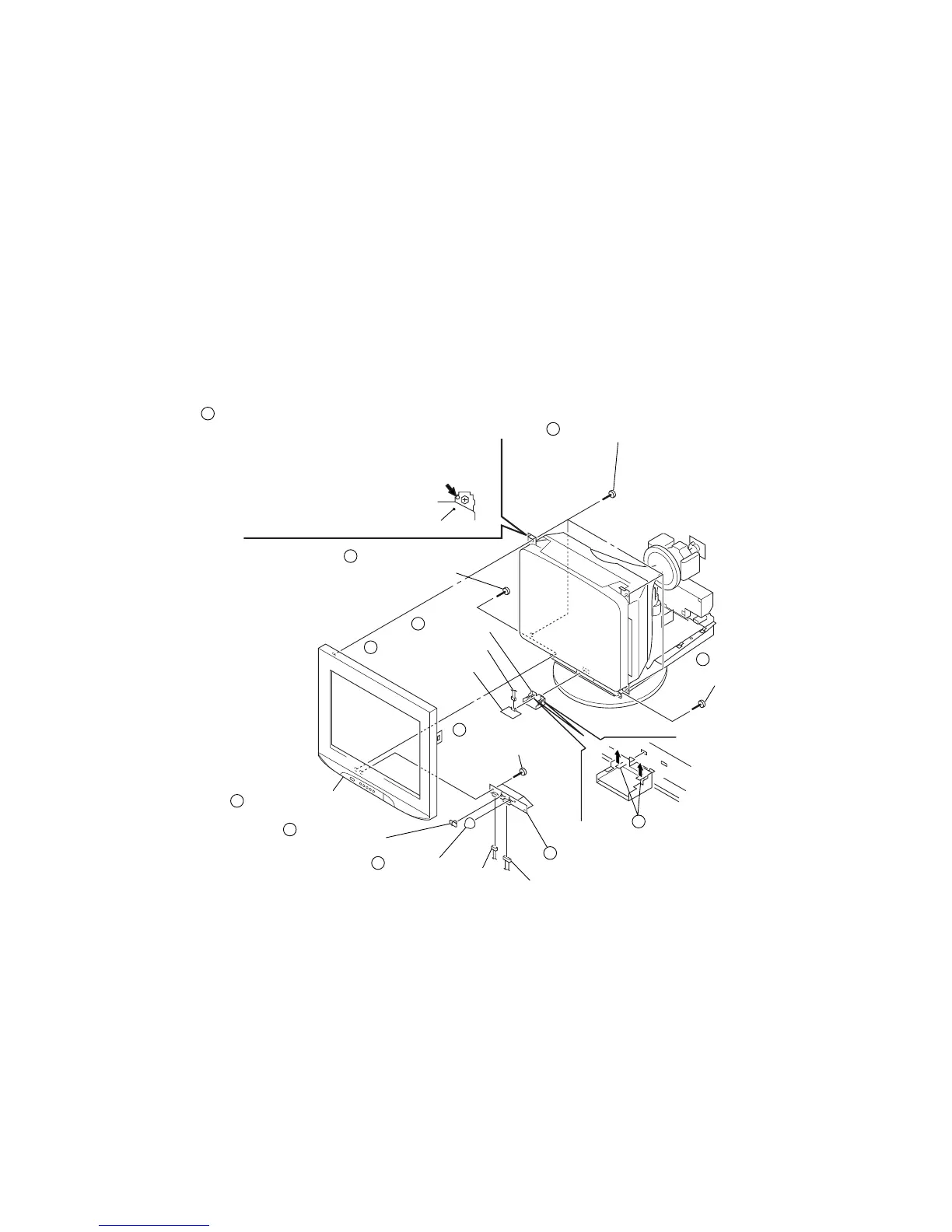

1-4. BEZEL ASSEMBLY, H1 BOARD REMOVAL
2
1
Four tapping screws (5)
5
Bezel assembly
3
Screw
(+BVTP 4 x 16)
4
Screw
(+BVTP 4 x 16)
6
Three screws
(+BVTP 3 x 10)
10
Two claws
H1 board
7
Input selector
button
8
Joy stick
12
Magnetic
MIU-221D sensor
11
L1 blacket
CN1400
CN1500
CN1401
Picture tube shield
Before removing the bezel assembly, secure
the picture tube by attaching two screws to
the picture tube shield at the positions shown
with an arrow (diagonal two places) to prevent
the picture tube from falling.
(Use the screws +BVTT 4 x 8 that fix EMI shield.)
9
