Sony Trinitron CPD-E530 - Chassis

CPD-E530 (E) 5-2
REF.NO. PART NO. DESCRIPTION REMARK
7
8
12
10
9
13
11
5
6
1
3
2
4
14
15
16

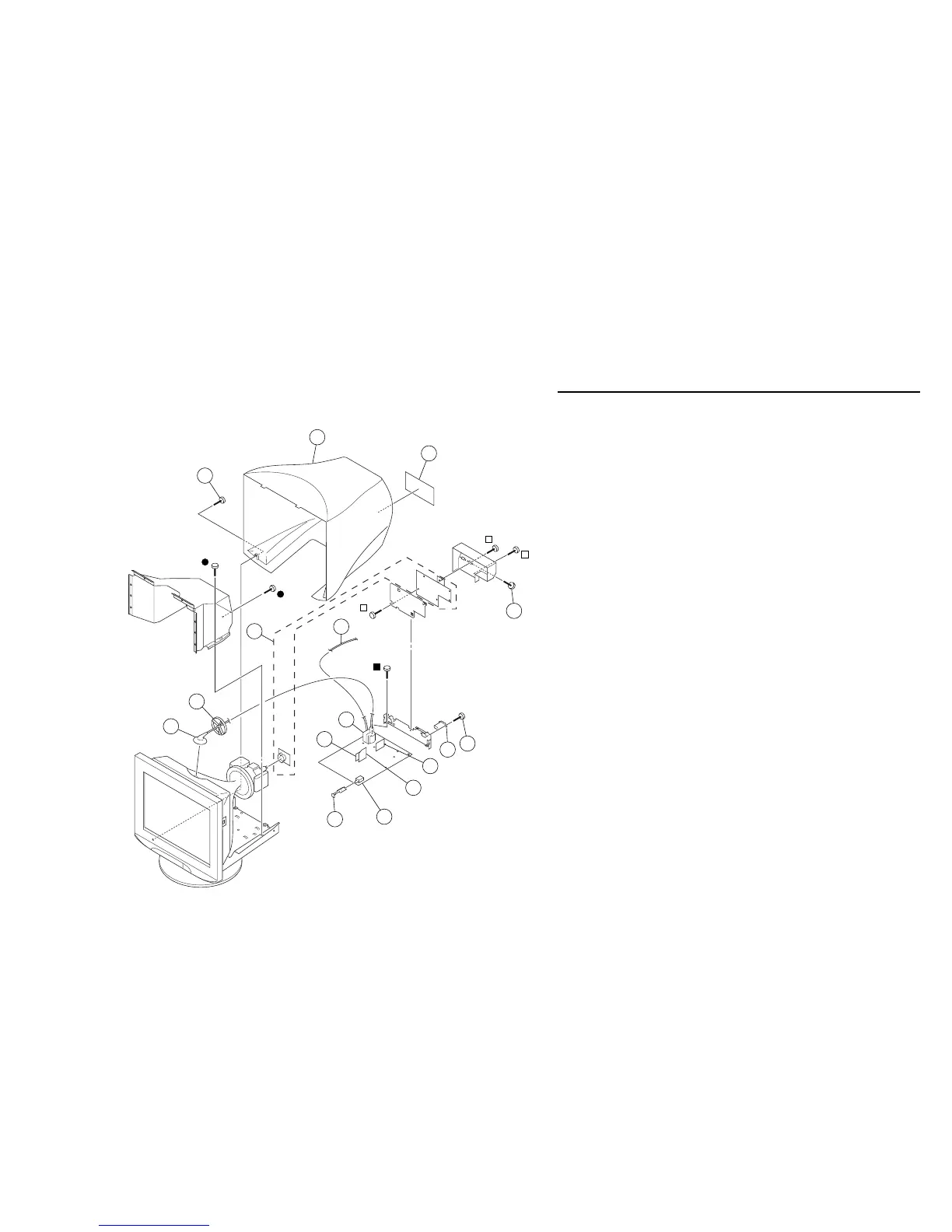

5-1. CHASSIS
z 7-685-881-09 +BVTT 4X8
s 7-685-646-79 +BVTP 3X8
x 7-685-647-79 +BVTP 3X10
1 * 8-933-472-00 A1 BOARD, COMPLETE
2 4-039-358-01 SCREW (4X16), (+) BV TAPPING
3 4-081-203-21 CABINET
4 * 4-206-564-01 INFORMATION LABEL
5 4-635-966-01 SCREW (HEX)
6 4-052-345-01 SCREW, (3X8) (+K), TAPPING
7 0 1-251-382-31 INLET, AC (WITH NOISE FILTER)
8 0 1-453-359-11 TRANSFORMER ASSY, FLYBACK
(NX-4702/KM7E)
9 * A-1333-037-A DA BOARD, COMPLETE
10 * A-1391-143-A N BOARD, COMPLETE
11 * A-1391-118-A L2 BOARD, COMPLETE
12 * A-1348-070-A D BOARD, COMPLETE
13 4-081-280-01 BAR, EXTENSION
14 1-900-238-31 WIRE ASSY, FOCUS LEAD
15 4-202-554-01 HOLDER, HV CABLE
16 1-251-642-92 CAP ASSY, HIGH VOLTAGE
