CPD-E530 (E) 5-3
REF.NO. PART NO. DESCRIPTION REMARK
74
51
52
53
57
55
56
58
62
68
72
54
71
67
66
64
60
59
73
61
63
65
75
76
77
70

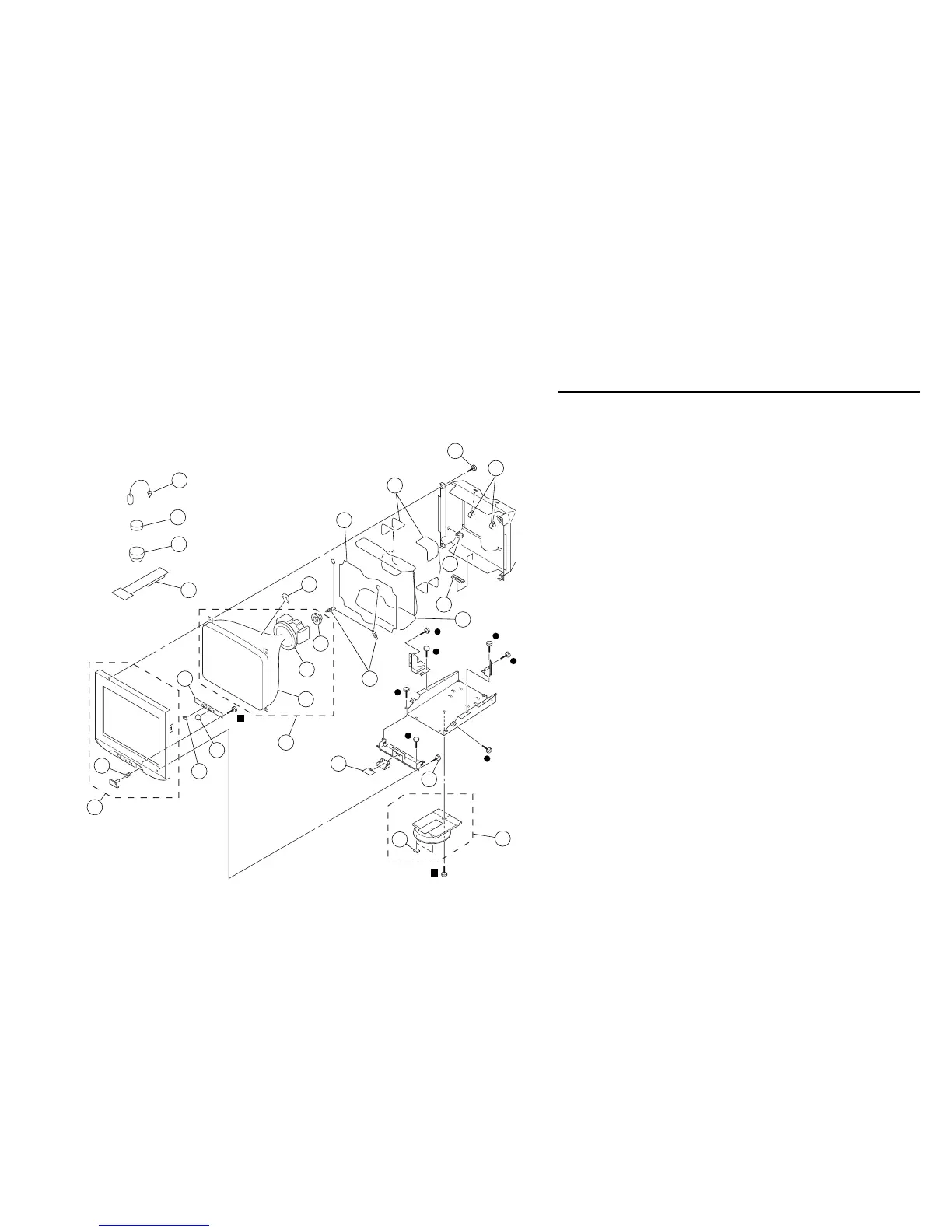

5-2. PICTURE TUBE
z 7-685-881-09 +BVTT 4X8
x 7-685-647-79 +BVTP 3X10
a 7-685-663-71 +BVTP 4X16
51 X-4200-803-1 BEZEL ASSY 52
52 4-036-405-01 SPRING, COMPRESSION
53 4-081-209-01 BUTTON, INPUT SELECTOR
54 4-039-358-01 SCREW (4X16), (+) BV TAPPING
55 * A-1372-925-A H1 BOARD, COMPLETE
56 0 8-734-053-06 ITC ASSY (21TKD-R3) 59, 60, 73
57 4-081-210-01 STICK, JOY
58 2-162-100-21 SPACER, DY
59 0 8-451-519-11 DEFLECTION YOKE Y21TKN
60 0 1-452-923-51 NECK ASSEMBLY
61 * 4-047-316-01 SPRING, EXTENSION
62 0 1-419-130-21 COIL, LANDING CORRECTION
63 0 1-419-129-21 COIL, LANDING CORRECTION
64 4-203-648-01 SCREW (5), SELF TAPPING
65 4-041-021-02 HOLDER, DEGAUSE COIL
66 4-071-175-01 HOLDER, DGC
67 4-062-670-01 SPACER, PICTURE TUBE
68 0 1-419-838-11 COIL, DEGAUSSING
70 X-4200-797-1 STAND, ASSY 71
71 * 4-060-533-01 CUSHION
72 0 8-610-158-71 SENSOR, MAGNETIC MIU-221D
73 0 8-738-860-05 PICTURE TUBE 21TKD (OCEAN COAT)
74 4-308-870-00 CLIP, LEAD WIRE
75 1-452-032-00 MAGNET, DISK; 10mmf
76 1-452-094-00 MAGNET, ROTATABLE DISK; 15mmf
77 4-051-736-21 PIECE A (90), CORRECT
