CPD-E530 (E) 3-4
B
a
a 1.8 mm
b 1.8 mm
a
b
b
A
MODE
A
B
4 : 3
388
291

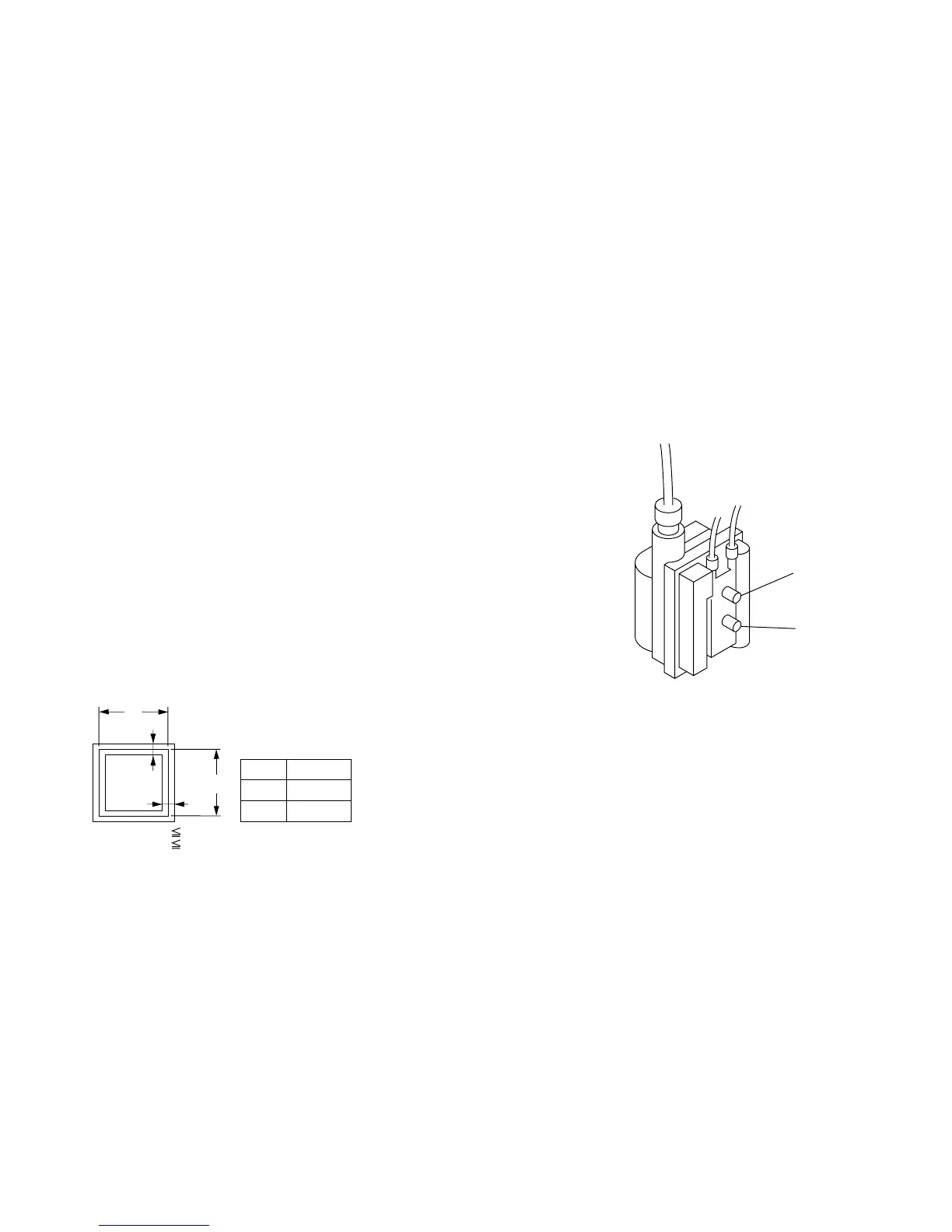

Focus 1
Focus 2
FBT
• White Balance Adjustment Specification
1. 9300 K
x = 0.283 ± 0.005
y = 0.298 ± 0.005
(All White)
2. 6500 K
x = 0.313 ± 0.005
y = 0.329 ± 0.005
(All White)
3. 5000 K
x = 0.346 ± 0.005
y = 0.359 ± 0.005
(All White)
• Vertical and Horizontal Position and Size
Specification
• Focus adjustment
Adjust the focus volume 1 and 2 for the optimum focus.
