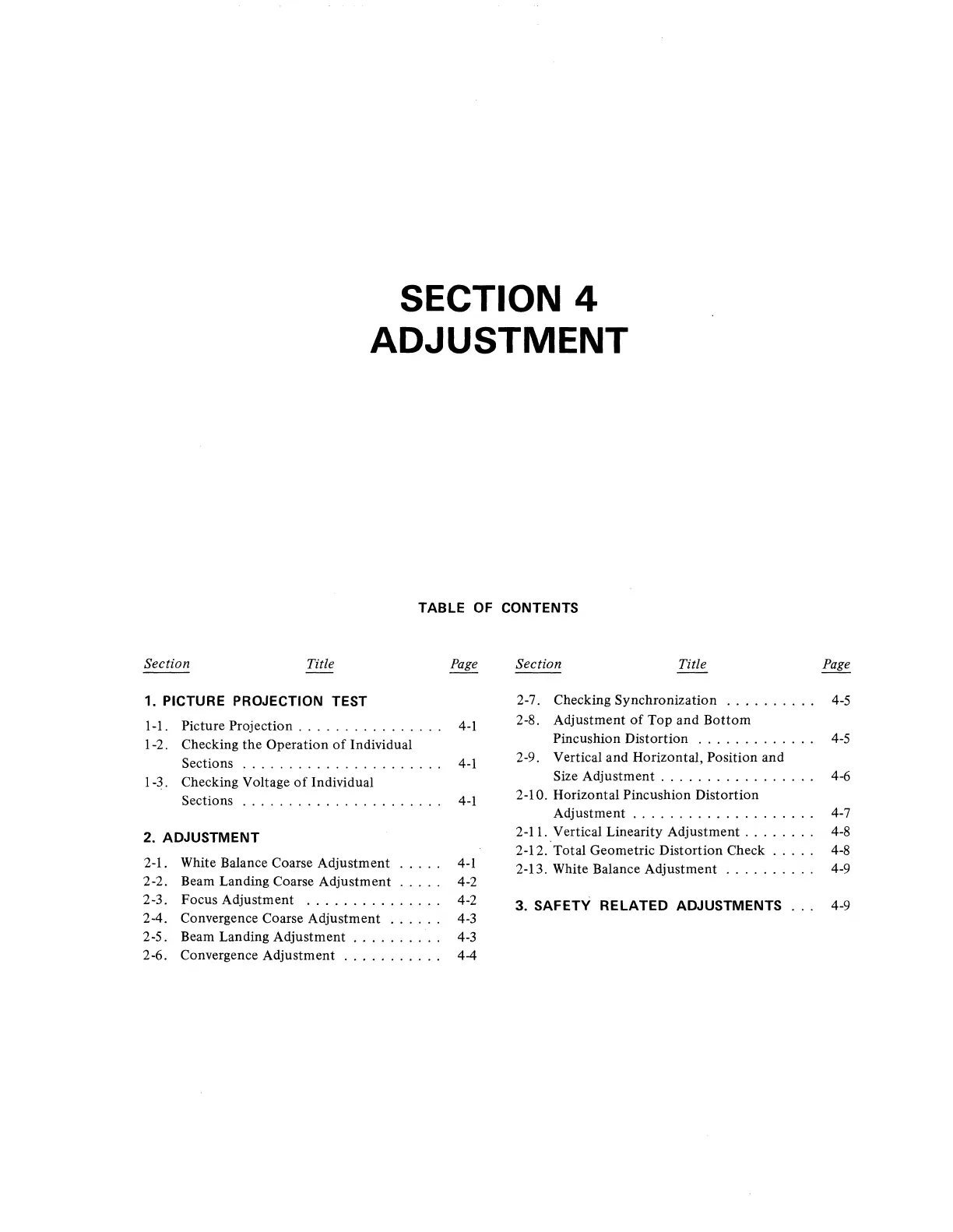

SECTION 4
ADJUSTMENT
TABLE OF CONTENTS
Section
Title
1. PICTURE PROJECTION TEST
1-1. Picture Projection. . . . . . . . . . . . . . .. 4-1
1-2. Checking the Operation of Individual
Sections . . . . . . . . . . . . . . . . . . . .
.. 4-1
1-3. Checking Voltage of Individual
Sections
... . . . . . . . . . . . . . . . . . .. 4-1
2. ADJUSTMENT
2-1. White Balance Coarse Adjustment 4-1
2-2. Beam Landing Coarse Adjustment 4-2
2-3. Focus Adjustment
............... 4-2
2-4. Convergence Coarse
Adjustment . . . . .. 4-3
2-5. Beam Landing Adjustment . . . . . . . .
.. 4-3
2-6. Convergence Adjustment . . . . . . . . .
.. 4-4
Section
Title
2-7. Checking Synchronization
.. . . . . . . .. 4-5
2-8. Adjustment
of Top and Bottom
Pincushion Distortion . . . . . . . . . . . .. 4-5
2-9. Vertical and Horizontal, Position and
Size Adjustment . . . . . . . . . . . . . . .
.. 4-6
2-10. Horizontal Pincushion Distortion
Adjustment. . . . . . . . . . . . . . . . . . .. 4-7
2-11. Vertical Linearity
Adjustment. . . . . . .. 4-8
2-12. Total Geometric Distortion
Check. . . .. 4-8
2-13. White Balance Adjustment . . . . . . . .
.. 4-9
3. SAFETY RELATED ADJUSTMENTS. .. 4-9
