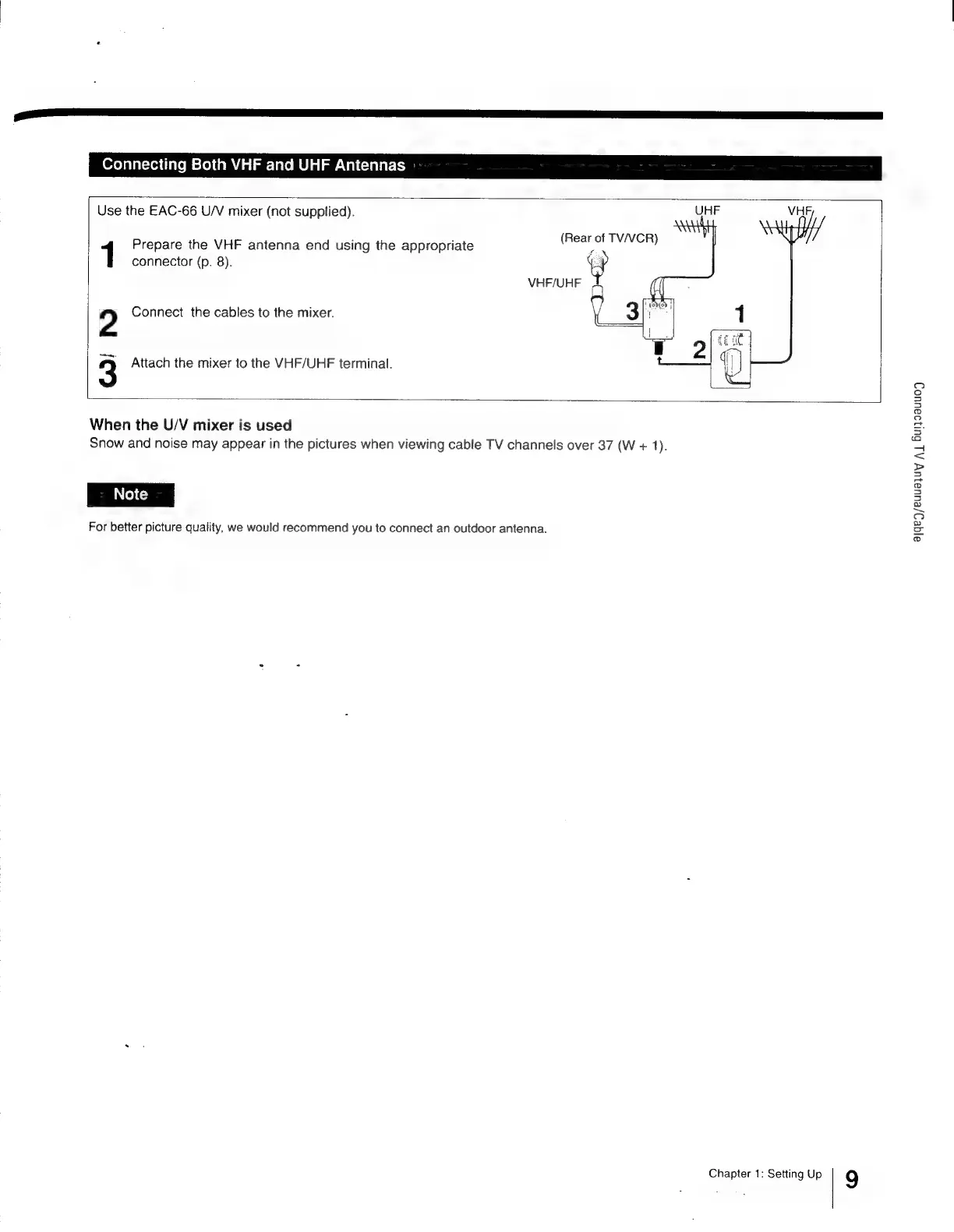

Connecting Both VHF and UHF Antennas
Use the EAC-66 U/V mixer (not supplied).
1 Prepare the VHF antenna end using the appropriate GRGE TOR)
connector (p. 8). g
VHF/UHF Q
2 Connect the cables to the mixer.
3 Attach the mixer to the VHF/UHF terminal.
UHF VHF,
When the U/V mixer is used
Snow and noise may appear in the pictures when viewing cable TV channels over 37 (W + 1
For better picture quality, we would recommend you to connect an outdoor antenna.
).
Chapter 1: Setting Up
9
