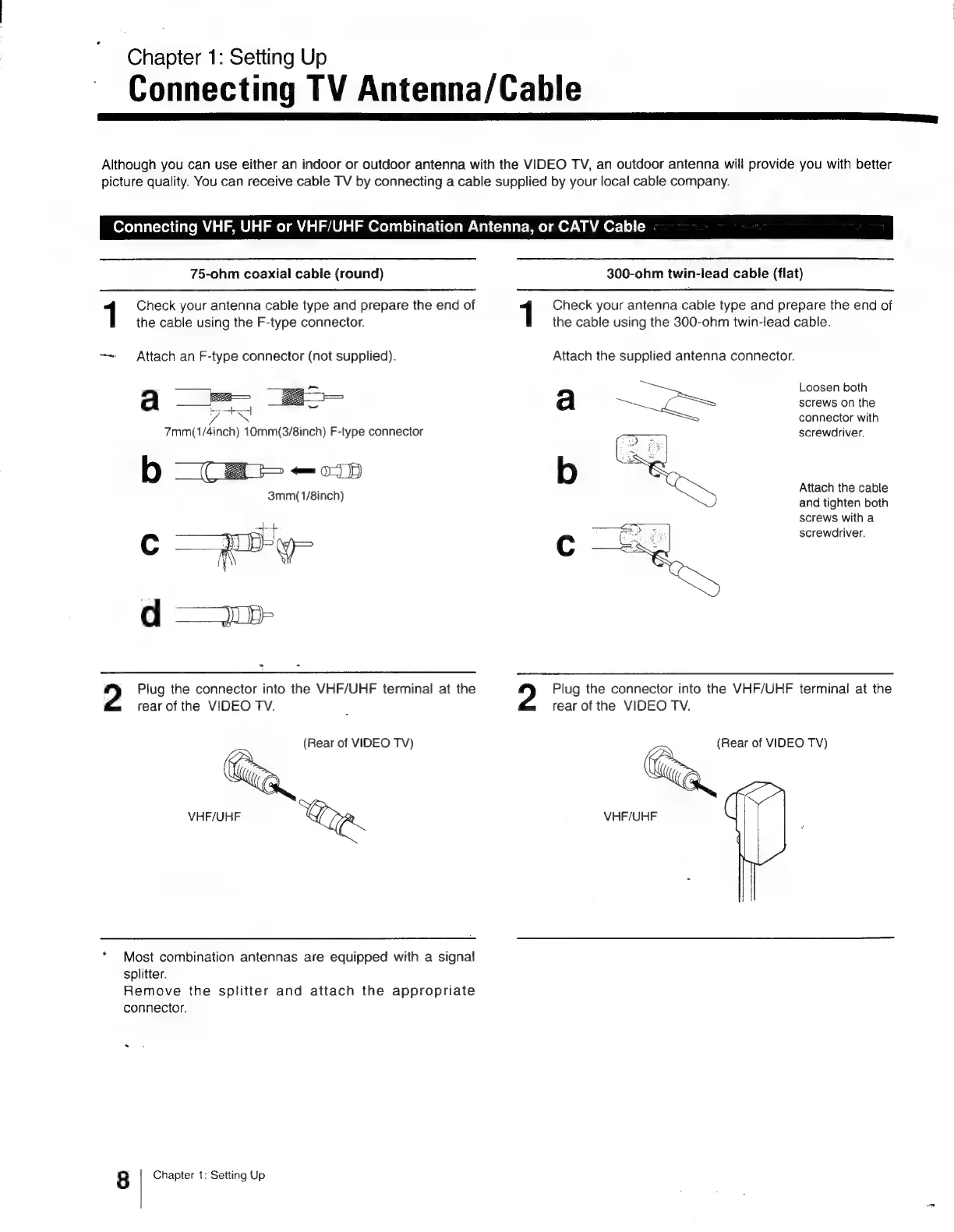

Chapter 1: Setting Up
Connecting TV Antenna/Cable
SSS SSS a a a ee ee ET
Although you can use either an indoor or outdoor antenna with the VIDEO TV, an outdoor antenna will provide you with better
picture quality. You can receive cable TV by connecting a cable supplied by your loca! cable company.
Connecting VHF, UHF or VHF/UHF Combination Antenna, or CATV Cable
75-ohm coaxial cable (round)
1 Check your antenna cable type and prepare the end of
the cable using the F-type connector.
~~ Attach an F-type connector (not supplied).
a
7mm(1/4inch) 10mm(3/8inch) F-type connector
3mm(1/8inch)
Cc y=
d ——20b-
2 Plug the connector into the VHF/UHF terminal at the
*
rear of the VIDEO TV.
(Rear of VIDEO TV)
VHF/UHF Ga
Most combination antennas are equipped with a signal
splitter.
Remove the splitter and attach the appropriate
connector.
8 Chapter 1: Setting Up
300-ohm twin-lead cable (flat)
Check your antenna cable type and prepare the end of
the cable using the 300-ohm twin-lead cable.
Attach the supplied antenna connector.
Loosen both
screws on the
connector with
screwdriver.
Attach the cable
and tighten both
screws with a
screwdriver.
Plug the connector into the VHF/UHF terminal at the
rear of the VIDEO TV.
(Rear of VIDEO TV)
y/
VHF/UHF
