— 8 —

KV-32HS20/36HS20/36HS20H/32XBR450/36XBR450/36XBR450H

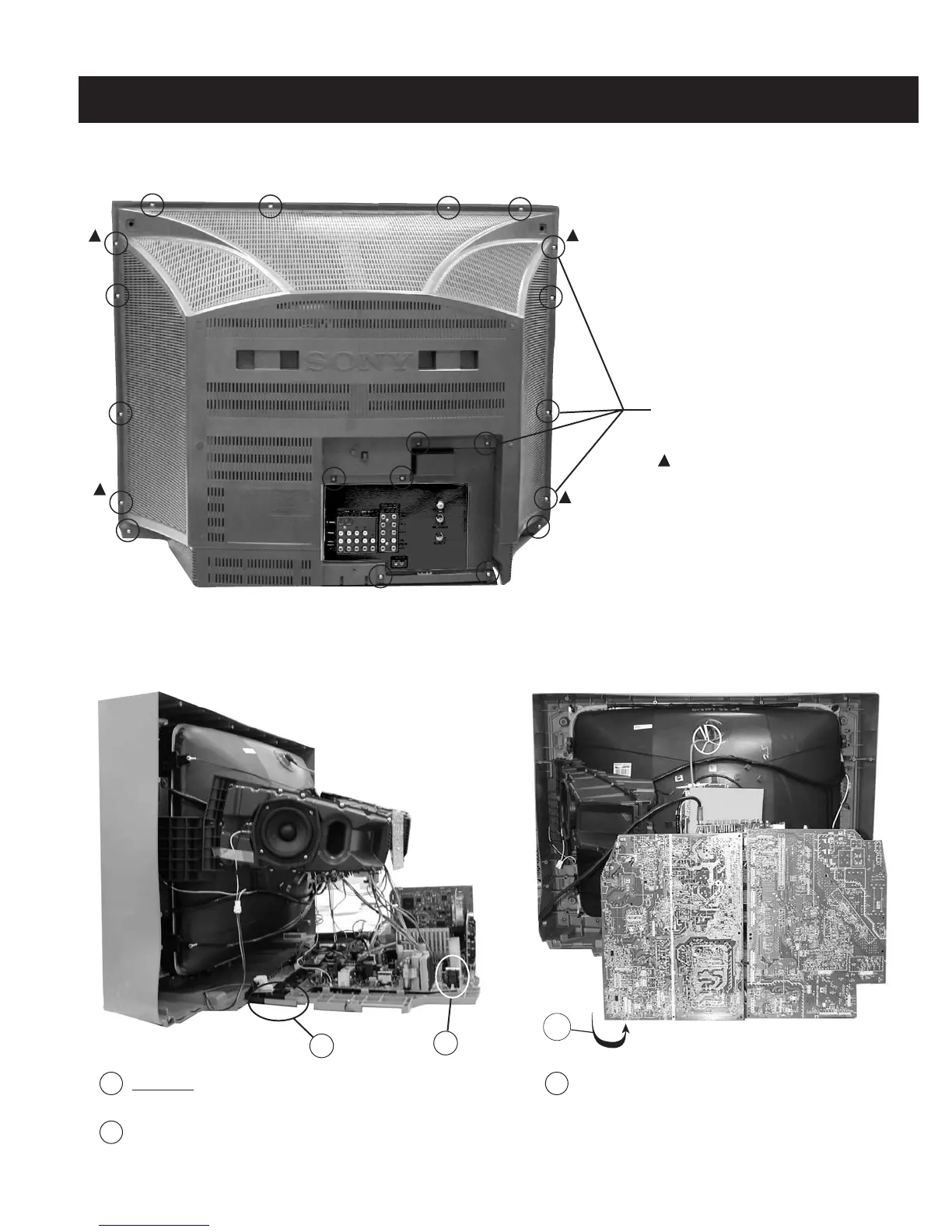

1-1. REAR COVER REMOVAL

1-2. CHASSIS ASSEMBLY REMOVAL 1-3. SERVICE POSITION

SECTION 1: DISASSEMBLY

CAUTION! - Heat sink on IC5004 is -15V. Care must be

taken not to allow heat sink to touch any other components.

Lift lever up on the right and left sides of the chassis bracket

and gently pull the chassis assembly away from the bezel.

Remove +BVTP 4 x 16 screws from

areas indicated with a circle.

Located in:

KV-36HS20/36HS20H/

36XBR450/36XBR450H Only

Pull up and rotate both the A and D boards in order to

service the unit.
