— 92 —
KV-32HS20/36HS20/36HS20H/32XBR450/36XBR450/36XBR450H

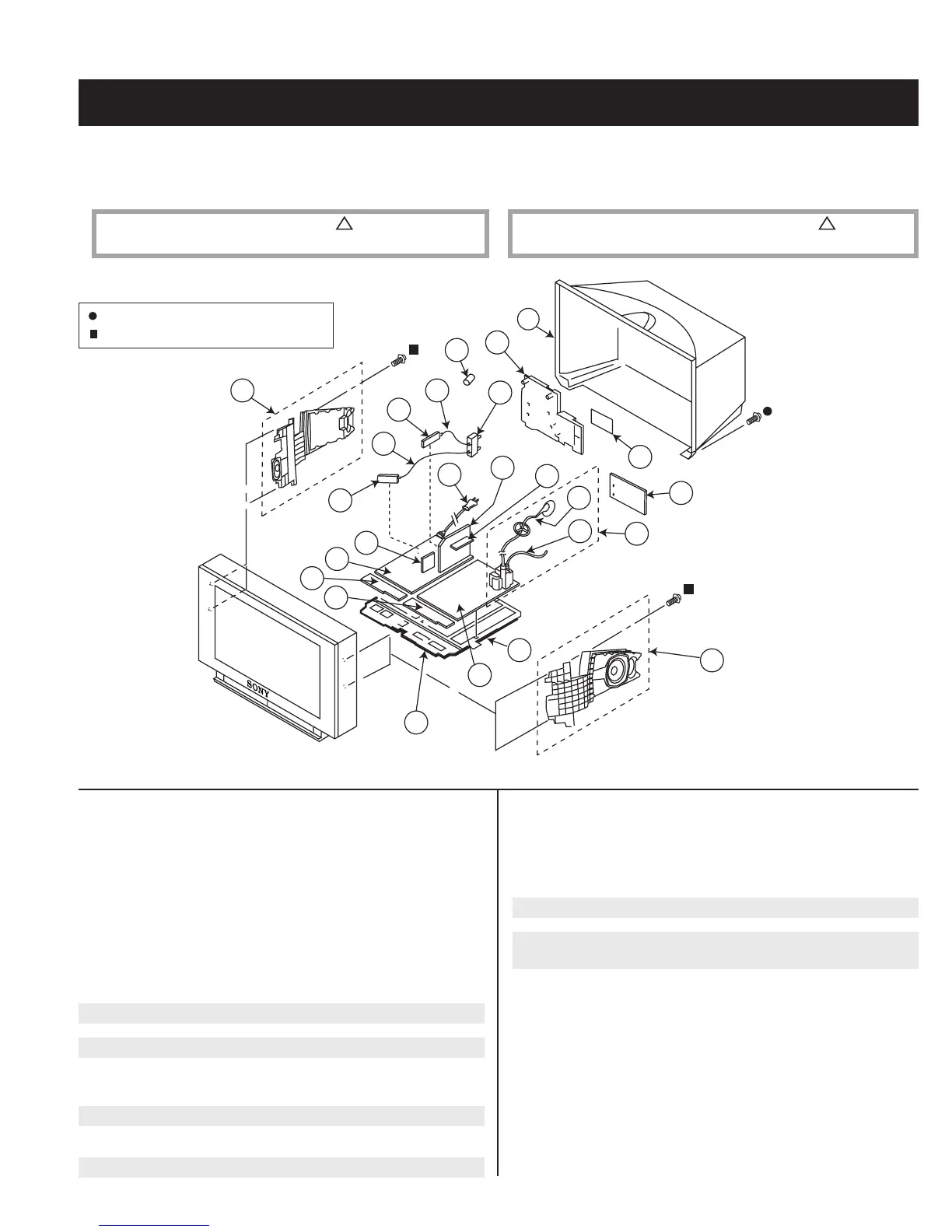

SECTION 6: EXPLODED VIEWS
Components not identifi ed by a part number or
description are not stocked because they are seldom
required for routine service.
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es par un trame et une marque
!
sont critiques
pour la securite. Ne les remplacer que par une piece portant le numero specifi e.
The component parts of an assembly are indicated by
the reference numbers in the far right column of the parts
list and within the dotted lines of the diagram.
*
Items marked with an asterisk are not stocked since
they are seldom required for routine service. Expect
some delay when ordering these components.
1
2
4
6
7
8
9
10
11
12
13
14
16
17
23
3
5
18
24
25
22
19
20
21
15
6-1. CHASSIS
* 1 A-1372-970-A HA BOARD, MOUNTED
* 2 A-1372-904-A HB (COM) BOARD, MOUNTED
* 3 A-1346-947-A D BOARD, COMPLETE
(KV-32HS20/32XBR450 ONLY)
The high voltage leads associated with the FBT on this board are not
included and must be ordered separately (see 19-20).
* 3 A-1346-948-A D BOARD, COMPLETE
(ALL EXCEPT KV-32HS20/32XBR450)
The high voltage leads associated with the FBT on this board are not
included and must be ordered separately (see 19-20).
* 4 A-1299-481-A A BOARD, COMPLETE
* 5 4-075-828-01 BRACKET, MAIN
!
6 8-598-501-30 TUNER (BTF-FA402)
* 7 1-555-400-00 CABLE, PIN
!
8 8-598-542-20 TUNER (BTF-WA412)
* 9 1-557-009-31 CABLE, P-P
10 1-771-787-11 SWITCH, RF ANTENNA
!
11 1-790-316-21 CORD, AC POWER(WITH CONNECTOR)
* 12 A-1136-200-A B BOARD, COMPLETE
* 13 A-1136-117-A BC BOARD, COMPLETE
*
!
14 4-075-829-01 BRACKET, U
15 4-077-820-01 LABEL, TERMINAL
* 16 A-1373-817-A U (COM) BOARD, MOUNTED
17 4-075-833-01 COVER, REAR
(ALL EXCEPT KV-32HS20/32XBR450)
17 4-075-821-01 COVER, REAR
(KV-32HS20/32XBR450 ONLY)
!
18 1-453-346-11 FBT ASSY NX-6000//J1J4 19-20
!
19 1-900-805-19 WIRE ASSY, FOCUS HV
!
20 1-251-715-22 CAP ASSY, HIGH-VOLTAGE
21 1-529-812-31 SPEAKER BOX LEFT
(ALL EXCEPT KV-32HS20/32XBR450)
21 1-529-811-31 SPEAKER BOX LEFT
(KV-32HS20/32XBR450 ONLY)
22 1-529-812-41 SPEAKER BOX RIGHT
(ALL EXCEPT KV-32HS20/32XBR450)
22 1-529-811-41 SPEAKER BOX RIGHT
(KV-32HS20/32XBR450 ONLY)
* 23 A-1391-048-A S BOARD, MOUNTED
24 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
* 25 4-075-830-02 BRACKET, H
7-685-663-79 SCREW +BVTP 4X16 TYPE2 TT(B)
4-064-929-02 SCREW, TP+TWH 4X25
REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION [Assembly Includes]
