— 93 —
KV-32HS20/36HS20/36HS20H/32XBR450/36XBR450/36XBR450H
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es par un trame et une marque
!
sont critiques
pour la securite. Ne les remplacer que par une piece portant le numero specifi e.
42
43
44
45
46
47
48
49
50
51
53
54
52
56
55
36
37
38
34
35
39
32
33
30a
31
36
37
38
34
35
40
41
39
32
33
30

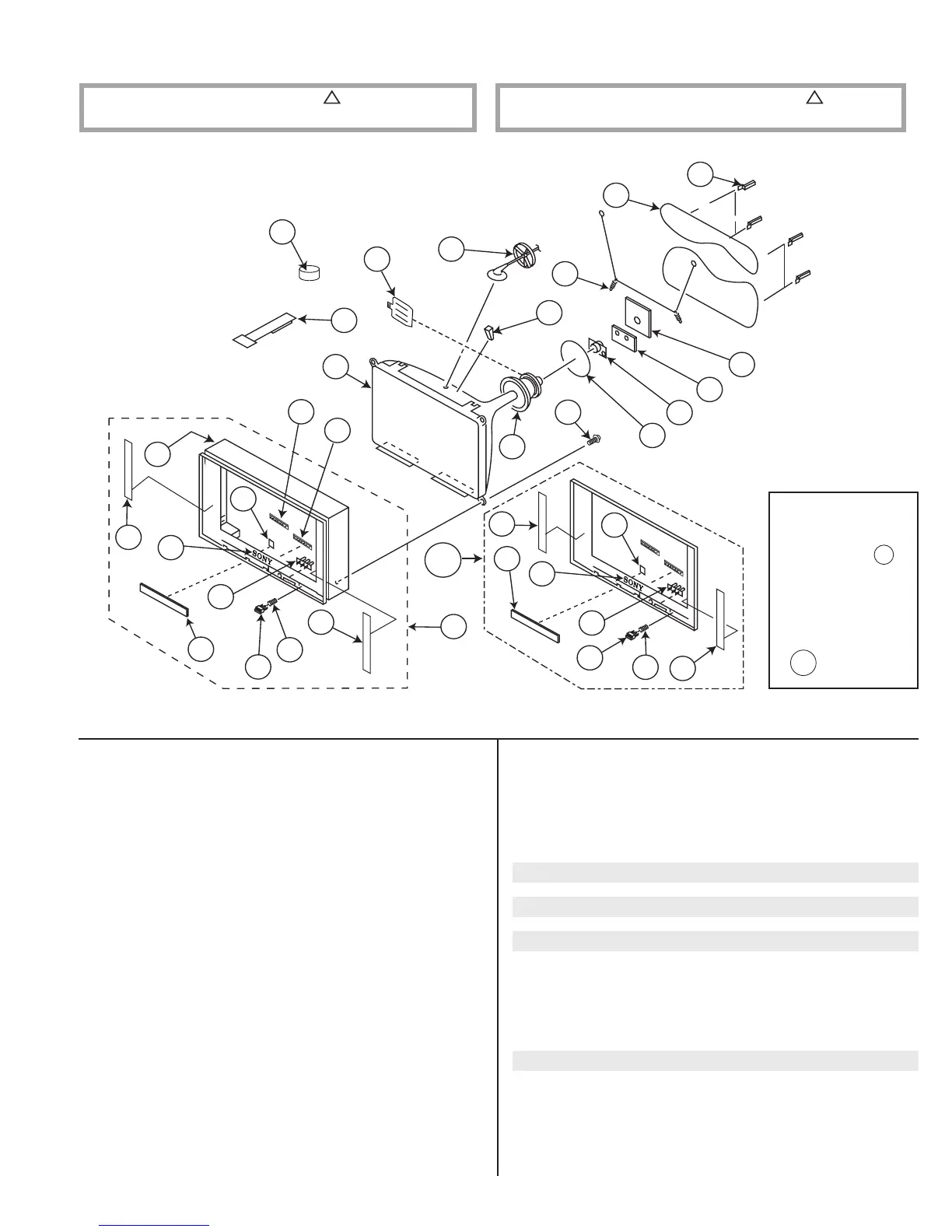

6-2. PICTURE TUBE (KV-32HS20/32XBR450 ONLY)
30 A-1017-303-A BEZNET COMPLETE ASSY 31-39
(KV-32XBR450 ONLY)
30 X-4038-873-1 BEZNET ASSY 31-39
(KV-32HS20 ONLY)
30a A-1501-900-A BEZEL COMPLETE ASSY 32-39
(KV-32XBR450 ONLY)
30a X-4038-979-1 BEZEL ASSY 34-39
(KV-32HS20 ONLY)
* 31 4-075-820-01 CABINET
32 GRILL, SPEAKER (L)
(KV-32XBR450 ONLY)
33 GRILL, SPEAKER (R)
(KV-32XBR450 ONLY)
34 4-042-593-11 SPRING, COMPRESSION
35 4-075-823-01 GUIDE, LED
36 4-075-822-21 DOOR, PAINTED
(KV-32XBR450 ONLY)
36 4-075-822-31 DOOR, PAINTED
(KV-32HS20 ONLY)
37 3-704-179-81 EMBLEM (NO.9), SONY
(KV-32XBR450 ONLY)
37 3-704-179-02 EMBLEM (NO.9), SONY
(KV-32HS20 ONLY)
38 4-075-824-21 BUTTON, POWER
(KV-32XBR450 ONLY)
38 4-075-824-31 BUTTON, POWER
(KV-32HS20 ONLY)
39 4-076-673-03 DAMPER, DOOR
40 4-075-825-01 BUTTON, MULTI
41 4-075-826-01 BUTTON, MENU
!
42 8-735-047-05 CRT 34RSN
!
43 8-451-512-21 DY Y34RSC-Y
44 1-451-498-21 COIL, NA ROTATION
!
45 8-453-009-21 NA325-M2
* 46 A-1372-833-A W BOARD, MOUNTED
* 47 A-1332-075-A C BOARD, MOUNTED
48 4-053-005-01 SPACER, DY
49 4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
50 4-036-329-01 SPRING (B), TENSION
!
51 1-416-827-21 COIL, DEGAUSSING
52 4-065-895-11 HOLDER, DGC
53 3-704-372-71 HOLDER, HV CABLE
54 4-062-047-02 PIECE A(110), CONV CORRECT
55 1-452-885-11 MAGNET, LANDING
56 4-057-714-01 PIECE TLH CONVERGENCE
REF.NO. PART NO. DESCRIPTION [Assembly Includes] REF.NO. PART NO. DESCRIPTION
NOTE:
• When replacing the CRT,
please order Item
30
in order to replace the
entire Beznet.
• When replacing only the
Bezel, please order Item
30a
only.
