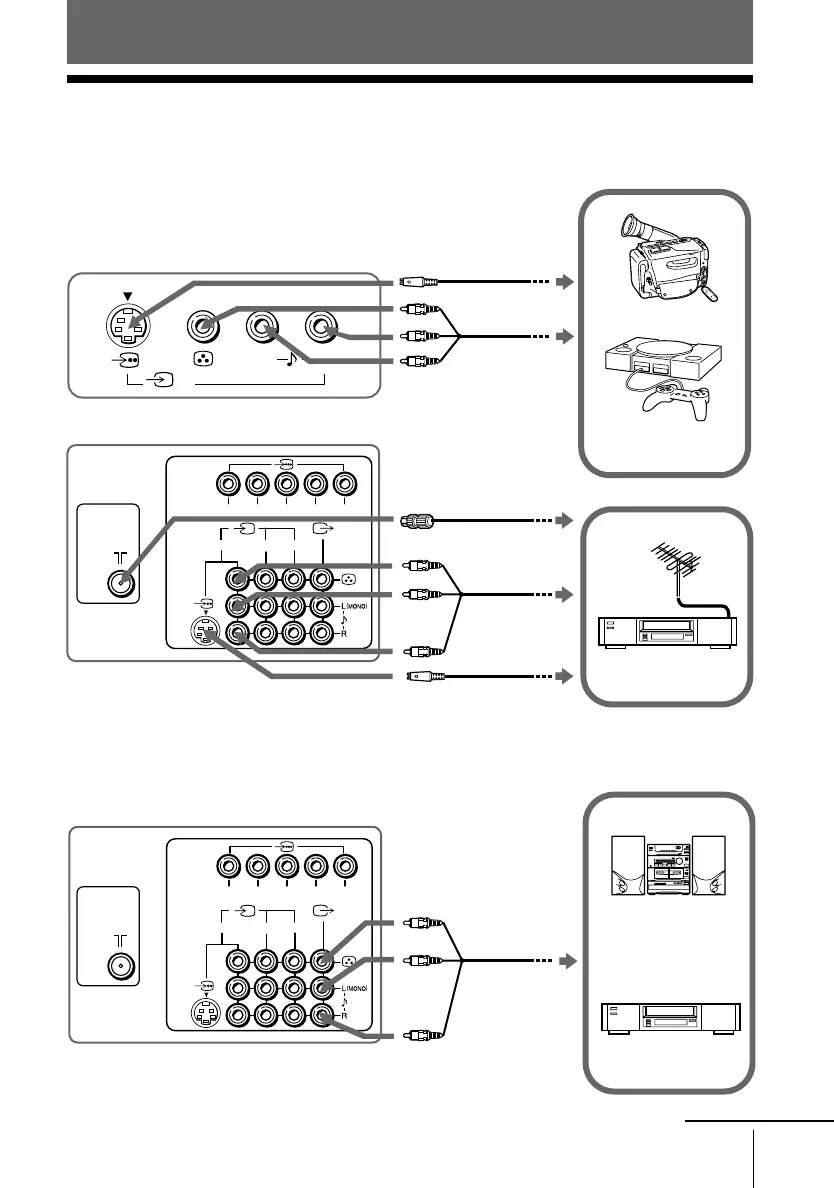

x Connecting optional components
Connecting to the video input terminal ( t )
Connecting to the monitor output terminal ( T )
Additional Information
TV front panel
Video game
equipment
TV rear panel
Audio system
123
RLY
C
B C R
3
L(MONO)
R
Audio/Video cable
(not supplied)
123
RLY
C
B C R
S Video cable
(not supplied)
Antenna cable
(not supplied)
VCR
TV rear panel
VCR
S Video cable
(not supplied)
Audio/Video cable
(not supplied)
Audio/Video cable
(not supplied)
Camcorder
