Sony TRINITRON KV-AR34M3 - Terminal Bracket and J Board Removal; D2 Board Removal; H1 and H2 Boards Removal; P5 Board Removal

– 8 –
KV-AR34M36/AR34M64/AR34M66/AR34M94
RM-993
KV-AR34M60
RM-995

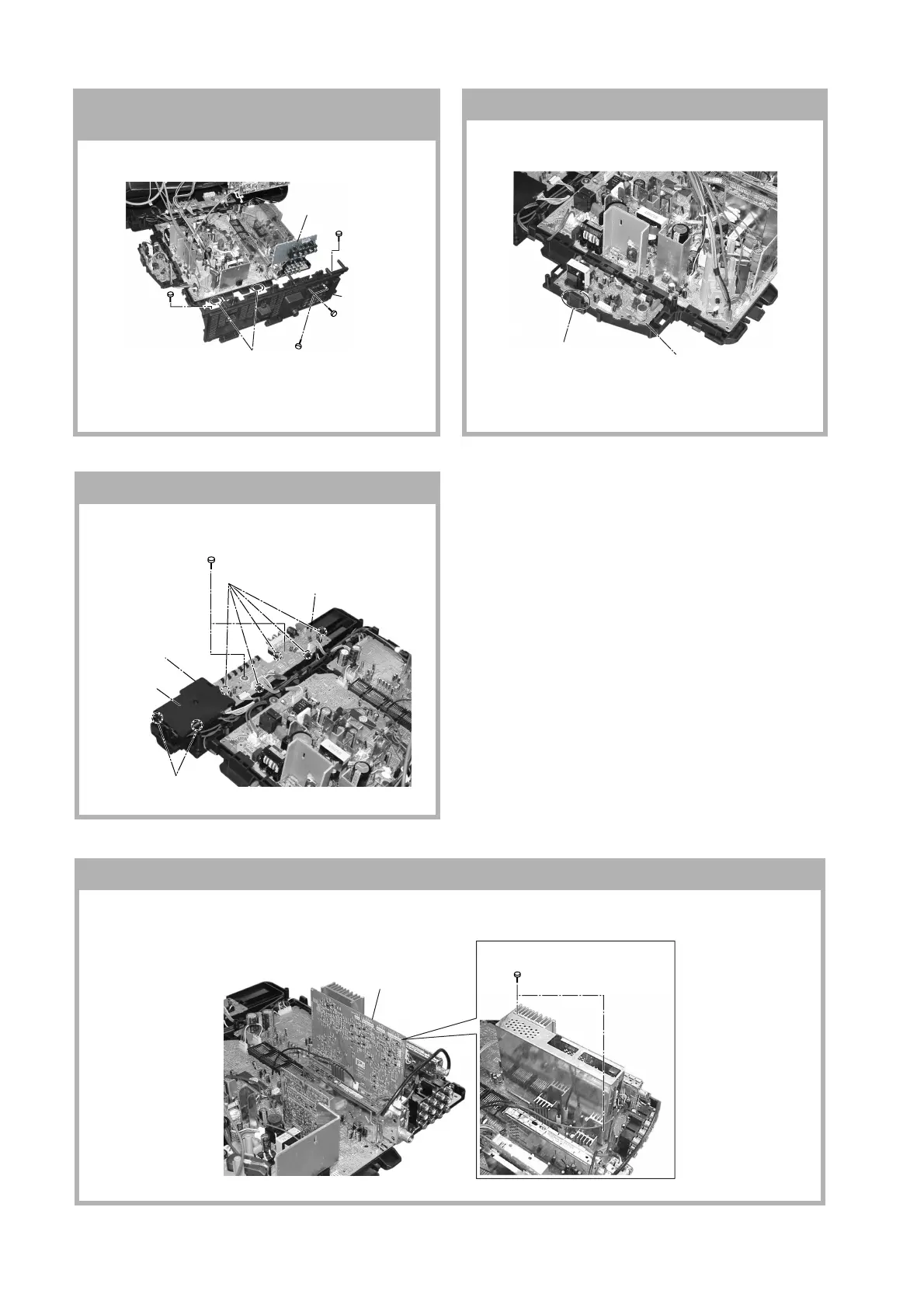

1-9. H1 AND H2 BOARDS REMOVAL
1-10. P5 BOARD REMOVAL (EXCEPT KV-AR34M60)
1-7. TERMINAL BRACKET AND J BOARD
REMOVAL
1-8. D2 BOARD REMOVAL
6 Two Hooks
3 One screw
(+BVTP 4 × 16)
2 One screw
(+BVTP 3 × 12)
1 One screw
(+BVTP 3 × 12)
4 Two screws
(+BVTP 3 × 12)
5 J Board
7 Terminal bracket
2 D2 Board
1 One Hooks
1 P5 Board
(Except KV-AR34M60)
2 Two screws
(+BVTP 3x12)
6 H2 Board
5 Cover, H
4 Two Hooks
2 Five hooks
3 H1 Board
1 Two screws (Washer head)
(+BVTP 3 x12)
Note:
• Firstly, please make sure the shield case with two screws (+BVTP 3 x 12) is remove.
