Sony TRINITRON KV-AR34M3 - 1 Disassembly; Rear Cover Removal; Speaker Removal; Chassis Assy Removal

– 7 –
KV-AR34M36/AR34M64/AR34M66/AR34M94
RM-993
KV-AR34M60
RM-995

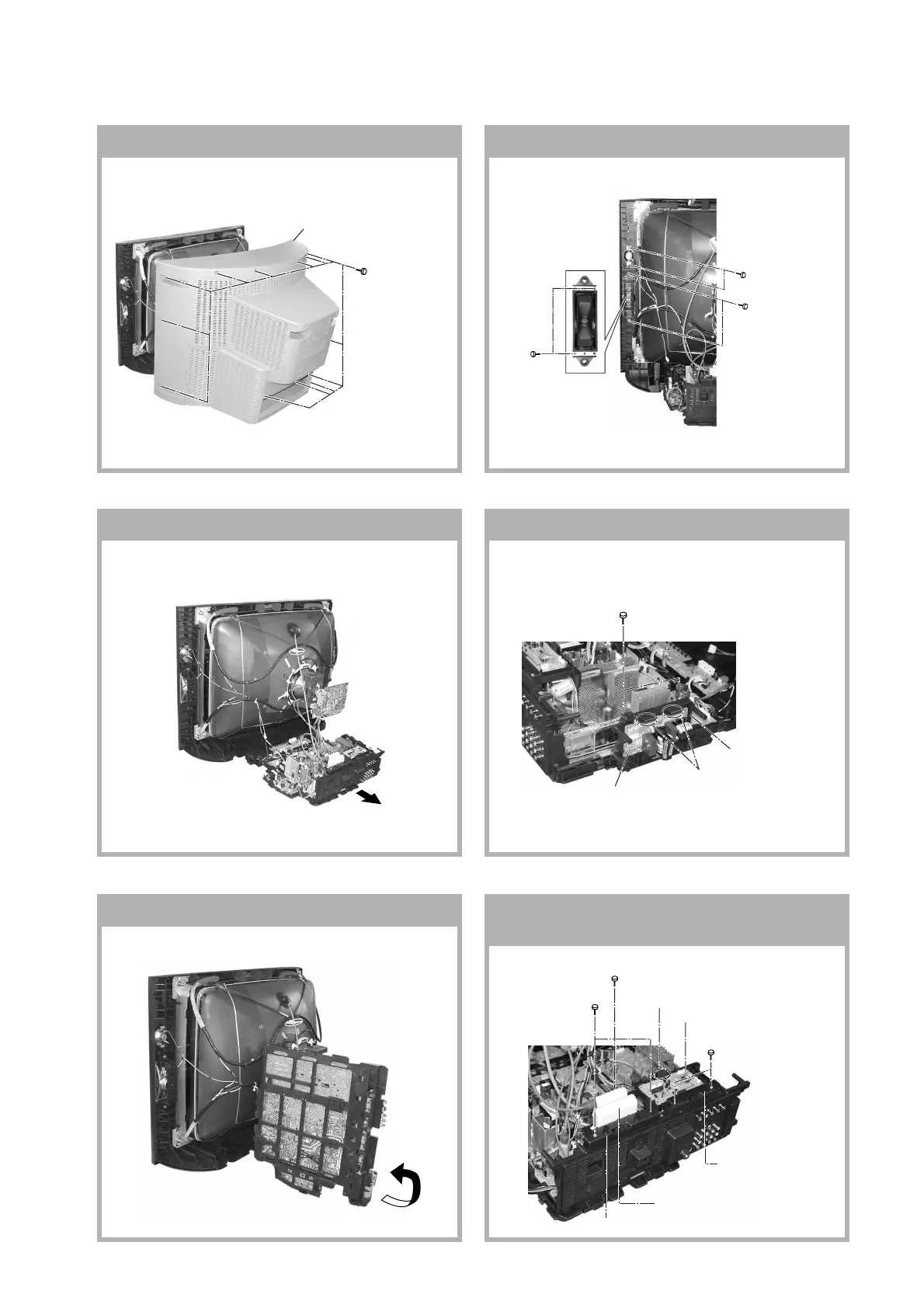

SECTION 1
DISASSEMBLY
1-1. REAR COVER REMOVAL
1-2. SPEAKER REMOVAL
1-3. CHASSIS ASSY REMOVAL 1-4. F BOARD REMOVAL
1-5. SERVICE POSITION
1-6. HV CAP BLOCK, PWB HOLDER AND
DH BOARD REMOVAL
1 Thirteen screws
(+BVTP 4 × 16)
2 Rear cover
3 Two screws
(+BVTP 4 × 16)
1 Two screws
(+BVTP 4 × 16)
2 Two screws
(Washer Head) (+P4x16)
1 Two screws (+BVTP 3x12)
4 F Board
2 F Board bracket
3 Two hooks
3 DH Board
(KV-AR34M60/M64/M66/M94)
7 HV Cap block
2 PWB holder
5 Two screws
(+BVTP 3x12)
1 Two screws
(+BVTP 3x12)
4 One Hook
6 One screw
(+BVTP 4x16)
8 Bracket HVC
