Sony TRINITRON KV-AR34M3 - Page 83

KV-AR34M36/AR34M64/AR34M66/AR34M94
RM-993
KV-AR34M60
RM-995
KV-AR34M36/AR34M64/AR34M66/AR34M94
RM-993
KV-AR34M60
RM-995
A
12345 67
B
C
D

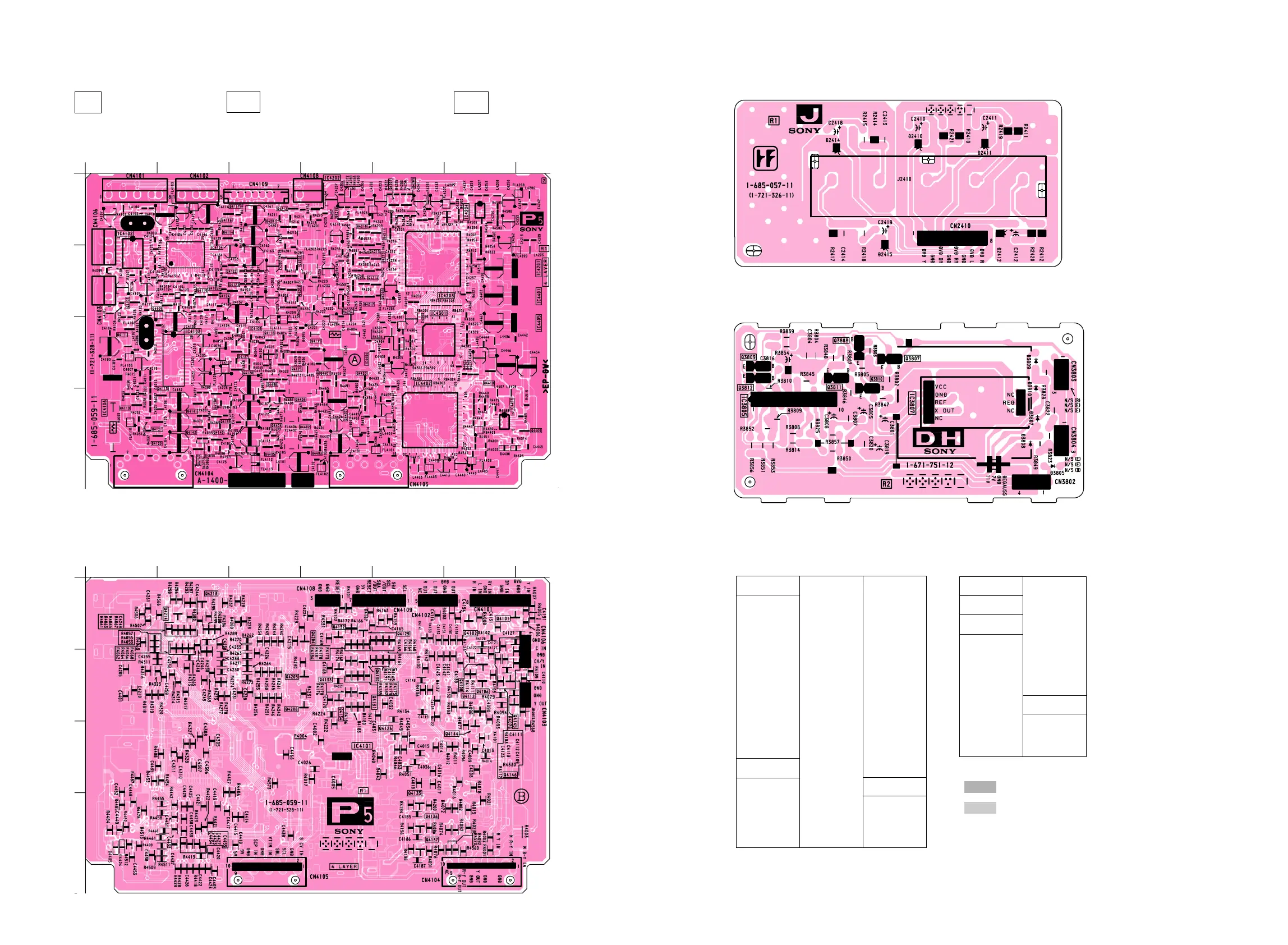

PRINTED WIRING BOARDS
– P5 Board – (Component Side) (Except KV-AR34M60)
– 102 –– 101 –
– P5 Board – (Conductor Side)
[DVD TERMINAL]
J
[MAGNETIC FIELD CORRECTION]
DH
[PIP, DVD SW, DIGITAL TEXTURE ENHANCER]
P5
A
12345 67
B
C
D
– J Board –
– DH Board – (Except KV-AR34M36)
• :Pattern from the side which enables seeing.
• :Pattern from the rear side.
DIODE
P5 BOARD (Component Side)
Q4114 A-2
Q4115 C-4
Q4116 A-2
Q4117 A-3
Q4118 C-3
Q4119 D-1
Q4120 D-2
Q4121 D-2
Q4122 B-3
Q4123 B-3
Q4124 B-2
Q4125 C-3
Q4127 C-3
Q4128 C-3
Q4138 D-2
Q4139 D-2
Q4140 D-2
Q4141 D-2
Q4142 D-2
Q4143 E-2
Q4201 A-3
Q4202 B-4
Q4203 B-4
Q4207 A-5
Q4208 B-5
Q4209 A-5
IC
IC4102 A-1
IC4103 C-2
IC4104 B-2
IC4105 C-3
IC4106 D-1
IC4201 B-7
IC4202 A-4
IC4203 B-5
IC4204 A-6
IC4301 B-5
IC4401 B-7
IC4402 C-5
IC4403 D-6
IC4404 C-4
IC4405 C-7
Q4105 B-2
Q4107 B-1
Q4109 B-2
Q4110 B-2
Q4111 C-1
Q4113 D-2
TRANSISTOR
Q4210 B-5
Q4211 A-5
Q4212 A-3
Q4215 B-5
Q4216 B-5
Q4217 B-4
Q4218 A-4
Q4219 A-4
Q4401 C-4
Q4402 D-4
Q4403 D-4
Q4404 D-3
Q4405 D-3
Q4406 D-4
Q4407 D-4
Q4408 C-3
Q4409 D-7
Q4410 C-6
Q4420 C-4
D4101 B-2
D4400 D-6
Q4134 B-4
Q4135 D-5
Q4136 D-5
Q4137 D-5
Q4144 C-6
Q4145 B-7
Q4146 C-6
Q4204 A-4
Q4205 B-3
Q4206 B-3
Q4213 A-2
D4003 A-5
D4404 D-1
D4405 D-1
IC
IC4101 C-4
Q4101 A-6
Q4102 A-6
Q4106 B-6
Q4108 B-6
Q4112 B-6
Q4126 C-5
Q4129 A-5
Q4130 B-5
Q4131 B-5
Q4132 A-4
Q4133 B-4
TRANSISTOR
P5 BOARD (Conductor Side)
DIODE
