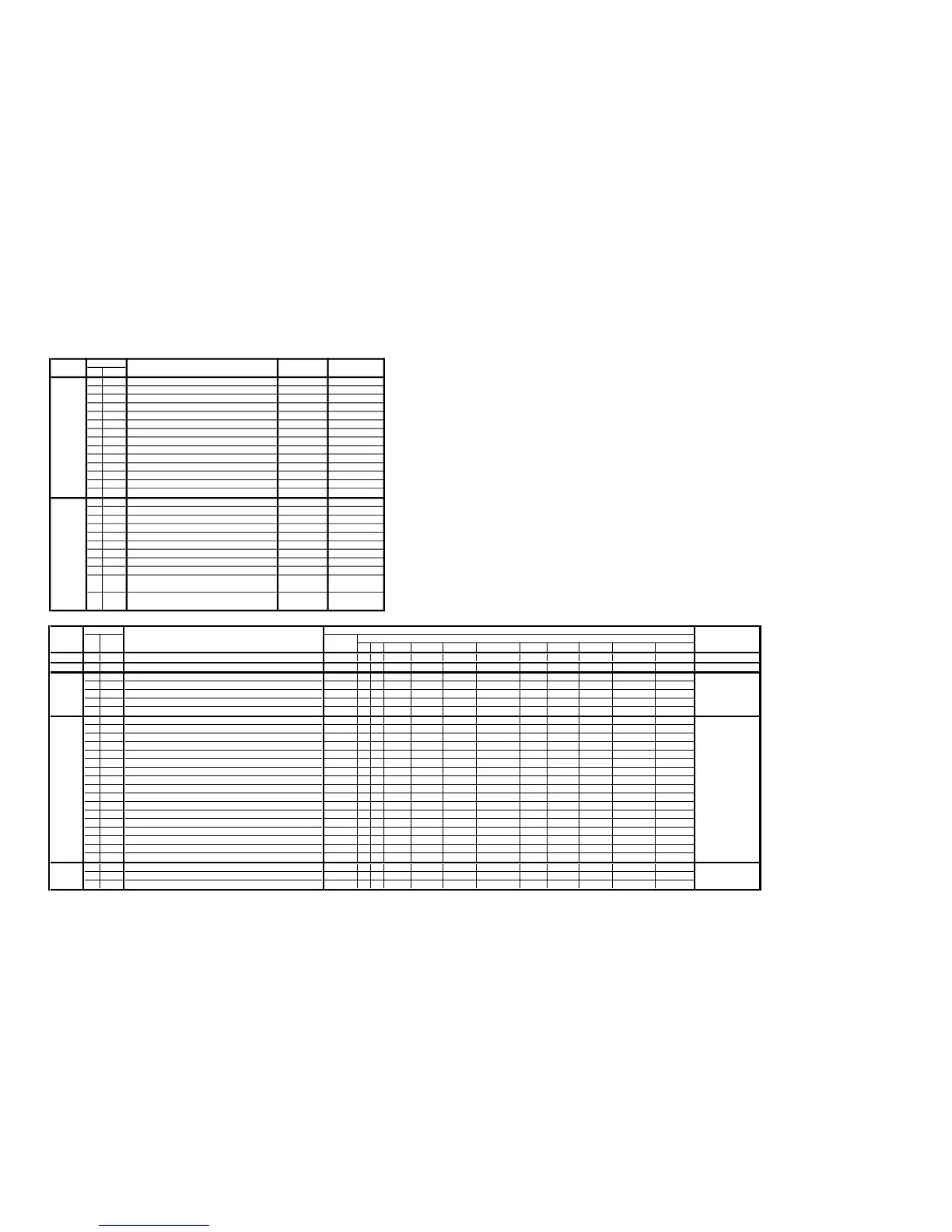

Category Item Function Standard Device Name
No. Name Data (Slave Address)
2CM 00 FUN Function 03 TC90A69 (B2H)
01 YCM Y/C separator 00
02 CNR CNR K 00
03 LIM CNR limit 00
04 CPF C-LPF 00
05 SLP SelC-LPF 00
06 YFO Y-P fo 00
07 YPG Y-EQ Gain 00
08 YPL Y-EQ/ N.C Limit 00
09 CLP Pds.Clip 00
0A YPF Y-LPF 00
0B VEG V-Emph gain 03
0C VEN V-Emph N.L 03
0D VEC V-Emph Core 01
TXT 00 TXH Teletext Horizontal Display Position 29
01 TXV Teletext Vertical Display Position 27 SAA5264(58H)
02 THD Teletext H-sync Active Edge Shift 00
03 TVD Teletext V-sync Active Edge Shift 00
04 HPL Teletext H-sync Polarity Configuration 01
05 VPL Teletext V-sync Polarity Configuration 00
06 FPL Teletext V-sync Polarity Configuration 01
07 FMD Teletext Fastext/TOP Force Mode 02
08 TBR Teletext RGB Brightness 06
09 NOP Teletext National Option Table Configuration 01 (M61/M90)
02 (M91)
01 (M61/M90)
02 (M91)
0A TCH Teletext Twisted Character Set Configuration
Function Standard Data Device Name
No. Name Field Freq (Slave Address)
Common 50 60 100NC R450NC PR50NC HD1080i/50 120NC R460NC PR60NC HD1080i/60 MS-MODE
WID 0 DEC Wide ID DEC 03 03 CXA2157
PJE 0 PJE (PJ-Engine Service Control) CXPxxxxx(6AH)
OSD 00 OSH OSD H Position 0D CXP961F064(60H)
01 OSV OSD V Position 2D 1F 1E 1C 20 1E 1E 0B 1C
02 FW1 OSD ODD/EVEN Field Window Setup #1 07
03 FW2 OSD ODD/EVEN Field Window Setup #2 14
04 OHO OSD H Position Offset for INDEX 04
OPM 00 COM Comb Operation Selection 00 Option Misc
01 APC APC Switch 01
02 TSY TV System Selection under searching with Auto TV System 00
03 MUT No Signal Mute 00
04 AFM Auto FM switch 01
05 TVO V-Angle correction to Picture Rotation 03
06 DBL Disable Blueback function 00
07 SSO Speed CH Search Selection 01
08 SCH CH Selection for Shipping Condition 01
09 SCA Cable/Air Selection for Shipping Condition 01
0A DMG Disable Menu-operation Guide 00
0B VSN Enable Noise Reduction in Video Mode 00
0C RUC RF Signal Change Counter after Unlocked 04
0D RLC RF Signal Change Counter after Locked 04
0E LBB Lower Blue Back Intensity 01
0F 23P 2/3 Pull Down Mode 0: Force OFF, 1: Auto 01
10 MBK MS Background color to gray 00 MS(6eh)
OPB 00 OP1 Optional Bits 1 (see the specified sheet) FB Option-Bits
01 OP2 Optional Bits 2 (see the specified sheet) 17
02 OP3 Optional Bits 3 (see the specified sheet) 07
