PVM-6041OM I

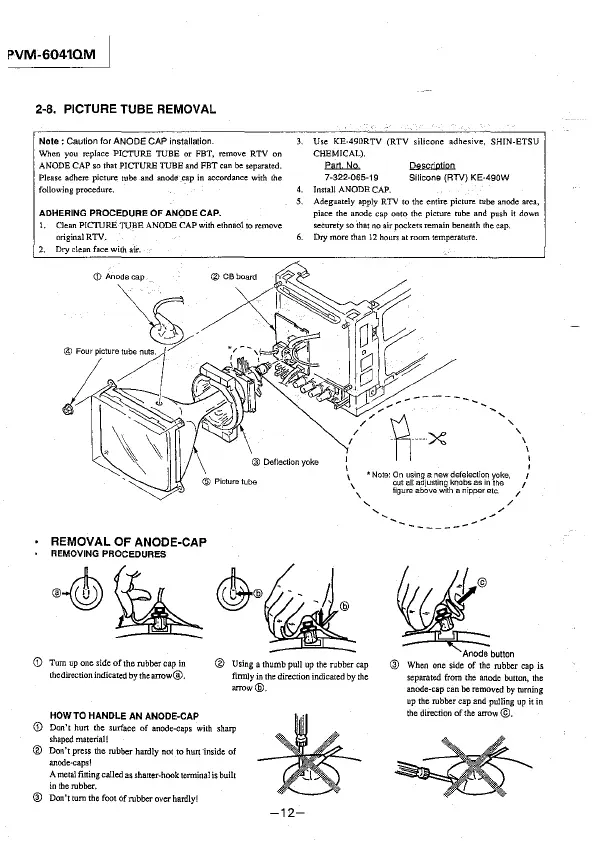

2-8. PICTURE TUBE REMOVAL
Note: Caution for ANODE CAP installation. 3. Use KE-490RTV (RTV silicone adhesive, SHIN-ETSU
When you replace PICTURE TUBE or FBT, remove RTV on CHEMICAL).
ANODE CAP so that PICTURE TUBE and FBT can be separated. .Ear:I.....MQ..
~
Please adhere picture tube and anode cap in accordance with the 7-322-065-19 Silicone (RTV) KE-490W
following procedure. 4. Install ANODE CAP.
5. Adeguately apply RTV to the entire
picture tube anode area,
ADHERING PROCEDURE OF ANODE CAP. piace the anode cap onto the picture tube and push it down
1, Clean PICTIJRE TUBE ANODE CAP with ethnaol to remove securety so that no air pockets remain beneath the cap.
original RTV. 6.
Dry more than 12 hours at room temperature.
2.
Drycleanfacewithair.
REMOVAL OF ANODE-CAP
REMOVING PROCEDURES
I
I
I
I
\
'
'
-x
\
\
'
I
I
* Note: On using a new de/election yoke, /
'
cut all adjusting knobs as in the
1
figure above with a nipper etc.
1
'
',
..,..,,,.,,,/
--@~~tj-
~
~
Aoodebuttoo
G) Tum up one side of the rubber cap in @ Using a thumb pull up the rubber cap @ When one side of the rubber cap is
the direction
indicated by the arrow@. finnly in the direction indicated by the separated from the anode button, the
arrow@. anode-cap can be removed by turning
up the rubber cap and
pulling up it in
HOW TO HANDLE AN ANODE·CAP
G) Don't hurt the surface of anode-caps with sharp
shaped material!
® Don't press the rubber hardly not to hun 'inside of
anode-caps!
A metal fitting called as shatter-hook terminal is built
in the rubber,
® Don'ttumthefootofrubberovcrhardly!
thedirectionofthearrow©.
-12-
