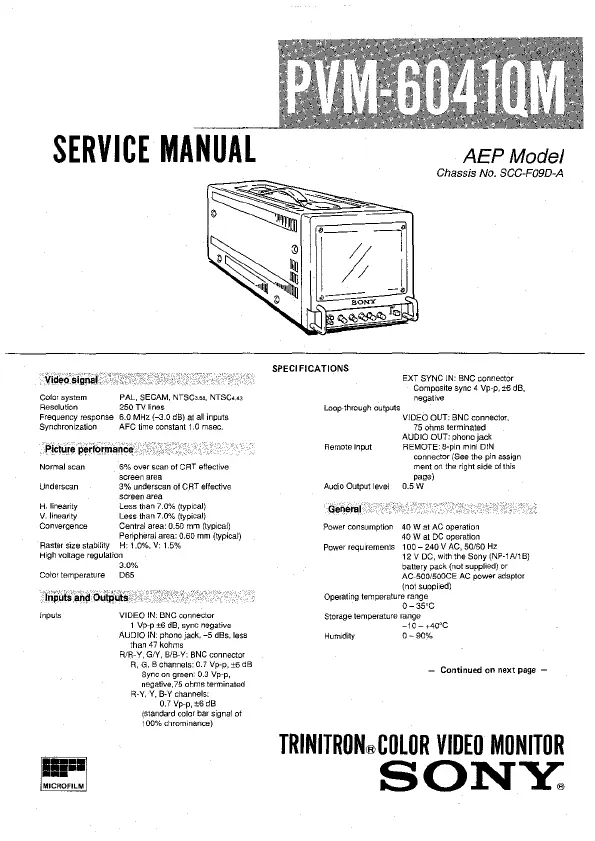

SERVICE MANUAL
Color system PAL, SECAM, NTSC35a, NTSC443
Resolution 250 TV lines
Frequency response 6.0 MHz (-3.0 dB) at all inputs
Synchronization AFC lime constant 1.0 msec.
Normal scan
Underscan
H. linearrty
V. linearity
Convergence
6% over scan of CAT effective
screen area
3% underscanolCRTeffective
screen area
lessthan7.0% (typical)
Lessthan7.0% (typical)
Central area: 0.50 mm (typical)
Peripheral area: 0.60 mm (typical)
Raster size stability H: 1.0%, V: 1.5%
High voltage regulation
3.0%
Color temperature D65
Inputs
MICROFILM
VIDEO IN: BNC connector
1 Vp-p±6dB, sync negative
AUDIO IN: phono jack, -5 dBs, less
than47kohms
RIR-Y, G/Y, B/B-Y: BNC connector
R, G, B channels: 0.7 Vp-p,
±6 dB
Sync on green: 0.3
Vp~p,
negative,75 ohms terminated
R"Y, Y, B-Y channels:
0.7Vp-p,±6dB
(standardcolorbarsignalof
100% chrominance)
SPECIFICATIONS
Loop-through outputs
AEPMode/
Chassis No. SCC-F09D-A
EXT SYNC IN: BNC connector
Composite sync 4 Vp-p,
±6 dB,
negative
VIDEO OUT: BNC connector,
75 ohms terminated
AUDIO OUT: phono jack
Remote input REMOTE: 8-pin
mini DIN
connector (See the pin assign
mentonthe right side
of this
page)
Aud10Outputlevel 0.5W
General
Power consumption 40 W at AC operation
40 W at DC operation
Power requirements 100- 240 V AC, 50/60 Hz
12
V DC, With the Sony (NP-1N1B}
battery pack(nolsupplied)or
AC-500/500CE AC power adaptor
(not supplied)
Operating temperature range
0-35°C
Storage temperature range
-10-+40°C
Humidity
0-90''/o
- Continued on next page -
TRINITRON®COLOR VIDEO MONITOR
