Reception
channel
group and
number
Reception
frequency
Press
the
SET
button.
AF
RF
CH
A
B
C
2 RF (radio frequency) indicator
The color indicates the strength of the
RF input signal.
On in green: RF input is 25 dBµ*
or more.
Off: RF input is less than 25 dBµ*.

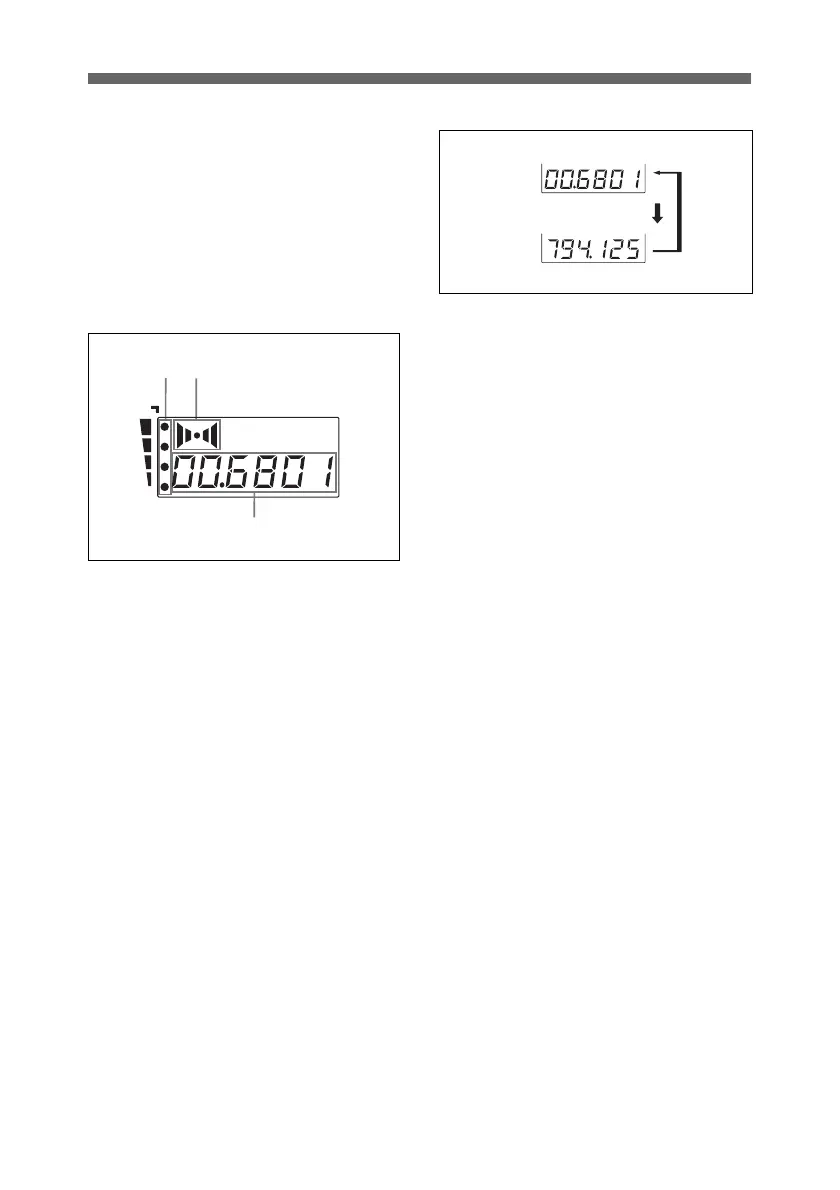

3 Display section
A RF (radio frequency) indications
The number of dots indicates the RF
input level.
B AF (audio frequency) indication
Appears whenever the output audio
signal is stronger than the reference
level.
C GP (group)/CH (channel)
indication
Shows the reception channel group
and channel number. Each time you
press the SET button, the channel
indication changes as follows.
For details, see “Settings” on page
47.
......................................................................................................................................................................
* 0 dBµ = 1 µVEMF
4 + (+ selection) / – (– selection/
reset) buttons
Press these buttons to set the reception
channel and frequency.
