Specifications
Transmitters (UTX-B1/
H1/P1)
Items common to all
transmitters
Oscillator type
Crystal-controlled PLL
synthesizer
Carrier frequencies
Model available in USA:
758 to 806 MHz
Model available in Europe:
798 to 862 MHz
Model available in
Australia: 792 to 806
MHz
Operating frequency band
Model available in USA
and Europe: 24 MHz BW
Model available in
Australia: 14 MHz BW
Pre-emphasis
50 µs
Frequency characteristics
50 Hz to 18 kHz
Signal-to-noise ratio
60 dB or more
Tone signal
32 kHz
Attenuation
0 to 21 dB, in 3-dB steps
Display Channel, frequency, audio
level, RF level,
accumulated battery use
time
Power requirements
3.0 V DC (two LR6/AA-
size alkaline batteries)
Battery life
Approx. 6 hours (measured
with two Sony LR6/AA-
size alkaline batteries at
25°C (77°F), with output
power of 30 mW (UTX-
B1/H1) or 50 mW (UTX-
P1))
Body-pack transmitter
(UTX-B1)
Antenna 1/4λ wave length wire
Audio input connector
3.5-mm dia. mini jack
Audio input level
–60 dBV to –39 dBV
RF output level
30 mW/5 mW selectable
Reference deviation
±5 kHz
Distortion
1.0% or less
Indicator Power on

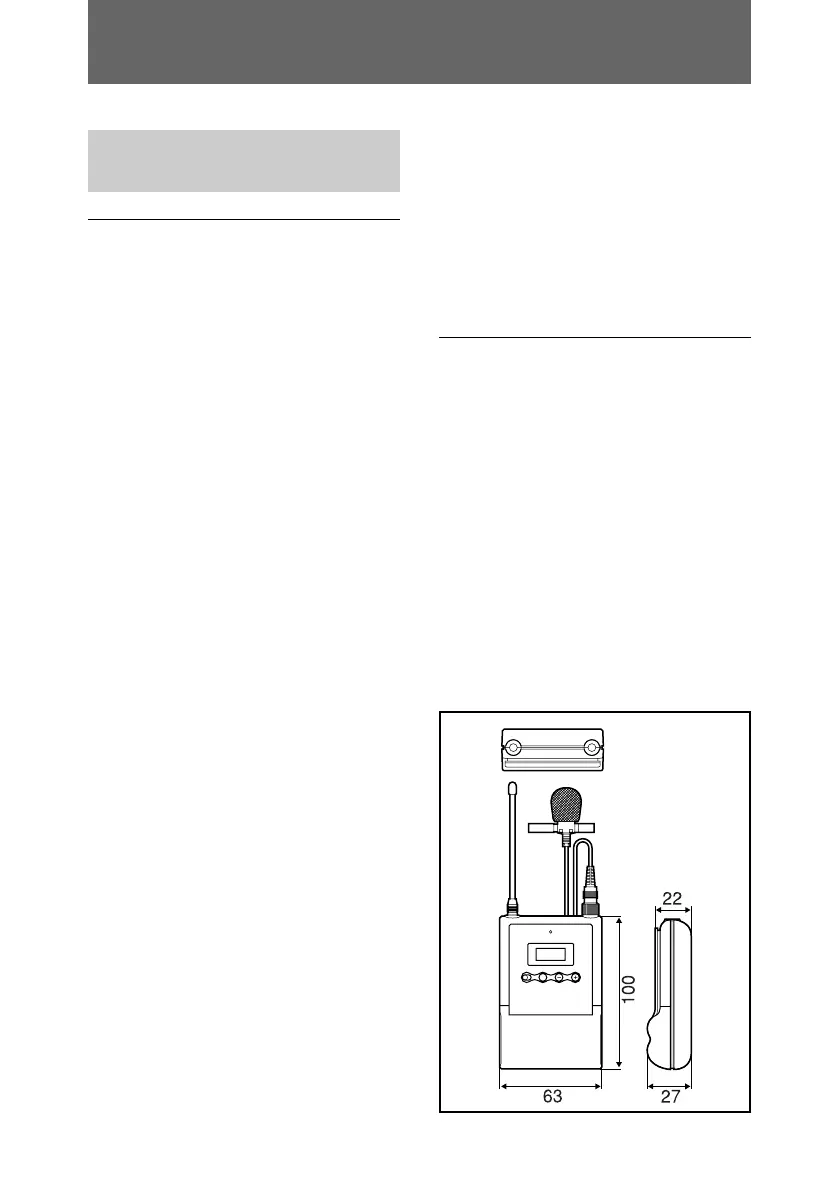

Dimensions
