Attachment and Installation Procedures
46
Installing a diversity tuner
module (URX-M1) into an
SRP-X700P Powered Mixer
The SRP-X700P Powered Mixer can
accommodate up to 2 diversity tuner
modules (URX-M1).

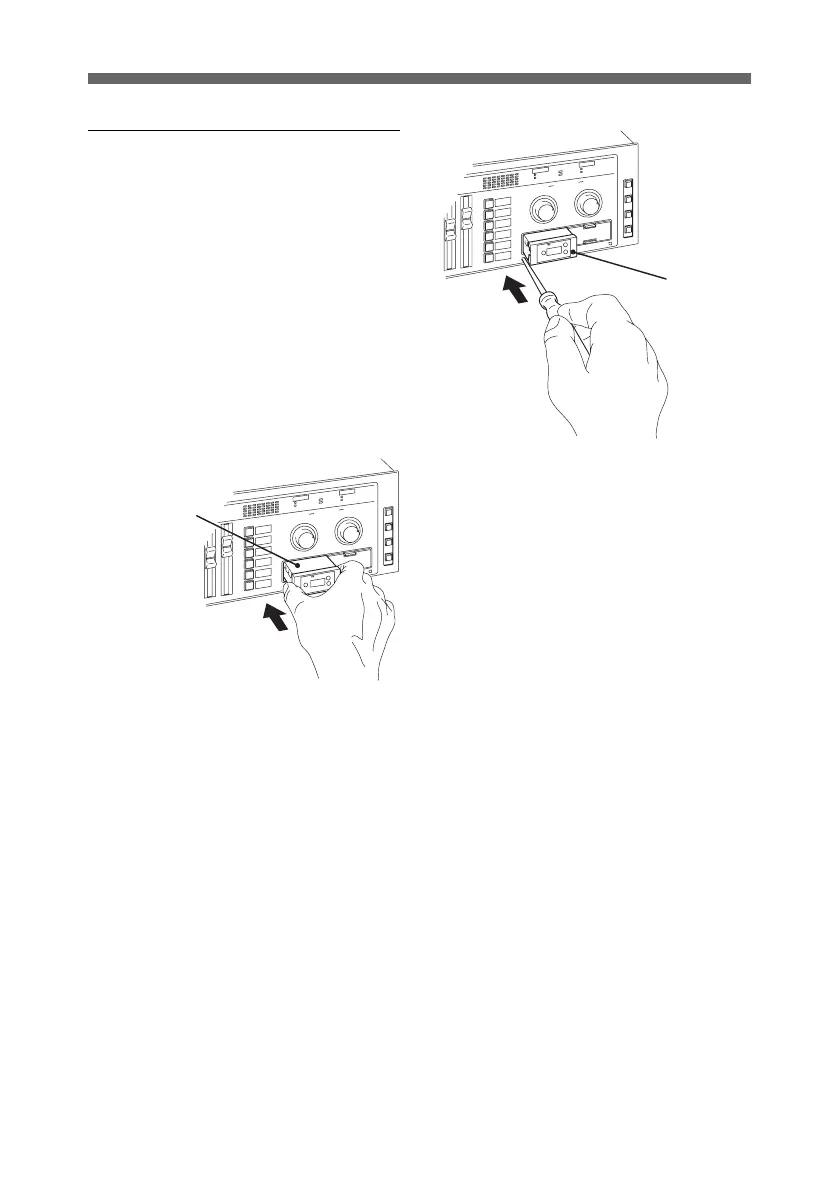

1 Remove the tuner slot cover from
the SRP-X700P and inspect the
top and bottom sides of the
diversity tuner module. Then,
holding the tuner module on both
sides, insert it into the slot.
MASTER
S
C
E
N
E
R
E
C
A
L
L
GP
A
F
R
F
G
P
C
H
B
A
T
T
LINE 4 SELECT
A
A
B
C
D
E
F
B
Removing the diversity tuner
module (URX-M1)
Insert a screwdriver with a shaft
diameter of between 2 to 4 mm and a
shaft length of 30 mm or longer into
the hole under the lower part of the
tuner slot and remove the tuner
module.
Diversity
tuner module
(URX-M1)
Diversity
tuner
module
(URX-M1)
