Connecting and Setting Up the DTV
18

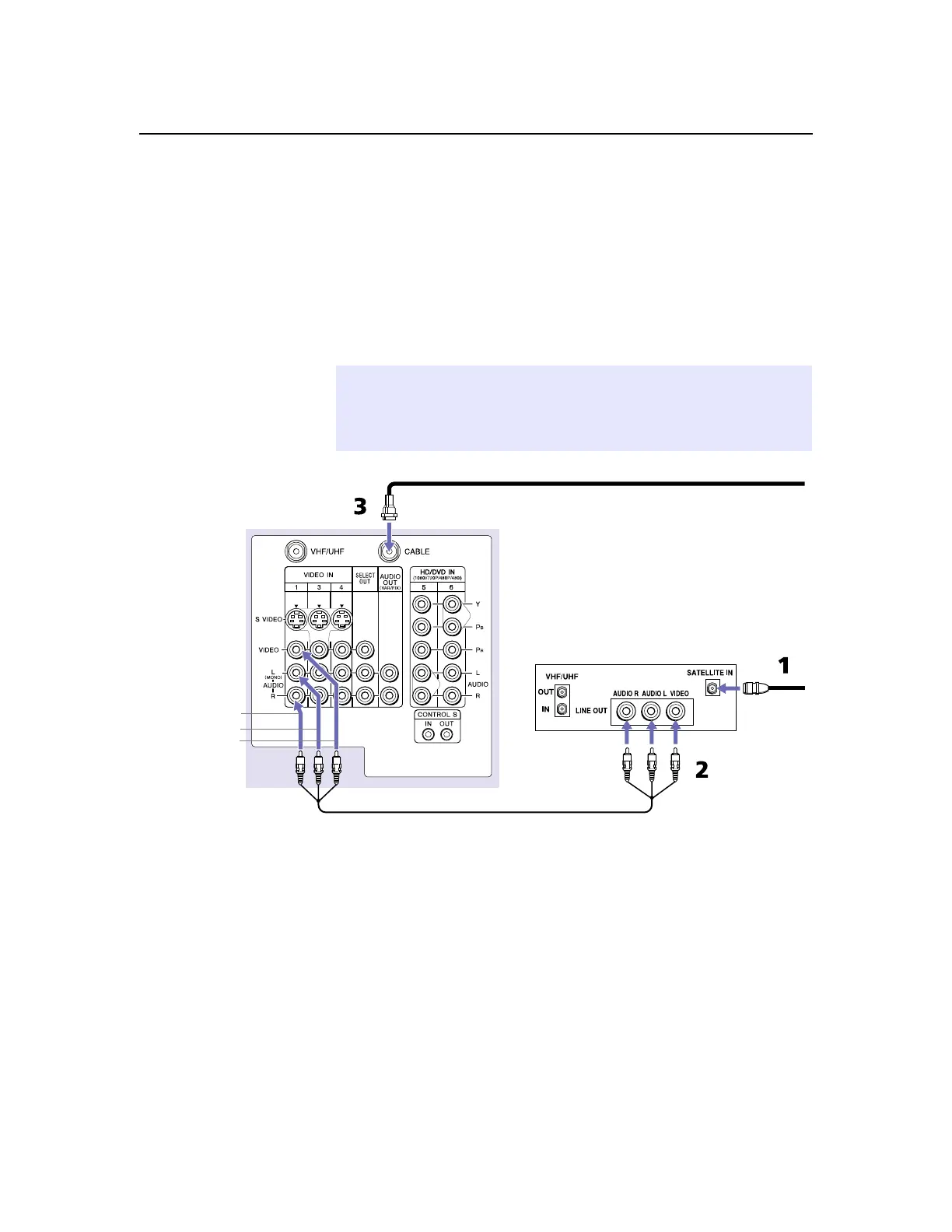

Connecting a Satellite Receiver
1
Connect the satellite antenna cable to the satellite receiver’s
SATELLITE IN jack.
2
Using an A/V cable, connect the satellite receiver’sAudioand
VideoOUTjackstotheDTV’s Audio and Video IN jacks.
3
Connect a coaxial cable from your cable or antenna to the DTV’s
CABLE jack.
✍ If the receiver you are connecting has an S VIDEO jack, you can use an S VIDEO
cable for improved picture quality (compared to a combination audio/video
cable). Because S VIDEO cables carry only the video signal, you will also need
audio cables for sound.
DTV
Satellite receiver
Satellite
cable
A/V cable
Coaxial
cable
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
antenna
